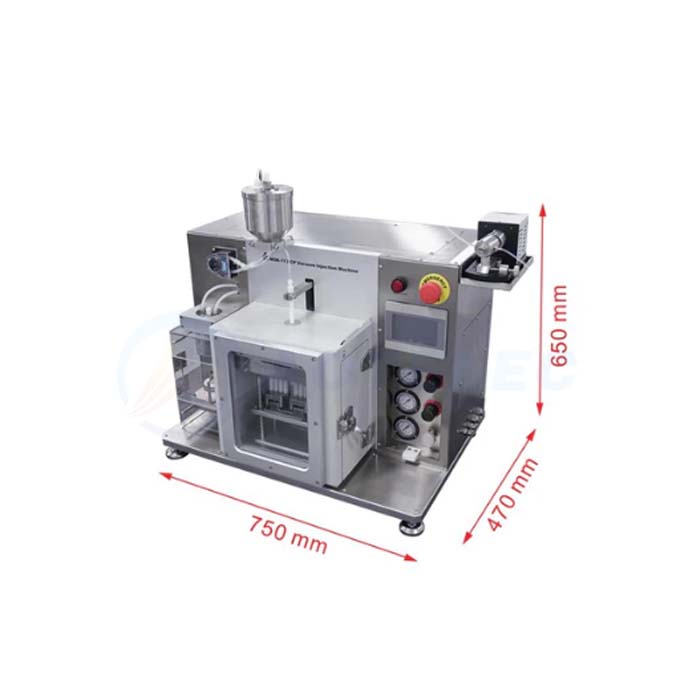

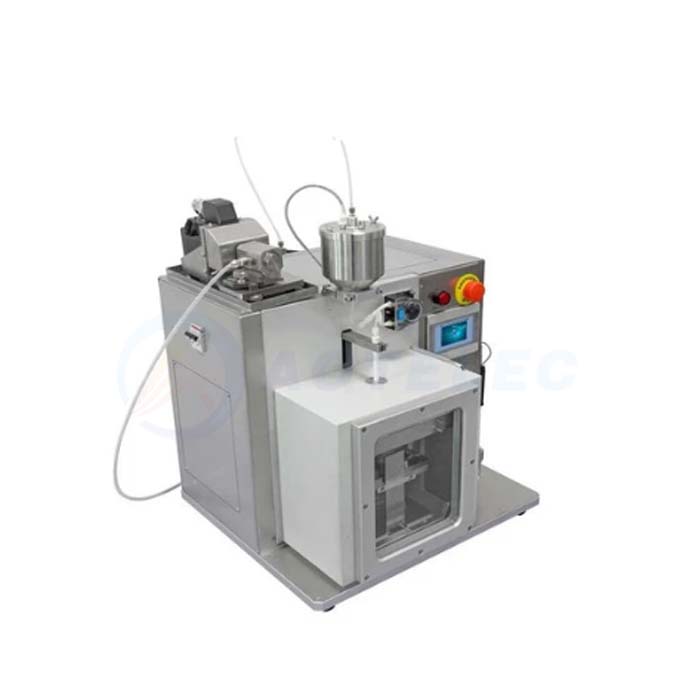

Compact vacuum liquid injection machine for pouch and cylindrical batteries, capable of vacuum liquid injection for both types of batteries, integrates sealing, liquid injection and static placement functions, supports operations at different vacuum levels, with liquid injection accuracy of 1%, speed and volume can be adjusted via touch screen, suitable for various battery sizes, facilitating efficient and precise liquid injection in battery production.
Advanced Features
Vacuum liquid electrolyte injection for both pouch and cylinder cell batteries with the programable setting via the touchscreen controller.
Input Power
Either AC110 V or AC 208 - 240 V, 50/60 Hz Single phase [Customer can choose the voltage before purchase]
Working Gas
0.5 - 0.8 Mpa high purity compressive inert gas (Ar is preferred) is required for driving the pneumatic system in the glove box
Electrolyte Dispenser
An electrolyte plunger metering pump is included for precise electrolyte filling; Injection Accuracy: 1%
Pouch & Cylinder Cell Size Adaptability
Pouch cells: Max. L 180 mm * W 180 mm * H 12 mm
Pouch cell vacuum sealing, electrolyte injection, vacuum standing three - in - one design.
Cylinder cell vacuum electrolyte injection, vacuum standing, electrodes immerging under pressure
It could be used either in or outside of the glove box
Electrolyte injection speed adjustable
The electrolyte filler with a speed control console and injection pump for the high - precision dispensing is integrated into the system
Electrolyte injection could be done under different vacuum levels in order to achieve a better electrode immersion
Compact & desktop; One unit with PLC control
Power: 1.2 KW
Continues dry inert gas purging for the working chamber is required to maintain a dry atmosphere for electrolyte injection and diffusion
Air compressors and fitting are required if used in the dry room, but not included. please click here to order
Attention: If a gas cylinder is used instead of an air compressor(pic2), a two - stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator
During the electrolyte injection and vacuum standing under the vacuum, The liquid electrolytes would be vaporized. Please consider refilling the electrolyte if necessary
Electrolyte filling volume and injection rate adjustable via touch screen PLC control
The customized electrolyte injector with multiple channels (to avoid cross - contamination) is available upon request.
Cylinder cells: 4680
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
