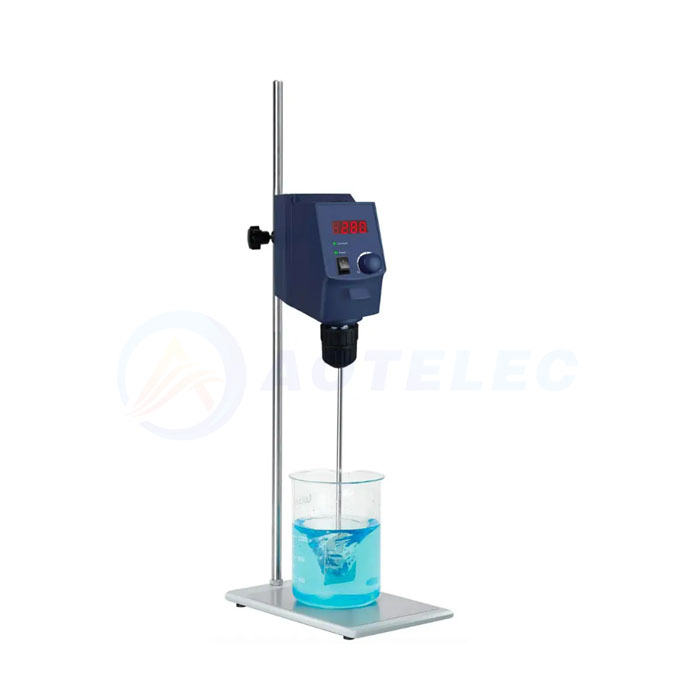

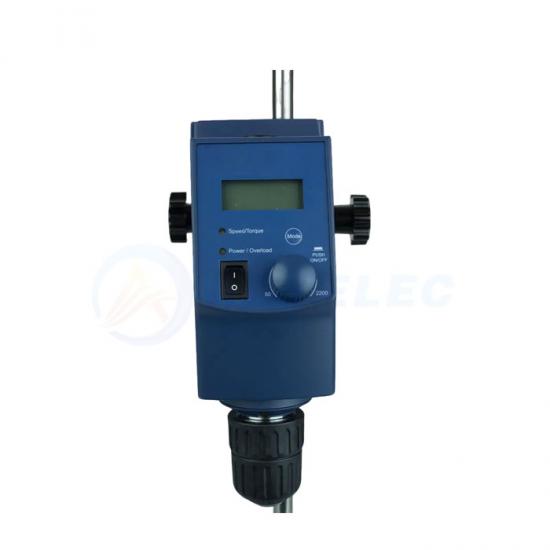

The Lab Supplies Overhead Stirrer can precisely control and clearly display parameters such as rotational speed and operating duration. Brushless DC motor drive, with a wide speed regulation range and stable torque, is suitable for various experimental systems and helps with precise stirring operations.
Specifications
OS20 - S
OS40 - S
Max. stirring quantity[H₂O]
20L
40L
Speed range
50 - 2200rpm
50 - 2200rpm
Max. torque
40N·cm
60N·cm
Viscosity max.
10000mPa·s
50000mPa·s
Motor type
Brushless DC motor
Brushless DC motor
Chuck range diameter
0.5 - 10mm
0.5 - 10mm
Motor input power
60W
120W
Motor output power
50W
100W
Power
70W
130W
Voltage,Frequency
100 - 240V, 50/60 Hz
100 - 240V, 50/60 Hz
Dimension[WxHxD]
83 x 220 x 186mm
83 x 220 x 186mm
Protection class
IP21
IP21
Weight
2.8kg
2.8kg
Permissible ambient temperature and humidity
5 - 40℃, 80%RH
5 - 40℃, 80%RH
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
