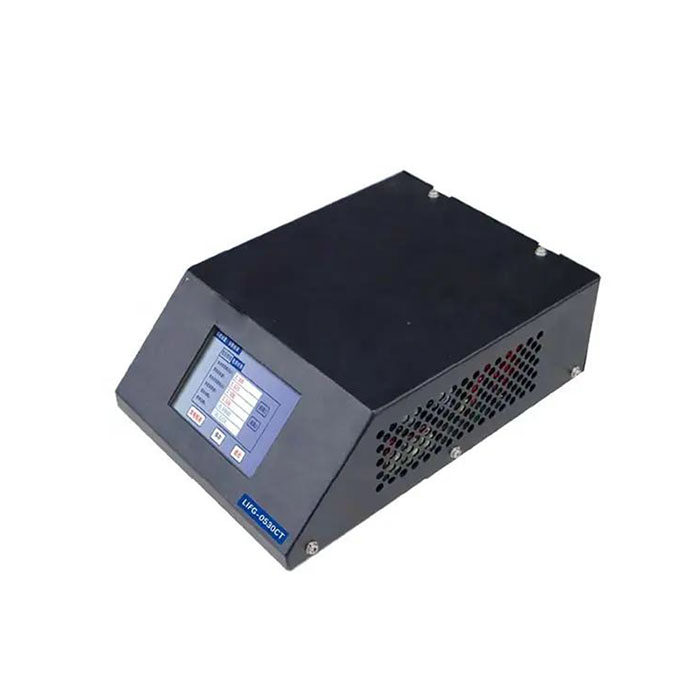

AOT-LIFG-0530CT: During the testing process, real-time monitoring of battery voltage and current, and calculation of accumulated charging/discharging power can quickly and accurately maintain batteries with significant voltage drop in the lithium battery module. Suitable for maintenance and testing of various types of lithium batteries.
1. Widely Applicable: suitable for maintenance testing of various types of lithium batteries such as lithium iron phosphate, ternary lithium and lithium titanate series
2.* Efficient Maintenance: the constant current charging and discharging mode is adopted, the maximum charging and discharging current can reach 30A, and the portable design improves maintenance efficiency
3.Easy to carry: the tester is small in size, light in weight, and easy to carry
4. Presetting Function: provides equalization test parameter preset function, simplify the operation and speed up the test.
5. 3.5 inch LCD Touch Screen: for easy operation and showing various parameters real time
6. Pause Function: supports manual pause during the test, and the test can be continued after adjusting the parameters, without the need to terminate the test
7.Protection: supports various testing thresholds to avoid cells over charging or over discharging, ensuring battery and tester safety
|
Product Name |
Lithium Battery Single Maintenance Tester |
|
Model |
AOT-LIFG-0530CT |
|
Working Voltage |
AC100-264V @50Hz |
|
Voltage Range |
1.0-4.5V |
|
Voltage Accuracy |
±0.2%FS+5mV@5V |
|
Discharge Current |
1.0-30A ±0.5%FS+0.1A@30A |
|
Charging Voltage |
1.0-4.5V |
|
Charging Current |
1.0-30A ±0.5%FS+0.1A@30A |
|
Display |
3.5 inch LCD touch screen |
|
Communication |
RS485 |
|
Protection |
DC input over voltage, polarity reversal, discharge over current, over temperature |
|
Dimension (mm) |
230*155*75 |
|
Weight (kg) |
2 |
