*Product Overview

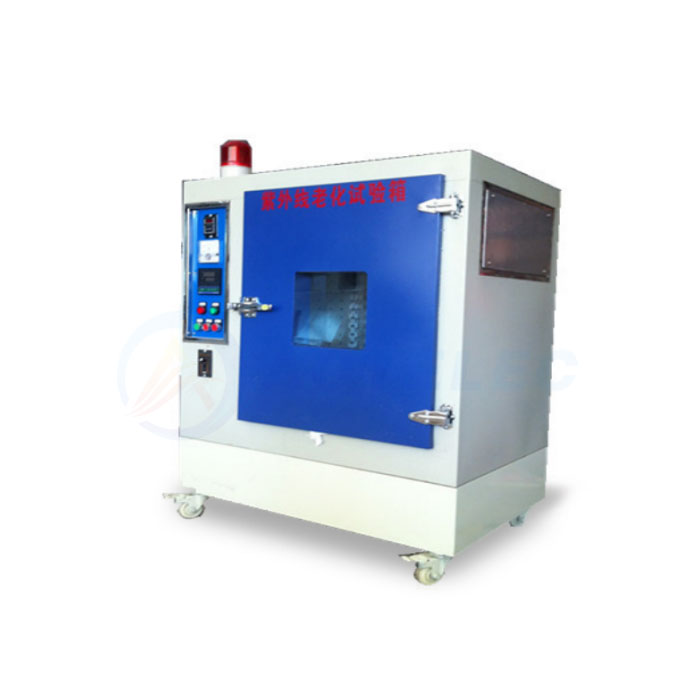

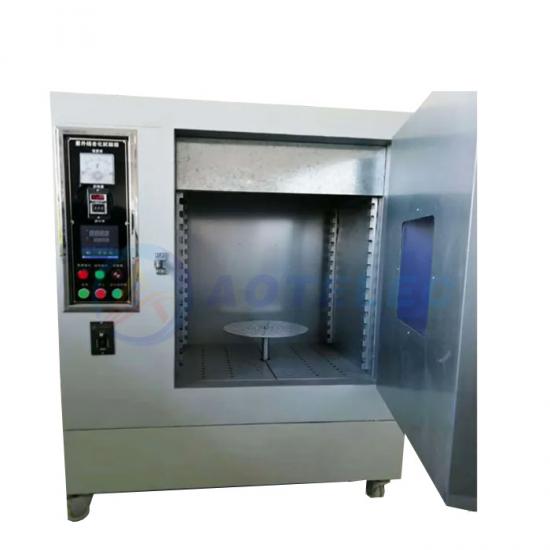

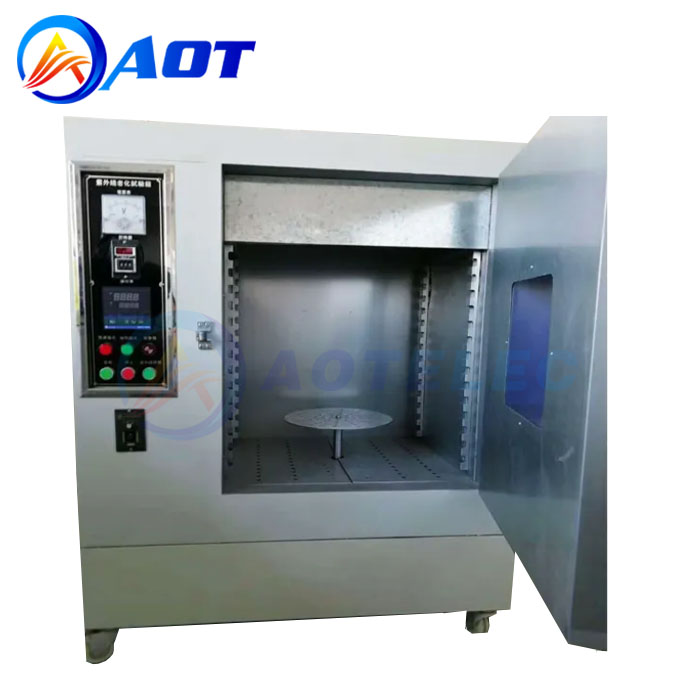

The UV irradiation test chamber is suitable for simulating the UV radiation and heat of sunlight. The sample is exposed to UV radiation and temperature inside the machine. After a period of time, the degree of change of the sample can be observed, and the stained gray mark can be used as a reference
*Product Usage:
Used for UV accelerated testing of materials (generally, testing the material in this box for 3 hours at 70 ℃ is equivalent to 2 months of aging results in the natural environment). Pollution gray scale can be used as a reference to determine the aging level of materials. You can also visually assess the degree of aging of the material
*Parameters
|
Item Name |
UV Aging Chamber |
|
Model |
AOT-UV-640 |
|
Source voltage |
AC 110V-220V AC 50Hz/60Hz |
|
Power |
2000W |
|
Temperature range |
RT+10℃~70℃ |
|
Temperature uniformity |
±1℃ |
|
Temperature fluctuation |
±0.5℃ |
|
Light tube |
6PCS X 40W |
|
Ultraviolet wavelength |
360 um |
|
Inner dimension |
W600 x D500 x H750mm |
|
Overall dimension |
W1000 x D700 x H1200mm |
|
The above standards: under normal pressure, no-load, and no-load conditions |
|
*UVA Lamp (Detailed Explanation)
Abbreviated as UVA. It is ultraviolet light with a wavelength of 320-420nm. Long wave ultraviolet radiation has much stronger penetration through clothing and human skin than medium wave ultraviolet radiation. It can reach deep into the dermis and act on melanin in the epidermis, causing melanin deposition and darkening of the skin. It plays a role in defending against ultraviolet radiation and protecting the skin. Therefore, long wave ultraviolet rays are also known as the "tanning segment". Although long wave ultraviolet radiation does not cause acute inflammation of the skin, its effect on the skin is slow and can accumulate for a long time, which is one of the causes of skin aging and serious damage.
Ultraviolet radiation is divided into near ultraviolet UVA, far ultraviolet UVB, and ultra short ultraviolet UVC according to wavelength. The degree of penetration of ultraviolet rays into human skin varies. The shorter the wavelength of ultraviolet rays, the greater the harm to human skin. Short wave ultraviolet rays can penetrate the dermis, while medium wave ultraviolet rays can enter the dermis.
