Compact Lab Vacuum Mixing Machine with Two Small Containers

This Compact Vacuum Mixer Machine with vibration stage and two containers, which is mainly used for the mixing battery raw materials in laboratory.
  • Item NO.:

    AOT-SFM-7
  • Lead Time:

    8-20days
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen, China
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

Laboratory Compact Vacuum Mixing Machine with 150ml and 500ml Containers


FAQ:


Q: Is the vacuum pump built in or extra connected?

A: The vacuum pump is equipped on the mixing machine, you can use vacuum function directly.


Q:What’s the size of the mixing jar?

A: We will provide two mixing tanks for you, which is 150ml (stainless steel tank) and 500ml(Aluminum tank) capacity.


Q:Do you have quality/security certificate?

A:Yes, it has ISO9001 and CE certificate. We can also doing other certificates for you accordingly.


Q: Can we use it in 110V power supply countries?

A: Yes, it can be used in most of country in the world.


Brief Introduction:

AOT-SFM-7 Vacuum Mixer Machine with vibration stage, which is mainly used for the mixing battery raw materials in laboratory. This vacuum mixer is a high-efficiency equipment that integrates vacuum mixing, agitating and vibrating functions. It is suitable for mixing and stirring a small amount of battery cathode and anode electrode slurry during lithium battery experiment process. Since the agitation is completed in a vacuum state, no bubble is generated.


Features:

1. Vacuum stirring, no bubbles;

2. High vacuum degree, large stirring force and adjustable amplitude;

3. Good sealing performance;

4. Built-in oscillator,one machine for dual-use.

Basic Parameters:

Product Name

Vacuum Mixing Equipment AOT-SFM-7

Working Voltage and Frequency

AC 220V/110V,50HZ/60HZ ±10%

Power

150W

Rotational Speed

320rpm

Container Capacity

150ml stainless steel tank & 500ml Aluminum tank (other 304 stainless steel mixing jar can be customized)

Vacuum Value

0.8~0.9Bar

Oscillation Mode

stepless speed variation

Vacuum pump

Built in single stage vacuum pump

Stirring Time

0-99min adjustable

Dimensions(L*W*H)

330mmx310mmx510mm

Net Weight

About 28KG

Warranty

One year limited with lifetime support

Application Note

The main duty of this product is to remove the bubbles from the slurry during the wet mixing stage. For the best mixing uniformity, please select our professional planetary mixer AOT-PVM-500.


For best slurry, you may consider ordering filter to remove larger particles in slurry

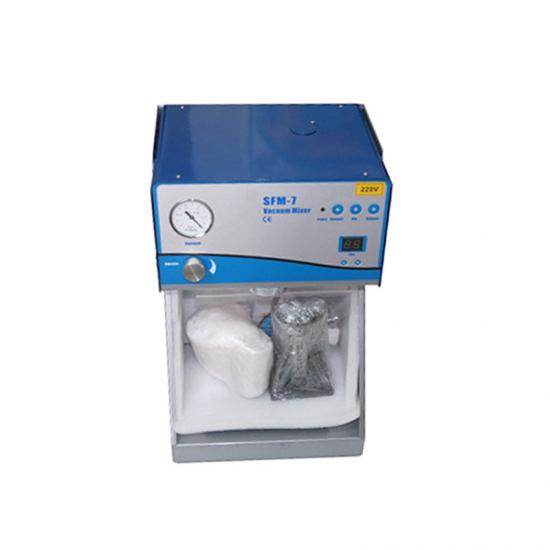

Lab small mixer machine for battery material mixing

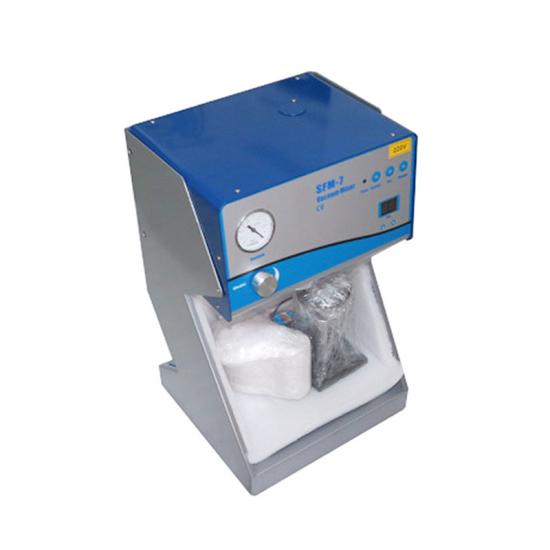

Compact Vacuum Mixer machine with Vibration Stage

AOT-SFM-7 Vacuum mixer mixing blade

Compact Vacuum Mixing machine with optional mixing jar

Lab Vacuum mixer AOT-SFM-7
