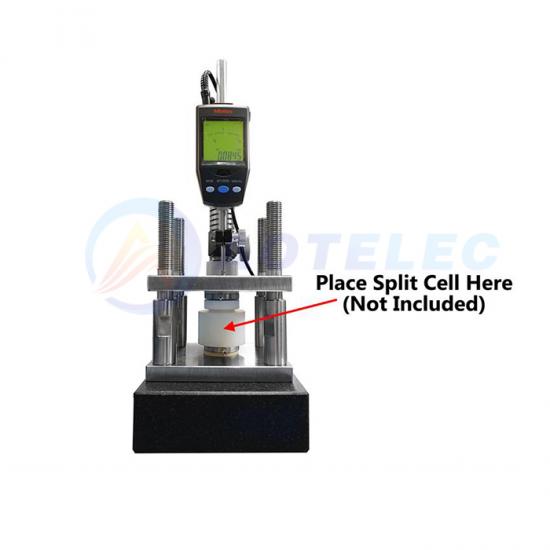

The precision thickness checker EQ-PTC-TEM is designed for battery volume expansion measurement within +/- 0.5-micron accuracy. It is a cost-effective tool for studying the battery electrode's volume expansion and the critical pressure to stop battery expansion.
|
Structure |
One mechanical jig with a precision base plate is included One precision digital micrometer (made in Japan) is included
|
|
Mechanical Jig |
The mechanical jig works with both coin split cell and pouch split cell Central space is 90 mm L x 70 mm x 150 mm H Customized size is available upon request Deadweight for weighing down the top plate weight is optional. You may add dead weight on the top plate or use a torque wrench to tighten the holding screws to find the critical pressure needed to confine the battery volume expansion |
|
Micrometer |
· Digital micrometer: 0.5 micron resolution (0.0005 mm) · Range: 1.2" (30.5 mm) · Accuracy: 0.0015 mm · Power supply: 6 V DC via a 100 - 240 V AC adapter · Operating temperature: 0 - 40 °C
|
|
Dimension |
· 155 mm L x 200 mm W x 300 mm H |
