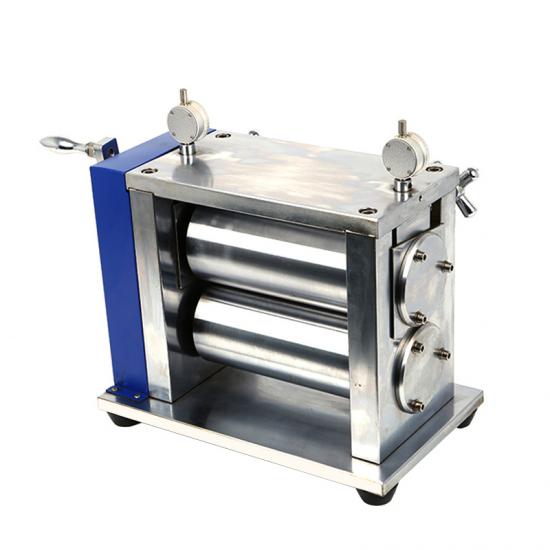

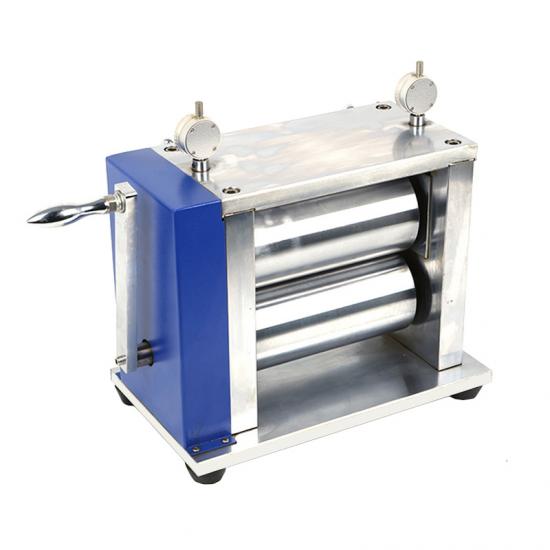

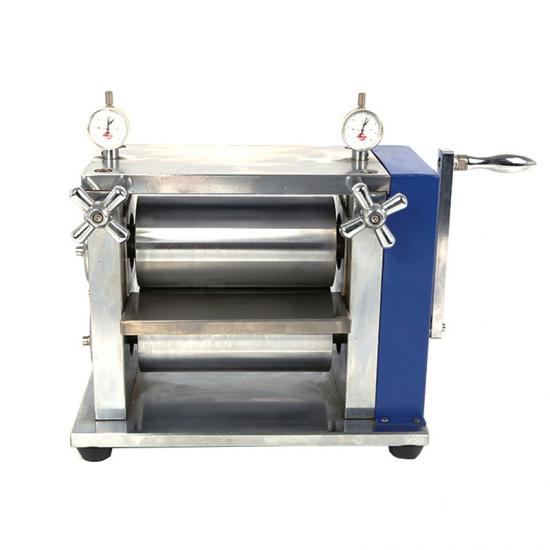

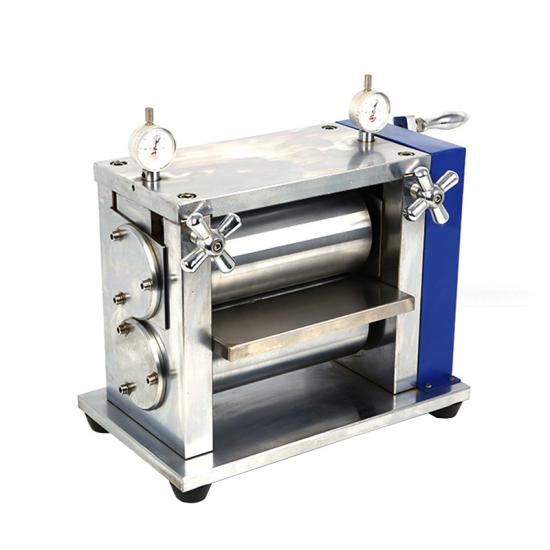

This is manual rolling press machine which used for pressing battery materials, a few precious metal materials like gold and silver, nonferrous materials like copper and aluminum for lab .The rolling thickness can be regulated, it is easy to operate.
Features :
1. Hard chrome plated on surface.Material HRC62.
2. Transparent protective plate is designed for safety operation .
3. Press gap is adjustable .
4. Rolling speed , press thickness is adjustable .
|
Model |
100mm Width Manual Rolling Press Machine AOT-MRP-100 |
|
Warranty |
One year limited manufacture warranty with lifetime support |
|
Structure |
1 Heavy duty steel frame, gears and handle |
|

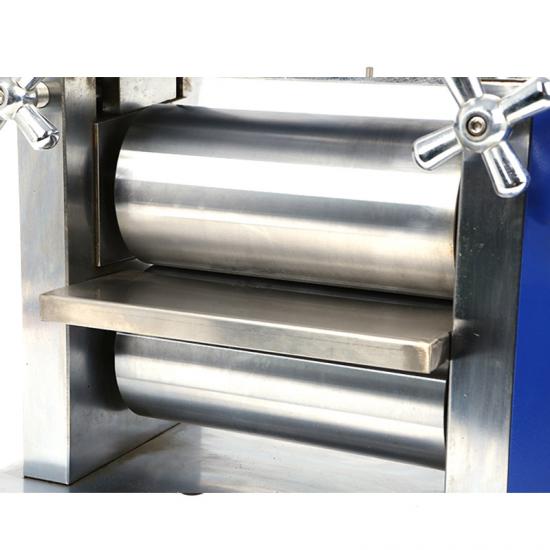

2 Dia.96mm * Dia. 100mm width Rollers made from hardened tool steel (HRC > 60) with Cr electroplated coating |
|
|
3 Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum |
|
|
Roller |
Dimensions: 96mm(Dia.) x 100mm(W) |
|
Material: Made from hardened tool steel (HRC > 60) |
|
|
with Cr electroplated coating. With finish > 0.8 |
|
|
Rolling press accuracy |
≤±0.005 |
|
Rolling press thickness |
0-2mm adjusted with Dial gauge |
|
Rolling press width |
Max 100mm |
|
Product Dimensions |
350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14") |
|
Weight |
45kg (100 lbs) |
|
Application Notes |
This roller is specially designed for battery R&D in terms of its advantages as affordable,compact and precise. |
|
1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting |
|
|
2 Coated Rust-proof oil if machine were to be unused for a long period of time |
|
|
3 The minimum thickness of the rolled sheet should depend on the physical property of the materials. |
|
|
Sample testing is available upon customer's request |
