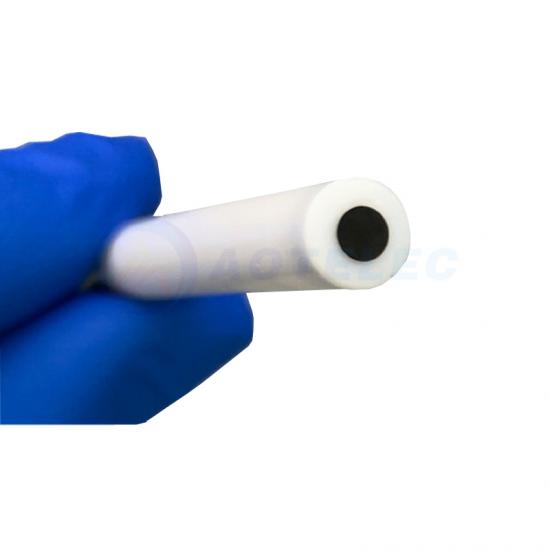

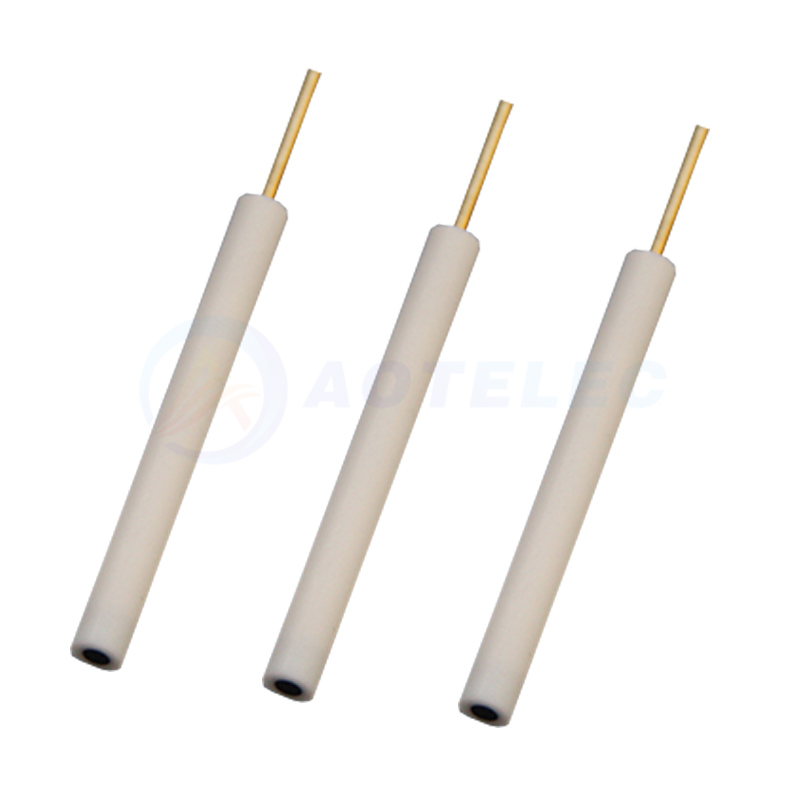

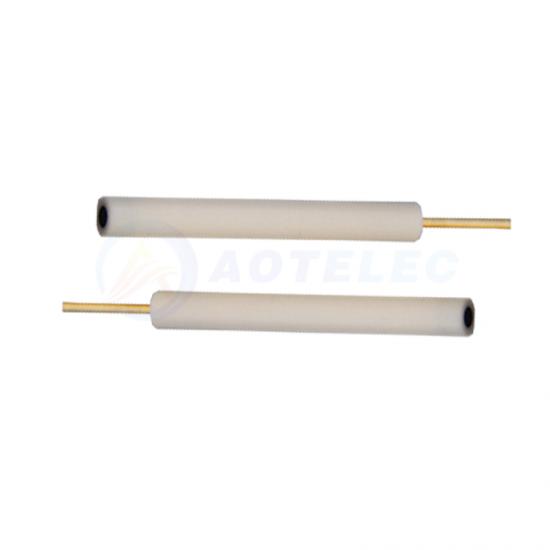

High Quality Glassy Carbon Electrode GCE for Lab Battery Experiment
The glassy carbon electrode is abbreviated as glassy carbon electrode, which slowly heats polyacrylonitrile resin or phenolic resin to high temperature (up to 1800C) in an inert atmosphere to form glass-like amorphous carbon, which is suitable for electronic conductor materials for electrodes.
The advantages of glassy carbon electrodes are good electrical conductivity, high chemical stability, low thermal expansion coefficient, hard texture and good air tightness. The potential application range is wide (from -1 to 1V, relative to the saturated calomel electrode), and it can be made into cylindrical, disc and other electrode shapes. It can also be used as a substrate to make mercury film glassy carbon electrodes and chemically modified electrodes. It has been widely used in electrochemical experiments or electroanalytical chemistry.

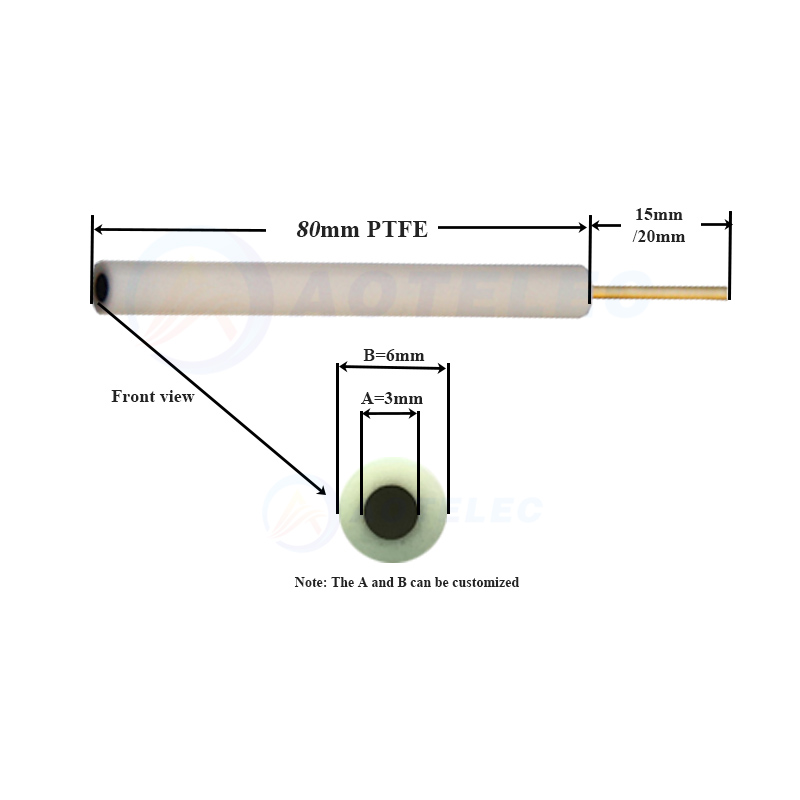

The product size (Acquiescent size is 3mm)
|
|
Glass carbon inner core diameter |
PTFE Size (Dia.* L) |
Copper connector(Dia.*L) |
|
1. |
2mm |
6mm*80mm |
2mm*15mm/20mm |
|
2. |
3mm |
6mm*80mm |
2mm*15mm/20mm |
|
3. |
4mm |
8mm*80mm |
2mm*15mm/20mm |
|
4. |
5mm |
8mm*80mm |
2mm*15mm/20mm |
|
5. |
6mm |
10mm*80mm |
2mm*15mm/20mm |
Suggested remarks: Try to avoid ultrasonic cleaning for glassy carbon electrodes. , If the data is incorrect, it can be repaired by polishing and polishing.
