AOT-EQ-STC-BEW battery can accommodate electrodes and separators of various sizes (diameter 19, 20, and 24mm). It is designed for simple and rapid assembly testing of rechargeable battery electrode materials.
|
Product Name |
Split Test Cell with Be Window |
|
Max. Cell Thickness |
Cathode + Separator + Anode: 5mm |
|
Working Temperature |
Max.250°C |
|

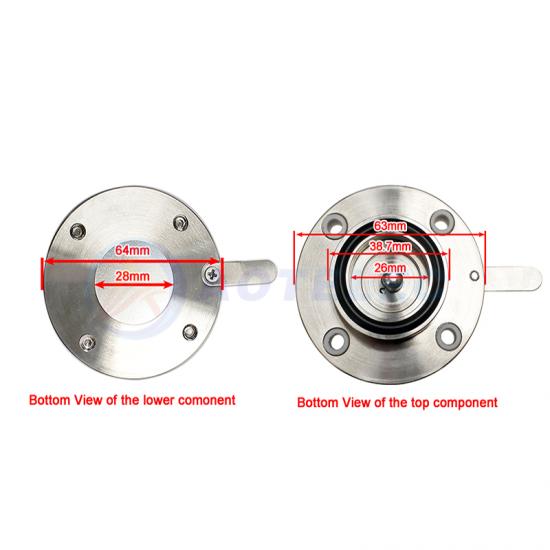

Dimension |
Height: 47mm min. without load Diameter: 64mm (widest diameter without lead) Lead-exposed length: 12.6mm Beryllium (BE) Window: 35mm Dia. x 0.15mm thick |
|
Be Observation Window |
Beryllium (BE) Observation Window allows the X-Ray beam penetration XRD Diffraction Angle (2θ) for 20 & 24 mm I.D. Sleeves: 5°~170° |
|

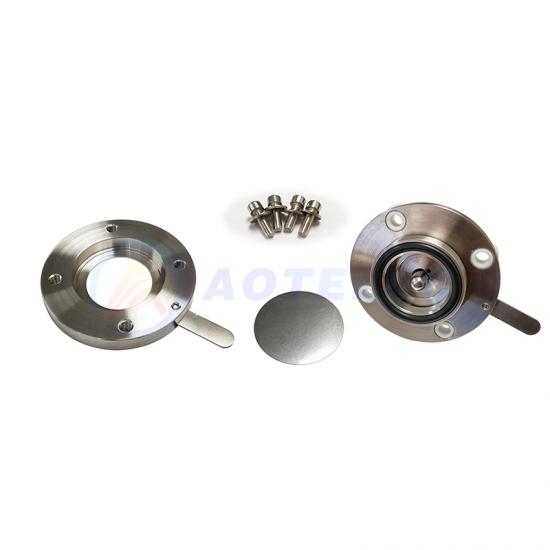

Materials |
Stainless Steel constructed body and pressing plate Beryllium (Be) Window PTFE Sleeve PTFE O-rings SS Hex Screws |
|
PTFE Sleeve Size Option |
PTFE (white) sleeve around a stainless steel pressing pad. PTFE sleeve I.D.: 19, 20, and 24 mm PTFE sleeve O.D.: 29 mm |
|
Main Features |
1.Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC 2.Sealed by electrolyte corrosion-resistant PTFE O-rings 3.Slim design allows the operation inside of the glove box 4.Easy to assemble, separate or clean after the completion of each experiment 5.Same functionality as "Swagelok Coin Cell" but with more size options for electrodes |
