Product Overview

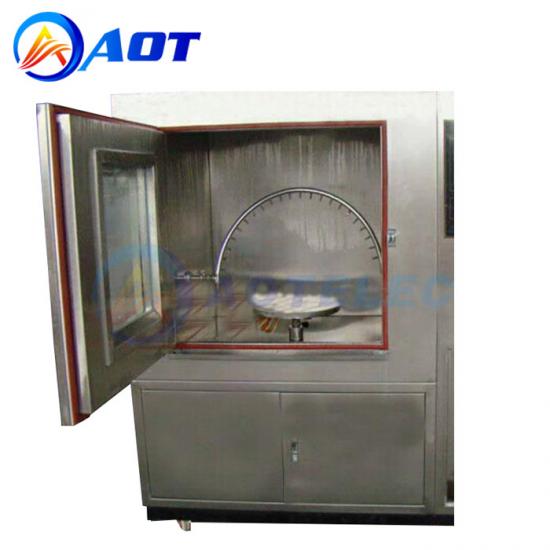

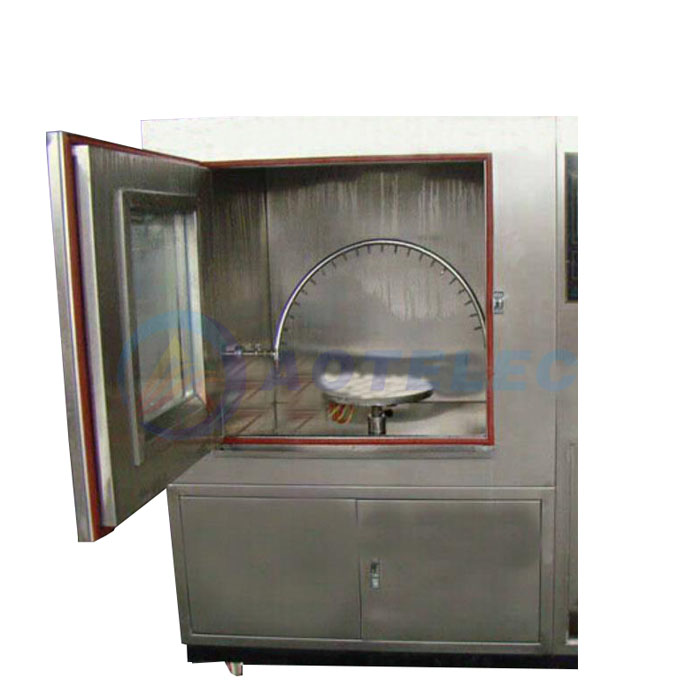

This equipment is suitable for testing the rain, dust, and sand immersion of various industrial electronic products such as automotive parts and electronic appliances. Automotive parts include testing the fully sealed stability of systems such as car lights, door locks, electrical systems, instruments, dust covers, and electronic household appliances. The tested object is installed or placed in the center position of a semi-circular curved tube, and the bottom of the splashed sample is at a horizontal position with the swing axis. During the test, the sample rotates around its center line.
*Parameters
|
Item Name |
Rain Testing Chamber |
|
Model |
AOT-RT-IP34 |
|
Source voltage |
AC 220V AC 50Hz |
|
Inner size |
800mm x 800mm x 800mm |
|
Nozzle material |
SUS304 stainless steel |
|
Spray hole diameter |
0.4mm |
|
Spray hole spacing |
50mm |
|
Spray pipe diameter |
16mm |
|
Spray ring radius |
R375mm |
|
Adjustable nozzle angle |
120 degrees (IPX3), 180 degrees (IPX4). |
|
Water pressure bar |
Adjustable water flow rate according to regulations |
|
Test product distance |
100mm to 600mm |
|
The rotation speed of the stage |
0.7-5 revolutions per minute can be adjusted |
|
Flow rate |
1-7L/min |
|
Airflow velocity |
1.0m/s (adjustable water flow velocity) |
|
Pressure gauge |
1 piece, water pressure in rain is about 80-100KPa |
|
Test time |
0-999min adjustable control |
|
Swing angle amplitude |
± 45 °, ± 60 °, ± 90 °, ± 180 ° (adjustable) |
|
After the experiment is completed, the accumulated water in the water pipe can be automatically drained. |
|
|
The swing tube is driven by a servo motor, with high precision and accurate time and swing amplitude. |
|
|
Water supply pipeline: PPR pipes are used for equipment water supply and arranged according to the box distribution, controlled by the equipment control system cabinet. Heating method: stainless steel heating tube is used, and the surface of the shallow water plate evaporates; |
|
|
The spray cycle inside the box is adjustable, and the box door is equipped with an observation window to observe the status of the samples inside the box. Window wiper, explosion-proof window. |
|
*Spry cycle system

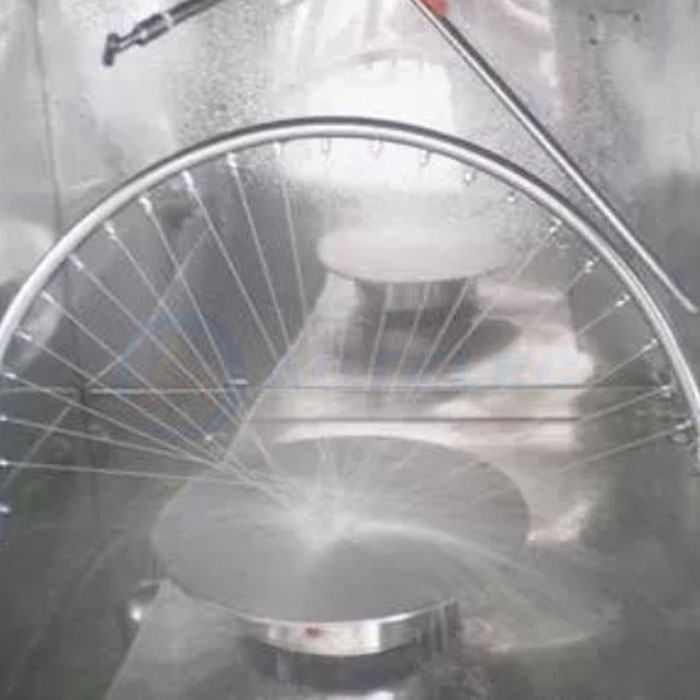

1. The shower nozzle is made of advanced stainless steel and evenly distributed on the top of the shower test chamber, using an aerosol spray; The heavy rainfall nozzles are distributed around the test chamber, and the spraying direction is adjustable. The size of the spray switch is controlled by switching the solenoid valve to change the water circuit. Both large and small rainfall sprinkler pipelines have flow meters displaying the amount of rainfall.
2. Using original imported frequency converter, it displays the current speed and set speed, and the turntable speed is adjustable
*Precautions
If the test is not conducted for a long time, the test water in the water tank should be drained to keep the test chamber clean.
2. Pipeline governor, test time, rain time, turntable governor, power switch, rain switch, turntable switch, swing rod switch.
3. Temperature protection inside the box to prevent uncontrolled temperature control from affecting the test, and three-phase voltage and phase sequence protection.
