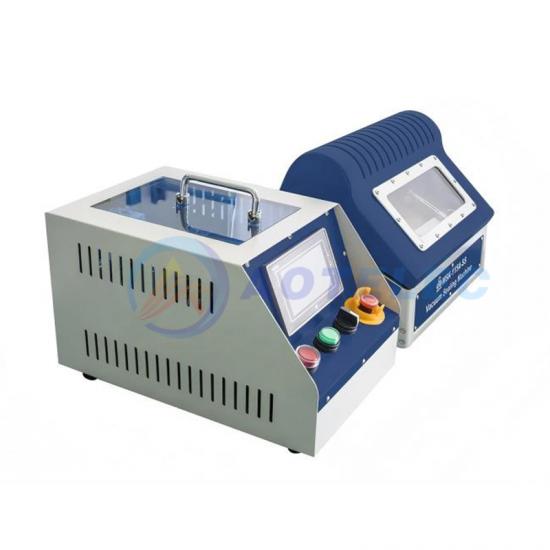

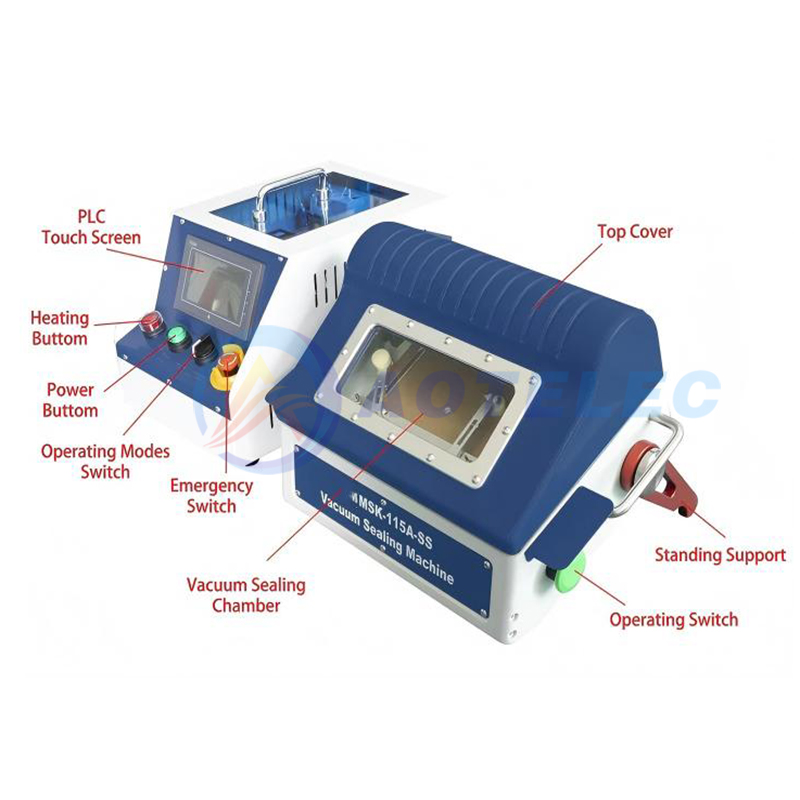

MSK-115A-SS is a miniature multifunctional vacuum sealing machine with a transition chamber inner diameter ≥ 320mm, used for packaging Max.L100 * W100 * H12mm soft packs and solid-state batteries (Li Ion, Na Ion, Zn Ion). The upper and lower head temperatures are Max.250 ℃, with a temperature control accuracy of ± 2 ℃, and a sealing width of 4mm (customizable). It can achieve top sealing, inert gas pre cleaning, vacuum standing, vacuum pre sealing, and vacuum secondary sealing of soft pack batteries.
Technical Parameter :
|
Product Name |
Mini Vacuum Sealer |
|
Power supply |
Single-phase AC220V ± 10%, frequency 50Hz (customizable AC110V/60Hz),power 800W |
|
Gas source |
0.65-0.8MPa compressed air or inert gas |
|
Usage environment |
Can be used in nitrogen and argon glove boxes or drying rooms |
|
Head temperature |
Max. 250 ℃ for upper and lower heads |
|
Temperature control accuracy |
± 2 ℃ |
|
Mold accuracy |
parallelism better than 0.02mm |
|
Battery size |
Max.L100 * W100 * H12mm |
|
Sealing width |
Standard 4mm soft seal (optional/hard seal) customizable |
|
Sealing length |
Max.100mm |
|
Sealing pressure |
Adjust the pressure through air pressure (0.65MPa, Max.319N, 0.8MPa, Max.393N) |
|
Heat sealing time |
Adjustable from 0 to 90 seconds, it is recommended to set it to 5 to 6 seconds |
|
Top side seal |
Can keep the upper cover open, achieving vacuum free sealing |
|
Inert gas cleaning |
Cleaning with argon gas under slightly positive pressure before vacuum standing can effectively remove oxygen content and improve electrode solid solid and solid-liquid interface infiltration |
|
Cleaning cycle times |
Adjustable from 0 to 90 times |
|
Cleaning pressure |
Adjustable from 0 to 0.8KPa |
|
Vacuum standing and sealing
|
Vacuum degree: maximum not less than -95KPa Vacuum idle time: (adjustable from 0 to 900S) Vacuum pre sealing time: (adjustable from 0 to 90 seconds) |
|
Gas consumption |
Approximately 0.04L of compressed gas per cylinder per seal, with an internal displacement of approximately 6L |
|

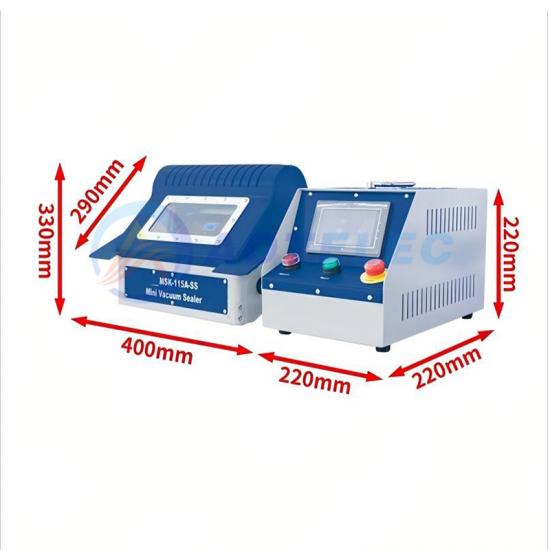

Equipment size |
L400 * W330 * H290mm (290mm is the maximum height size for opening the lid, which can be accessed through a glove box with a transition chamber inner diameter ≥ 320mm) |
|
Weight |
The main unit weighs about 17kg, and the electrical control box weighs about 9kg
|
