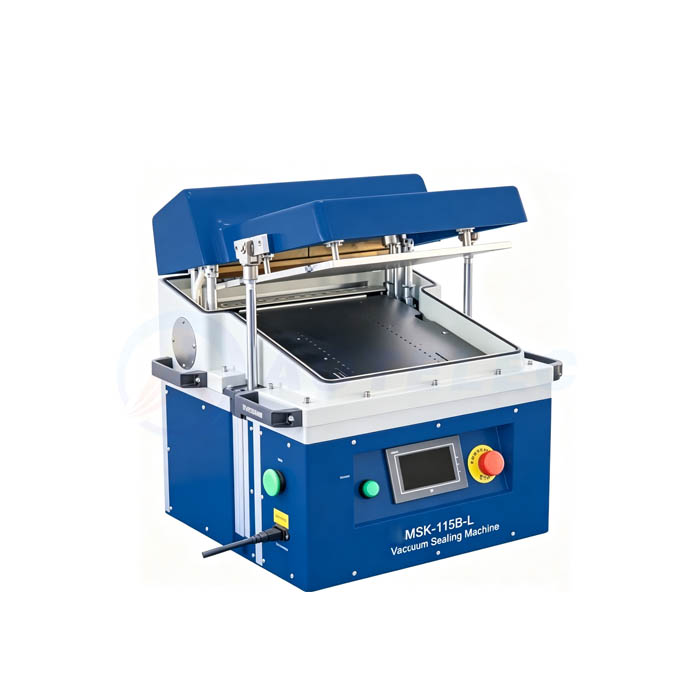

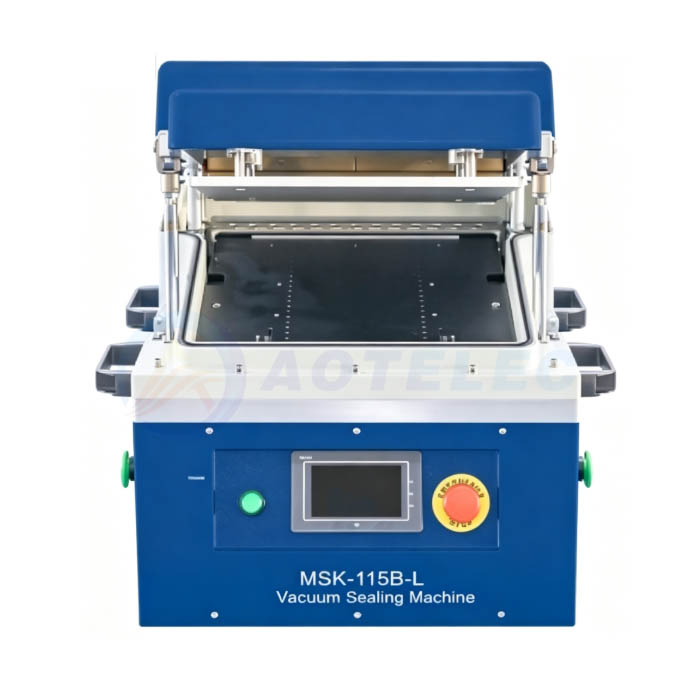

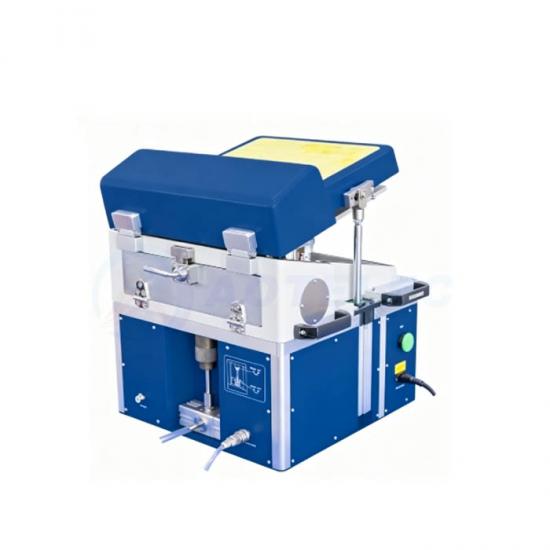

MSK-115B-L secondary vacuum sealing machine, compatible with pre-sealing and final sealing functions for pouch cell batteries and solid-state batteries. Manual feeding, manual clamping, automatic completion of vacuuming, draining, and sealing. The equipment includes fixtures, heads, needles, drainage, and micro positive pressure air washing units. The effective sealing length is Max.330mm, the head temperature accuracy is ± 2℃, the sealing thickness uniformity is better than 0.02mm, compatible with the maximum battery size L330*W330*H20mm (double pits battery), and the vacuum degree is better than -95Kpa. Standard 6mm wide hard seal, other specifications and sizes can be customized.
|
(1)Compatible with pre-sealing and final sealing functions for both pouch cell batteries and solid-state batteries |
||||||||||||||||||||||||||||||||||
|
(2)Standard hard sealed head, head size and type can be customized |
||||||||||||||||||||||||||||||||||
|
(3)The parallelism and sealing uniformity of the head are good. |
||||||||||||||||||||||||||||||||||
|
(4)The sealing temperature, sealing time, and sealing pressure are adjustable, and the sealing effect is good. |
||||||||||||||||||||||||||||||||||
|
(5)Fixture compatibility design, suitable for battery models within the size range. |
||||||||||||||||||||||||||||||||||
|
(6)Maintain good vacuum degree to ensure the moisture content of the battery product. |
||||||||||||||||||||||||||||||||||
|
(7)Configure needle piercing function to discharge excess electrolyte from the battery |
||||||||||||||||||||||||||||||||||
|
(8)The external electrolyte collection device is convenient for later disassembly and cleaning. |
||||||||||||||||||||||||||||||||||
|
(9)The overall design is compact and can be placed in a regular glove box for use. |
||||||||||||||||||||||||||||||||||
|
(10)Modular design of electrical control and structural standards for easy maintenance. |
||||||||||||||||||||||||||||||||||
|
(11)PLC control, HMI operation, convenient and easy to use.
Power
Single phase AC220V±10%( AC110V customized),50/60Hz,1.5KW
compressed air
0.6~0.8 MPa dry compressed air or inert gas
Operating environment
Controlled water oxygen glove box or drying room for use
Sealing head temperature
Both up and down sealing head max 250℃
(Hard seal: up to 220 ℃, the sealing head can be covered with PTFE tape; Soft seal: up to 250 ℃, the sealing head does not need to be covered with PTFE tape)
Temperature accuracy
±2℃
Sealing head accuracy
The parallelism is better than 0.02mm
Battery size
Max.L330*W330*H20mm double pit battery（H10mm single pit battery）
Sealing width
Standard is 6mm（2~8mm can be customized）
Sealing length
Sealing head length 345mm，Effective sealing length Max.330mm
Sealing pressure
Max.140 kg·f（Corresponding sealing gas pressure 0.6MPa）
Hot sealing time
0~90s adjustable, recommend 3~4s
Piercing method
Metal needle piercing (customizable ceramic needle piercing)
Vacuum degree
Adjustable，max -95Kpa
Gas consumption
0.18L Compressed air/sealing once
Exhaust volume
About 30L
Equipment dimension
L540mm x W500mm x H590mm
Net Weight
About 89kg
|
