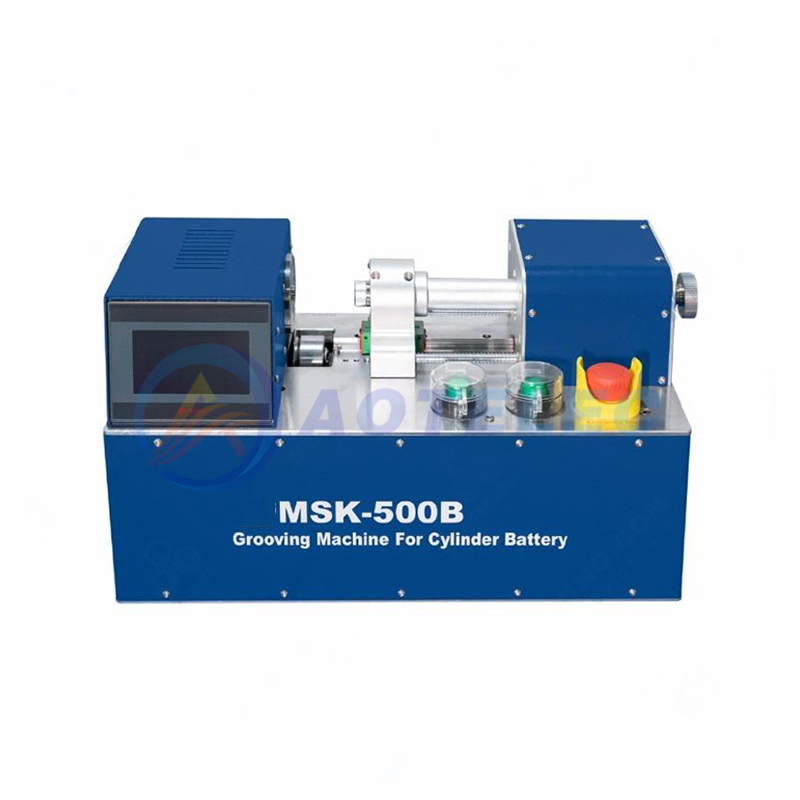

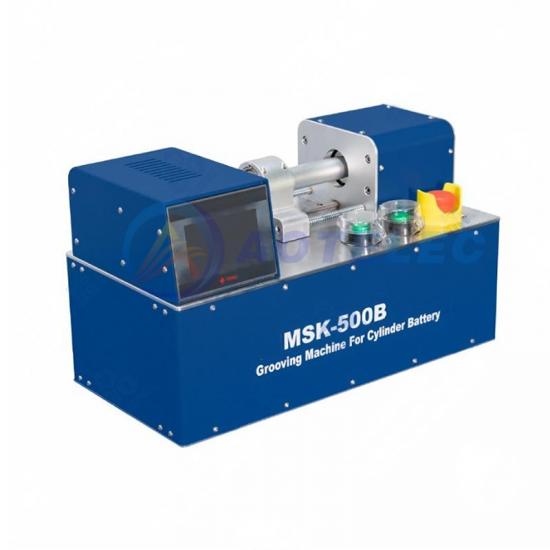

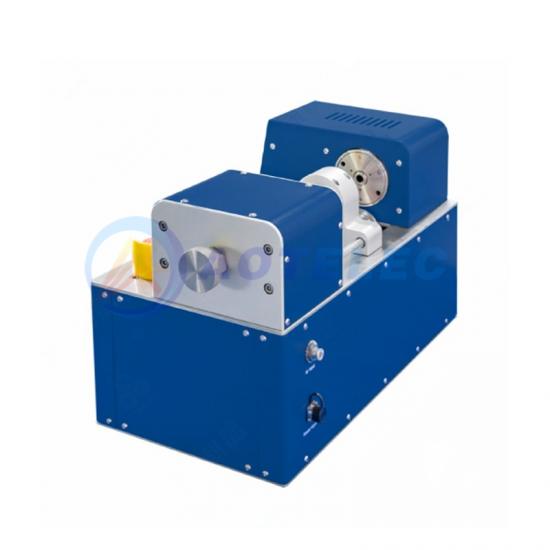

MSK-500B cylindrical battery grooving machine is a device that can be applied to the grooving process of cylindrical batteries and supercapacitors,
The equipment comes standard with a set of 18650 groove rolling molds (specific dimensions can be customized). By replacing the groove rolling molds, cylindrical batteries and supercapacitors with outer diameters ranging from 10mm to 50mm and lengths from L20mm to L140mm can be processed for groove rolling.
Functional Features：
1. Adjustable groove size, high precision, and stable groove size;
2. PLC touch screen parameter setting;
3. Changing the mold allows for groove machining of cylindrical battery cases and supercapacitors of various specifications;
4. It can be used inside the glove box through a transition chamber with an inner diameter greater than 360mm
Technical Parameter
|
Product Name |
Cylindrical Battery Grooving Machine |
|
Power Supply |
Single-phase AC220V ± 10%, frequency 50Hz, power 0.3KW |
|
Gas Source |
0.5-0.8MPa compressed air or high-pressure gas cylinder (high-pressure gas cylinders should be used after reducing pressure to 1.3-1.5MPa) |
|
Note |
1. Normal steel shell wall thickness within 0.4mm and air pressure of 0.5-0.8MPa can meet the requirements for use. In special cases where the wall thickness is greater than 0.4mm and the material is relatively hard, an air source of 0.8-1.2MPa can be selected 2. The pressure values of different steel shells are set differently. When the pressure is low, they cannot roll, but when the pressure is high, they will roll and break (the pressure that has been adjusted before leaving the factory can meet 95% of the steel shell, and the pressure can be adjusted in special circumstances) |
|
Usage Environment |
It is recommended to have an ambient temperature of 25 ± 3 ℃, humidity of 30-90RH, and no vibration or electromagnetic interference |
|
Applicable Batteries |
10mm -50mm, L20mm - L140mm, such as 3260, 4680, 18650, 21700 |
|
Groove Depth |
adjustable from 0.8-2.0mm |
|
Roll groove width |
standard 1.2mm, can be designed to 0.9-1.5mm according to requirements |
|
Roll Cutter Life |
≥ 100000 times |
|
Equipment Size |

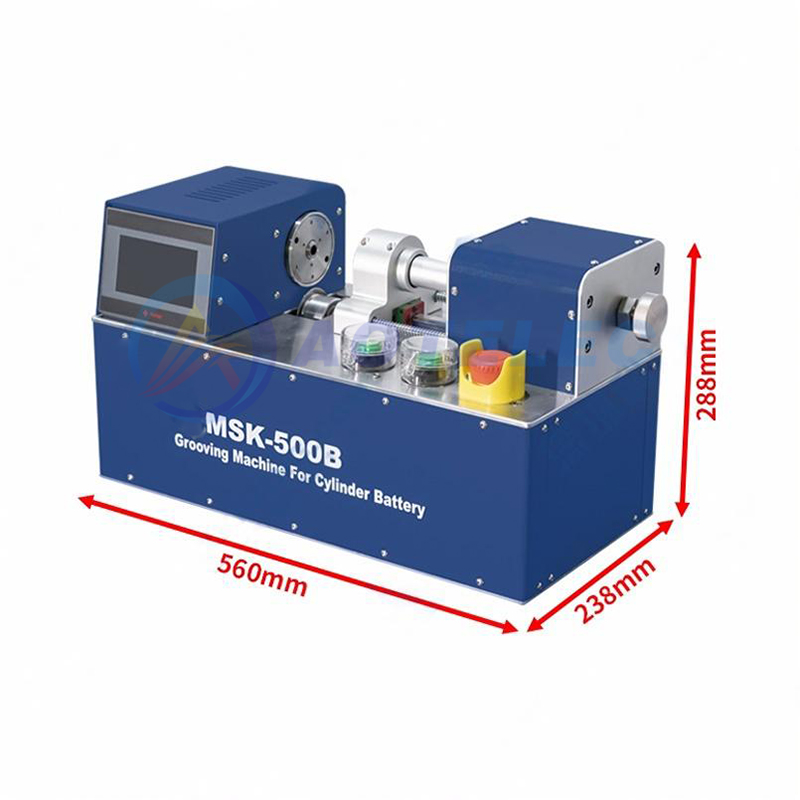

L560mm * W238mm * H288mm |
|
Weight |
40KG |
