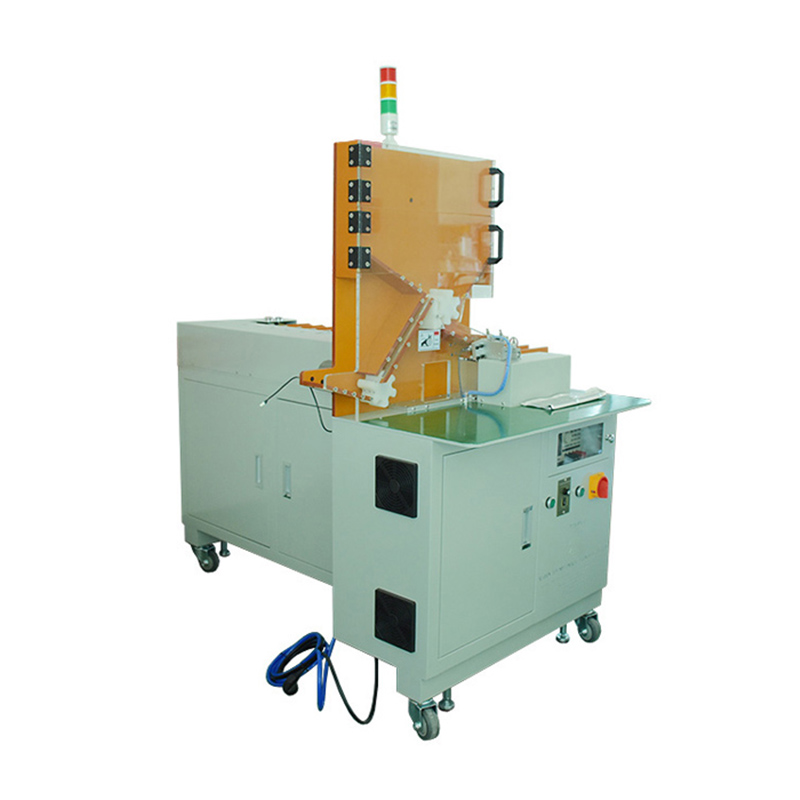

Automatic Sorting Machine for 18650 32650 Battery Pack Assembly

This automatic sorting machine is used for 18650 cylindrical battery pack assembly, optional for 26650, 32650 cells
  • Item NO.:

    AOT-ST-1805
  • Lead Time:

    10-20days
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen, China
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

18650 battery cells automatic sorting machine for pack manufacturer


Description:

The cylindrical lithium batteryautomaticsortingmachine is a must equipment forbatterypackmanufacturerassembling, it is mainlyfor voltage andinternalresistance testing and sorting.


This equipment is 6 channels type, include 5 ok channel and one NG channel, we can also provide 11channels and 12channel, as well as 20channels type for your choice, suitable for 18650 cells, custom for 26650 and 32650 cylindrical battery cells.


More detailed requests, please mail to ping@aotbattery.com


Specifications:

Model

Automatic Sorting Machine AOT-ST-1805

AC Source

220V/50HZ (can be customized)

Power

1600W

Air Pressure

0.4-0.8Mpa

Display screen

7.5 inch touch screen, 3-axis PLC programmer

Suitable for

18650 battery (26650, 32650 cells customized)

Sorting channel

6 channels, 5 sorting and matching channel,1 unqualified channel

Internal resistance setting

0mΩ-999.9 mΩ

Voltage setting

0-6V

Weight

<200KG

Codescanning function

Not standard configuration, Optional

Production efficiency

Without codescanning function, about 5000pcs/h

With codescanning function, about 3000pcs/h

Feeding

By hopper, 500pcs cells one time

External connection

Customizable automatic connection padding machine

Tester

Standard tester: HOPETECH HK3560

High speed tester

Voltage accuracy 0.00005V

Internal resistance precision 0.01 mΩ

Motion device

Step shifting using closed-loop stepper motor, and the positioning is accurate.

The synchronous belt conveys the cell to prevent the cell surface damaged

Advantage

Automatic collection the production quantity to show current production efficiency

Test data can be stored in U-disk

Customizable scan code and database data docking

Optional cell dynamic tester, Practical embodiment the quality and load performance of cell

The equipment debugging is simple, easy to learn and easy to understand, with fault alarm

External Size

L1100mm*W930mm*H1390mm

NetWeight

About120kg

Automatic Sorting Machine AOT-ST-1806

18650 Sorting Machine AOT-ST-1806
