Product name |
swagelok type cell |
|
MOQ |
1 set |
|
Battery type |
CR2032 |
|
Material |
SS316 |
|
Inner diameter |
13mm |
|
Outer diameter |
25.4mm |
|
Apllication |

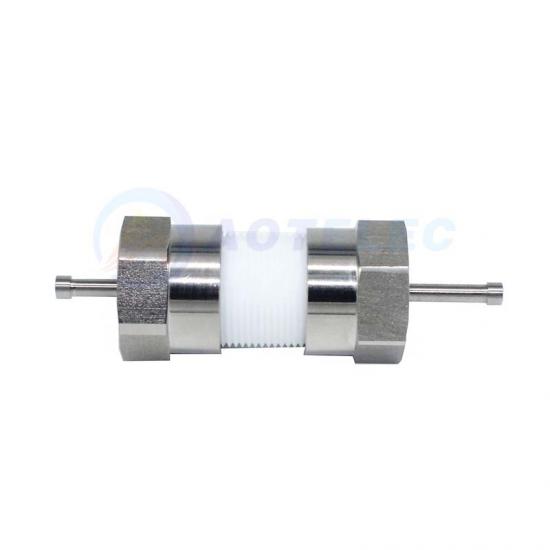

SS316 Battery materials swagelok-type cell for coin cell research
1. Theswagelok-type cells are specially designed to facilitate lithium ion battery research.
2. The swagelok-type cellsis made of 5 parts. Small size, Simple operation.
3. As a substitute for coin cell cases, the swagelok-type cellscan be well used for coin cell research. Low cost and high quality with 316SS materials.
Dimensions of the parts:
1. Stainless Stell caps(outer diameter: 25.4mm)
2. Teflon body(inner diameter:13mm)
3. Materials: SS316 stainless steel
Acrylic Rack for Swagelok-Type cells:
The acrylic rack is designed to work with this swagelok-type cell, making it stand vertically during test.
Two types of racks are available:
1. T5: Holdes5 cells. Dimension: 500 x 70* 90mm
2. T8: Holds 8 cells. Dimension: 800 x 70 * 90mm
