LLZNO-500NM Lithium lanthanum zirconium niobium oxide lithium ion solid electrolyte powder
Type：LLZNO-500NM
Overview: Mainly used for solid-state lithium-ion batteries.
Test Project
Test Value
Chemical Composition
Li6.5La3Zr1.5Nb0.5O12
Colour
White Powder
Theoretical Density
5.15 g/cm3

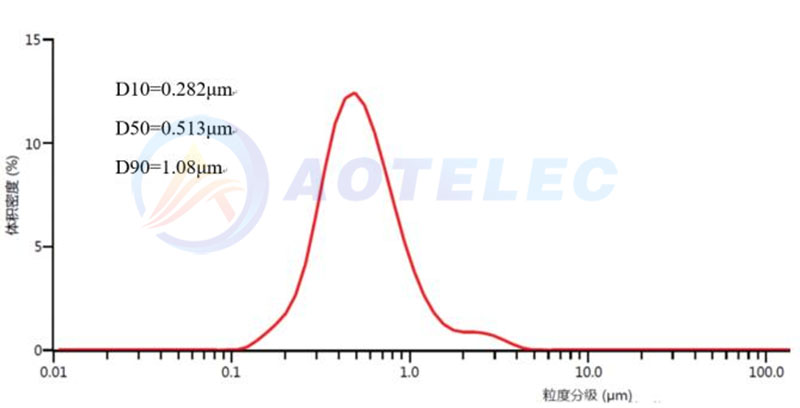

Granularity
D10
≥ 0.2 um
D50
0.5 ± 0.05 um
D90
≤ 1.5 um
D100
≤ 5.0 um
Specific surface area
15 ± 3 m2/g
Moisture content
≤ 500 ppm
PH
≤ 12.50

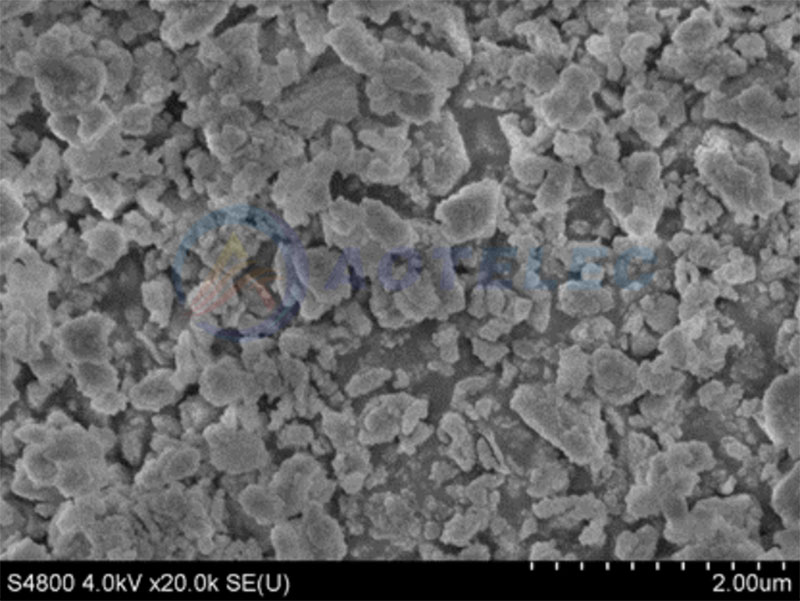

SEM
The particles are evenly distributed, with an average particle size of around 0.5 μ m per particle
Ionic Conductivity
≥7.0× 10-4 S/cm@25℃
Note
1. This product is non flammable, non-toxic, and safe to transport when packaged properly.
2. It should be stored in a sealed and cool, dry place, avoiding rain, water immersion, and sun exposure.
3. Before use, it should be dried and sealed for storage.
