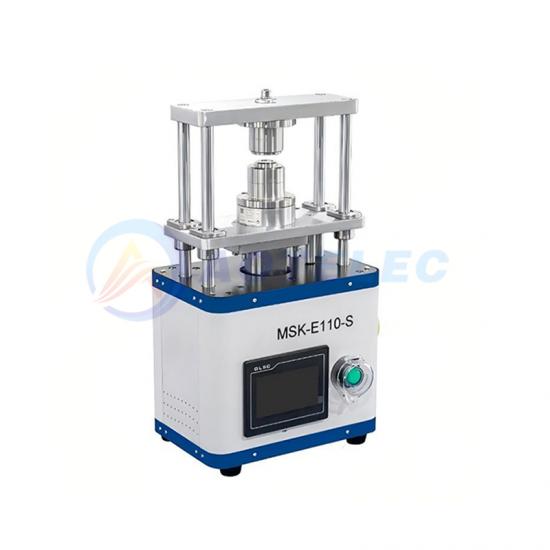

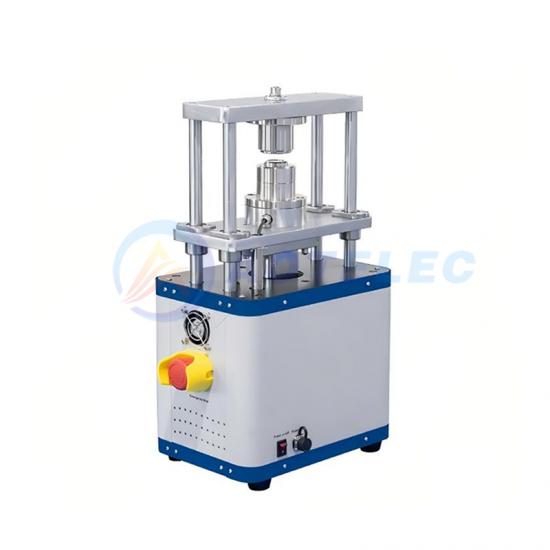

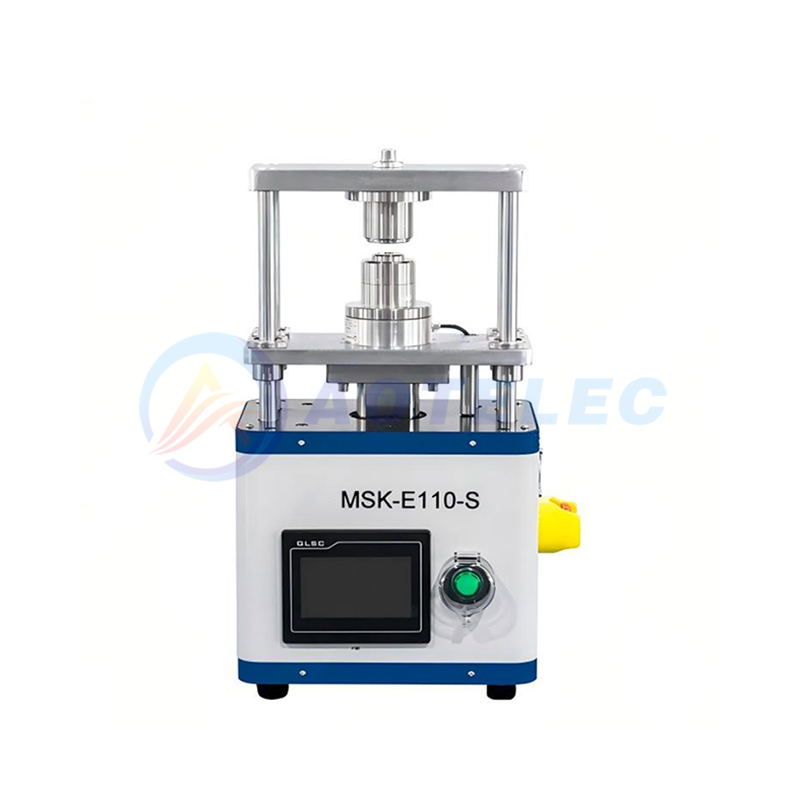

AOT-MSK-E110-S pressure controllable electric button battery,coin cell battery crimper , driven by a motor, realizes the packaging and unpacking process of button batteries. The standard crimping mold can be used for sealing 20mm diameter series button batteries such as CR2016, CR2025, CR2032, etc. If sealing other diameter button batteries (such as CR2450, CR1620, etc.), corresponding molds need to be selected. At the same time, it is also possible to choose a disassembly mold for fully disassembling the positive and negative battery shells after sealing the button battery, which facilitates the study and analysis of sample intake of internal materials of the battery.
Functional Features:
1.Closed loop control of sealing pressure, equipped with pressure sensors, precise control of sealing pressure;
2.Motor driven mold mechanical pressurization for button battery crimping, with no risk of oil leakage or gas consumption;
3.Digital setting of sealing time touch screen;
4.Compact and lightweight, able to lie flat and enter the glove box through the transition compartment, and can be used normally in the glove box environment;
5 .Precise mold design ensures precise and reliable sealing molding, excellent sealing quality, and long service life;
6. Configure different molds to package and disassemble button batteries of different specifications, achieving multi-purpose use on one machine.
|
Product Name |
Pressure Controlled Electric Crimper |
|
Power Supply |
Single-phase AC110-20V ± 10%, frequency 50/60HZ, power 360W |
|
Usage Environment |
drying room or glove box |
|
Scope of Application |
Diameter of φ 5.0- φ 35mm/Height Max: 10mm |
|
Crimping Pressure |
Sealing pressure: intermittent adjustable pressure, recommended packaging pressure for CR20 series button batteries: 500-700KG, Max: 1000KG |
|
Equipment Speed |
approximately 2.5pcs/min (for reference only, specific time subject to actual sealing, due to differences in sealing time depending on battery size) |
|
Sealing Stroke |
15mm |
|
Crimping Die |
standard CR20 series packaging mold, optional with other specifications |
|
Mold lifespan |
Max 5000 sealing cycles |
|
Assembling Die |
Optional CR16, CR20, CR24, CR30 or non-standard customization with diameter ranging from 13mm to 35mm and height Max: 10mm |
|

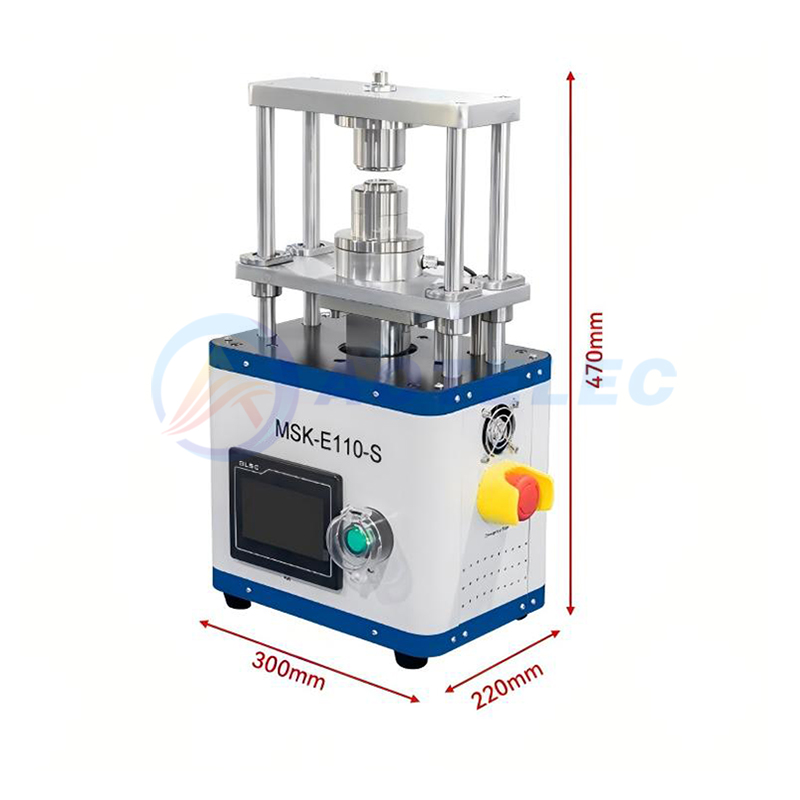

Equipment Size |
L300 * W220 * H470mm |
|
Weight |
32KG |
