Elcometer Casting Knife Wet Film Applicator Doctor Blade for Battery Material Coating
1. Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.
2.The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.
|
Model |
Film Applicator with Slurry Baffle AOT-KTQ-250S |
|
width |
250 mm standard width |
|
wet film thickness |
Make wet film thickness between 0 - 5000 microns |
|
Micrometer head's controllable accuracy |
10 microns |
|
Slurry Capacity |
100 ml |
|
Remark |

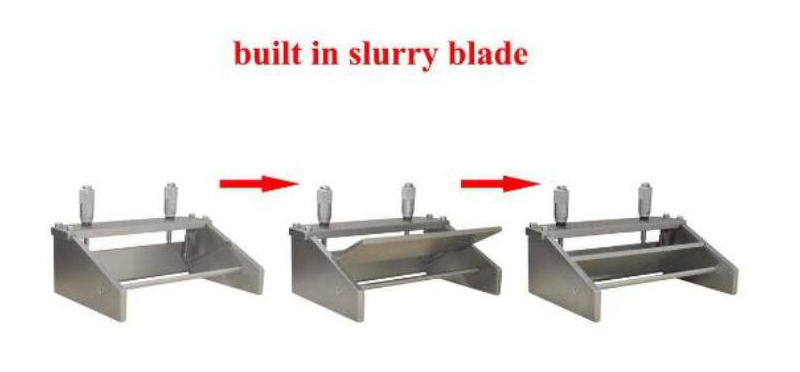

Built in slurry guiding plate to make film coating at easy |
