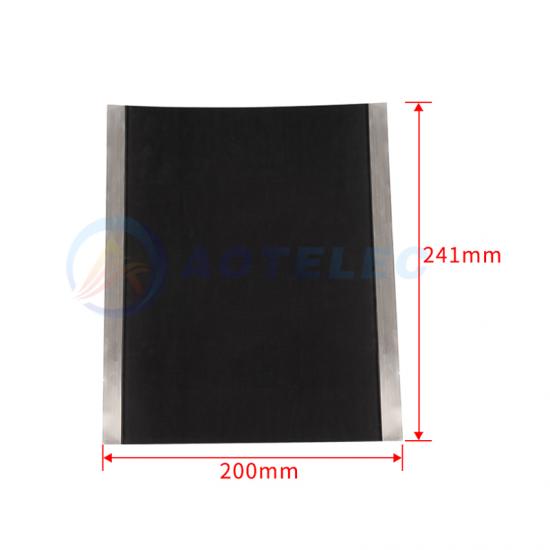

This electrode sheet is based on aluminum foil coated with hard carbon ,used as a cathode electrode of a Na-Ion battery.
eference for the use of electrode sheet
1. Electrode cutting: Punching machine, coin cell electrode recommended size: diameter 12mm/14mm
2. Weighing: Balance, active substance calculation formula: active substance mass=
(Mass of electrode (mg) - Circular area (cm2) * Density of current collector surface (mg/cm2) * Proportion of active substance
3. Electrode sheet baking: DZF-6050 (53L) vacuum drying oven
Temperature: 60-80 ℃ Time: 2-4 hours
4. Electrode sheet assembly: single station glove box, small hydraulic button battery sealing machine
Recommended battery assembly sequence: negative case - sodium chips- electrolyte - separator - electrolyte - electrode sheet - gasket / spacer- spring - positive case
5. Battery testing: 5V10mA 8 channel battery tester
Calculate the mass of the active substance, input the corresponding current magnitude, and voltage range.
Current calculation: 0.1C=1C (active substance mass mg × 0.001 × nominal specific capacity mAh/g) × 0.1
Specification
|
Item |
Parameter |
|
Size |
241mm L x200mm W |
|
Coating side |
241mm L x 175mm W（each side blank 12.5mm） |
|
Coating area |
Single side coating |
|
Total thickness |
80-100 μm |
|
Foil thickness |
16μm |
|
Coating surface density |
6.3±0.2mg/cm2 |
|
Foil surface density |
4.22mg/cm2 |
|
Proportion of active substance mass |
92% |
|
Tap density |
0.9g/cm3 |
|
Test voltage range |
0.005V-2.0V |
|
Reference for specific capacity |
280±30mAh/g |
|
Matters need attention |
The proportion of electrode active substances is based on the physical label, and the calculation formula for electrode active substances is provided below.
After opening the electrode sheet, be sure to seal it and store it in a glove box or a 60 ℃ oven. |
