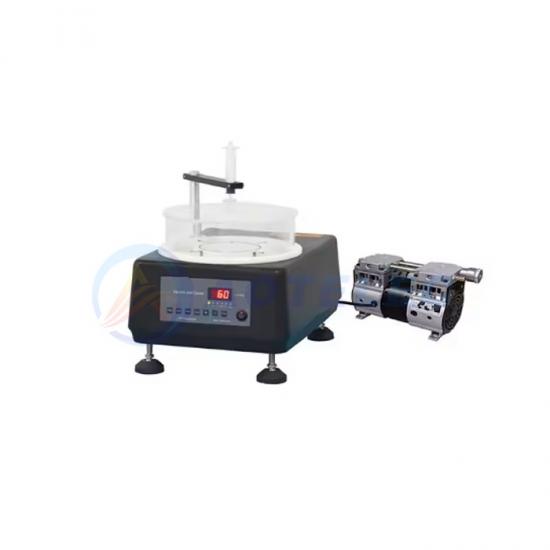

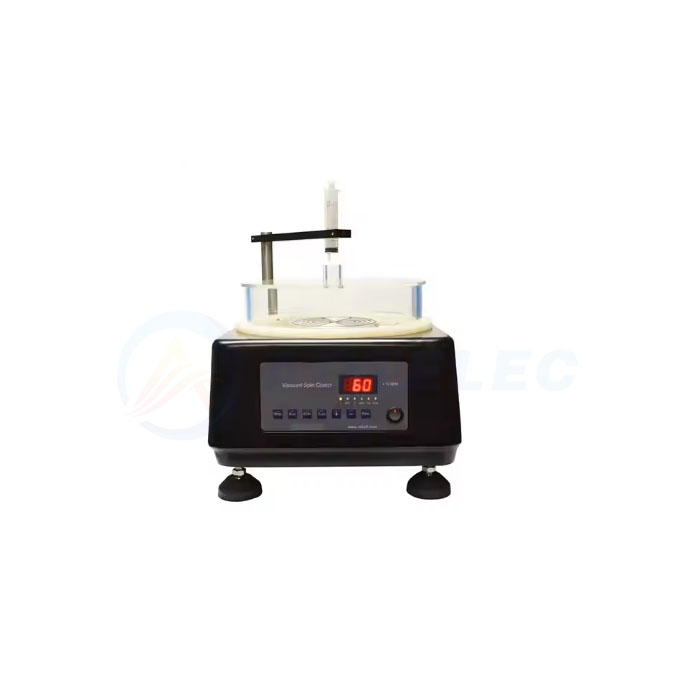

AOT-VTC-100A is a compact spin coater with vacuum chucks designed for easy and quick coating via sol-gel for wafers up to 4". The spinning speed is variable from 500-8000 rpm with two programmable segments. The package comes included with complete accessories for immediate use.
|
Product Model |
AOT-VTC-100A |
|
Structure |
An aluminum casting case to keep spinning stably The liquid disk is made of Polypropylene (PP) to resist most of the corrosive solutions The drainage outlet and vacuum pump connector are on the back panel One filter is included in the standard package. It is used to connect the coater to prevent wastewater from flowing into the pump One oil-less vacuum pump is included in the standard package, Please click here for specification details. |
|
Chamber & Vacuum Chuck
|

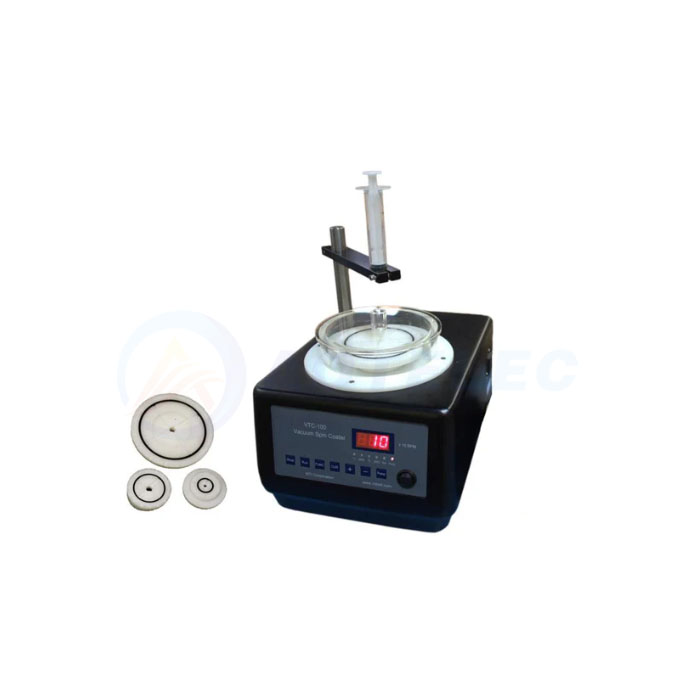

Chamber Diameter: 145 mm 3 sets of PP anti-corrosive vacuum chucks with chuck o-ring come in different sizes (1'', 2'', and 4'') 1 piece of adhesive tape (6'' W x 24'' L) is included for coating irregularly shaped substrates (e.g. Place the irregular substrate on the adhesive tape, then the vacuum chuck will hold the tape by suction) Mini suction cups are available for the small wafer with less than 1" Dia. or substrate with regular ( 5x5, or 10x10mm) or irregular shapes. Please click here to order. at extra cost. ( see picture below right ) |
|
Vacuum Pump (Not included)
|
From 09/07/2022, 120L/min Oilless Vacuum Pump is not included. Vacuum grade rubber pipe is included for immediate use. |
|
Spin Speed & Time
|
Digital control panel with TWO programmable segments for different spin times and speeds Spinning speed: 500 - 8000 RPM Spinning Time: 1 - 60s |
|
Liquid Injecting |
20mL syringe is used to contain the coating material The syringe holder height can be adjusted and rotated freely along the support rod
|
|
Input Voltage |
Spin Coater: 24 VDC with 100 - 240 VAC power adapter, 150W Vacuum Pump: 110VAC or 220VAC please select the voltage in the options bar (10A fuse) |
|
Motor Power |
24V DC motor with 150W Max. |
|
Product Dimension |
330.2mm(L) x 254mm(W) x 215.9mm(H)
|
|
Weight |
15 kg |
