Battery Electrolyte Diffusion Vacuum Chamber for Cylinder Cell and Pouch Cell

This battery electrolyte vacuum diffusion chamber is mainly used for absorbing the electrolyte and making it mix with electrode more completely under the condition of vacuum when injecting liquid to pouch cells and cylindrical batteries.
  • Item NO.:

    AOT-VSB-300
  • Lead Time:

    5-15days
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen, China
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

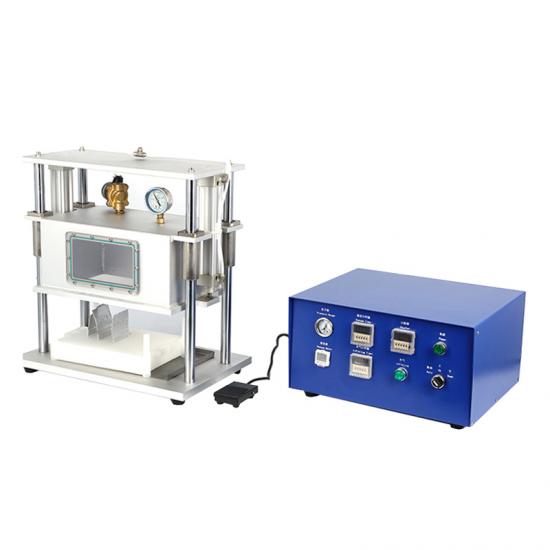

Lithium Battery Vacuum Standing Box for Battery Electrolyte Diffusion


This equipment is mainly used for absorbing the electrolyte and making it mix with electrode more completely under the condition of vacuum when injecting liquid to pouch cells and cylindrical batteries. The whole equipment is made of high-quality electronic component and materials. It is applicable for batteries in all sizes, with easy operation and efficient production. It is the perfect multifunction equipment for lab.


The electrolyte diffusion chamber needs work in the glove box, it has pipes to let the controller box outside the glove box and just vacuum standing box in glove box, first, it can save some space, second, it can also protect the controller box without electrolyte corrosion.

Features :
1. Vacuum keeps stable and vacuum degree does not descend too much.
2. Multi-stage circulate operation function makes the electrolyte fuses more complete.
3. Trough perspective window can observe the changes inside the chamber.
4. The upper chamber is driven by cylinder and guided by four linear guide bushes to move up and down flexibly and guide accurately that ensures the product sealing demand.
5. Applicable for batteries in all sizes and adjust simply and conveniently.
6. Split design of main machine and control box makes the machine can work either in glovebox or on production line.
7. Simple operation, nice appearance, small volume and light weight.

Application :

Battery lab

Battery research

Lithium ion battery lab

Material research

Trial-production


LAB Battery Equipment for Pouch Cell and Cylinder Cell

Item Name

Pouch cell vacuum standing box AOT-VSB-300

Chamber Material

12mmAluminum that is anti- corrosion, and structure is stable.

Diffusion time

0 ~ 9999s

Vacuum degree

Can reach -90KPa( vacuum pump should be self-supplied by the buyer).

Voltage

220V/50Hz

MaxPower

100W

Compressed air source

0.5MPa~0.7MPa

Working temperature

-20~40℃

Dimension of the inside chamber

L355mm*W255mm*H325mm

Vacuum Chamber External Size

About L500mm*W300mm*H800mm

Controller Dimension

L450mm*W370mm*H260mm

Weight

40KG

Warranty

Two year with lifetime support
