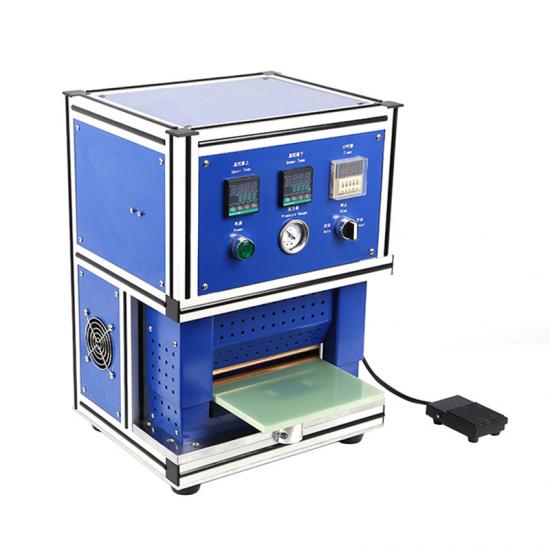

Lab Compact Heating Sealer Machine for Pouch Cell Case Top and Side Sealing

This Battery heat sealing machine is a compact heating sealer for aluminum-laminated films during pouch cell case preparation.
  • Item NO.:

    AOT-TSS-200
  • Lead Time:

    5-10days
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen, China
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

Lab Battery Heat Sealing Machine for Pouch Cell Case Top and Side Sealing


1. Battery heat sealing machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.


2. The battery heat sealing machine adopts soft sealing bar, The sealing is copper in bottom and aluminum and Silicone rubber piece on top. So it can be used for both top and side sealing for pouch cell.


3. It can prepare the pouch cell for the injection of electrolyte by sealing the side and top of the pouch cell with tab.


Model

Heat Sealing Machine AOT-TSS-200 for Lithium Polymer Battery

Power Supply

220V 50Hz ( 110V is available request )

Sealing Length

200 mm Max.

Sealing Width

5 mm (3-10mm)

Sealing Thickness

0.15 - 0.3 mm

Max. Power

500W

Sealing Pressure

0.5 - 0.7 MPa adjustable

Sealing Temperature

RT-250degree centigrade,adjustable

Heating Timer

0 - 99 Seconds Adjustable

Warranty

One Year limited warranty with lifetime support

Product Dimensions

430mm(L) x 330mm(W) x 480mm(H)

Net Weight

35kg

Sealing blade type

Soft sealing blade

(Copper sealing blade with aluminum and Silicone rubber piece,

good for Al film case sealing and case with tab in between,

suitable for both top sealing and side sealing)

Compact Heating Sealer for Sealing Laminated Aluminum Case of Pouch Cells

Heat Sealer Machine for Pouch Cell Top Side Sealing

Compact Heat Sealer for Sealing the side and top of Pouch Cells case AOT-TSS-200
