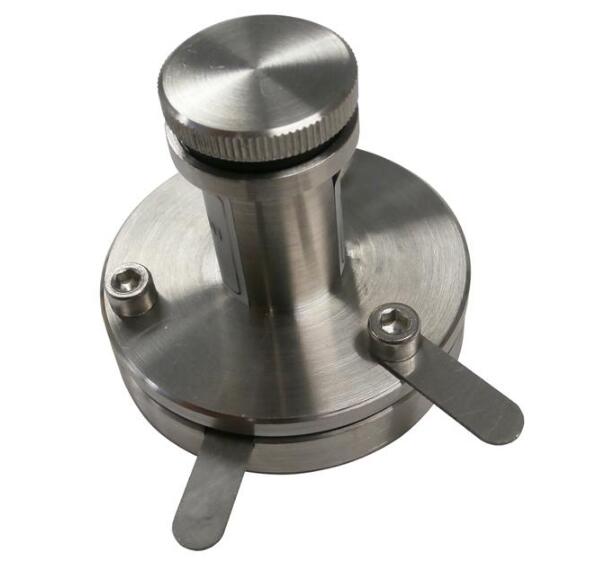

Two Electrode Split Test Cell for Lab Coin Cell Battery Research
AOT-STC-2split-able test cell is designed for R&D of rechargeable battery material. It can accept various sizes of (19, 20, and 24mm diameter) electrodes and separators and test the electrodes easily and quickly.
SPECIFICATIONS
|
Structure |
Full stainless steel |
|
Max. Cell Thickness |
6mm (cathode+separator+anode) |
|
Features |
1.A 6mm height spacer inside the test cell to press down on the electrode and prevent the electrode from curling 2.Sealed by electrolyte corrosive-proof PTFE O-rings 3.Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 200 ºC 4.Easy to separate after testing 5.Small enough to be put in and taken out from a glove box 6.Same functionality to "Swagelok Coin Cell" but with more size options for electrode and separator and also the proper dimensions for glove box compatibility |
|
Max. Working Temperature |
200 ºC ( continuous ) 280ºC ( for < 1 minute ) |
|
Optional |
Please select the insert size in the Product Options. 19, 20, and 24 mm diameter inserts are available. |
