Potentiostat Galvanostat for battery test

Single-Channel Potentiostat /Galvanostat For Battery Test

Potentiostat/Galvanostat/FRA/ZRA Maximum Current: ±2A Current range: ±2nA ~2A, 10 ranges Applied Potential: ±10V(can be customized to ±12V) Compliance voltage: ±21V Built-in EIS/FRA, EIS range: 10μHz~1MHz Potential/current accuracy: 0.1% of the range Potential resolution: 10μV; current resolution 1pA IR compensation; Current can be ±20A/40A/100A with a booster

Item NO.:
AOT- CS350M
Lead Time:
15-20
Product Orgin:
china
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

Product Introduction

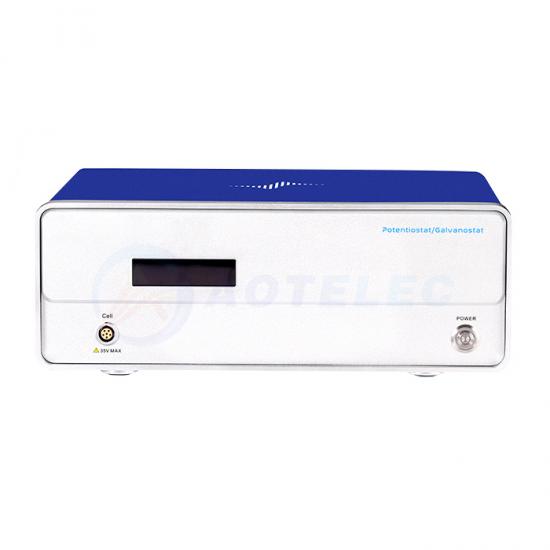

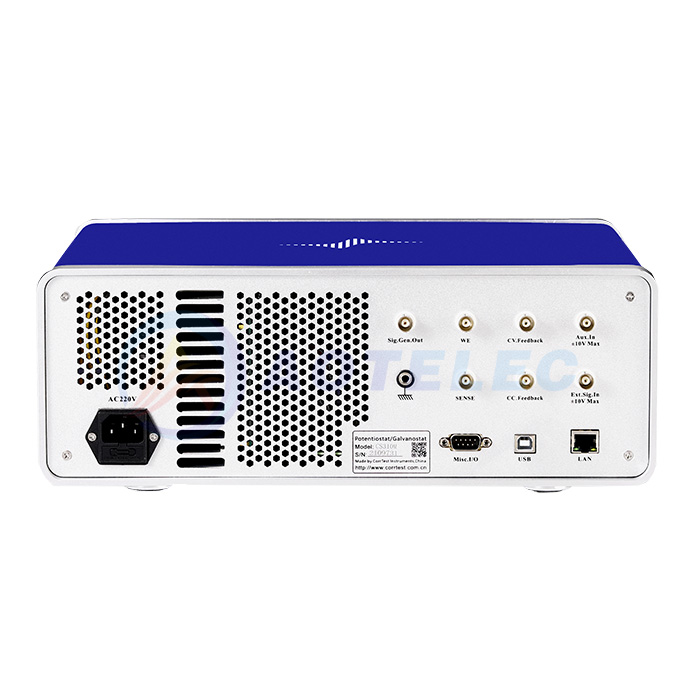

Model CS350M single-channel potentiostat/galvanostat consists of a DDS arbitrary function generator, a potentiostat/galvanostat and an FRA. With the help of built-in dual 24-bit Delta-sigma AD converters, it achieves excellent stability and high potential (1mV) and current(1pA) resolutions. CS350M has been widely applied in corrosion, energy, material and analysis electrochemistry. In addition, via current booster. CS350M can increase its output current up to 20A/40A/100A.\

Specifications

Specifications
Support 2-, 3- or 4-electrode system	Potential and current range: Automatic
Potential control range: ±10V(can be customized to ±12V)	Current control range: ±2A
Potential control accuracy: 0.1%×full range±1mV	Current control accuracy: 0.1%×full range
Potential resolution: 10μV (>100Hz),3μV (<10Hz)	Current sensitivity:1pA
Rise time: <1μS (<10mA), <10μS (<2A)	Reference electrode input impedance:10¹²Ω\|\|20pF
Current range: 2nA~2A, 10 ranges	Compliance voltage: ±21V
Maximum current output: 2A	CV and LSV scan rate: 0.001mV~10,000V/s
CA and CC pulse width: 0.0001~65,000s	Current increment during scan: 1mA@1A/ms
Potential increment during scan: 0.076mV@1V/ms	SWV freuency: 0.001~100 kHz
DPV and NPV pulse width: 0.0001~1000s	AD data acquisition:16bit@1 MHz,20bit@1 kHz
DA Resolution:16bit, setup time:1μs	Minimum potential increment in CV: 0.075mV
IMP frequency: 10μHz~1MHz	Low-pass filters: covering 8-decade
Operating System: Windows 10/11	Interface: USB 2.0
Weight / Measurements: 6.5kg, 36.5 x 30.5 x16 cm

Company Profile

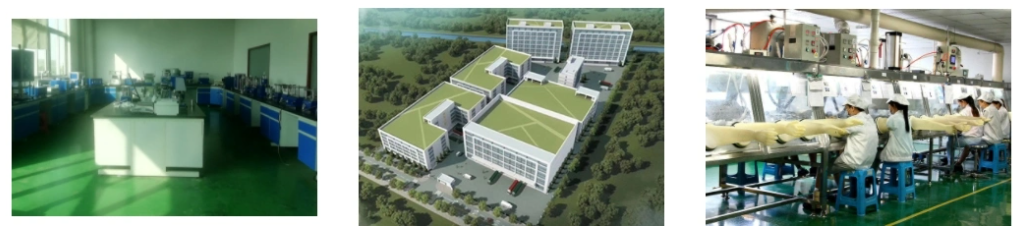

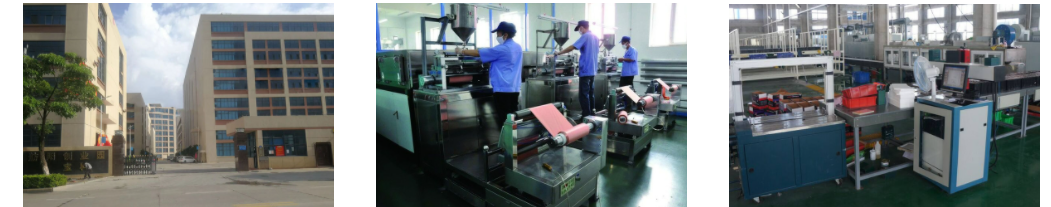

Xiamen AOT Battery Equipment Technology was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
