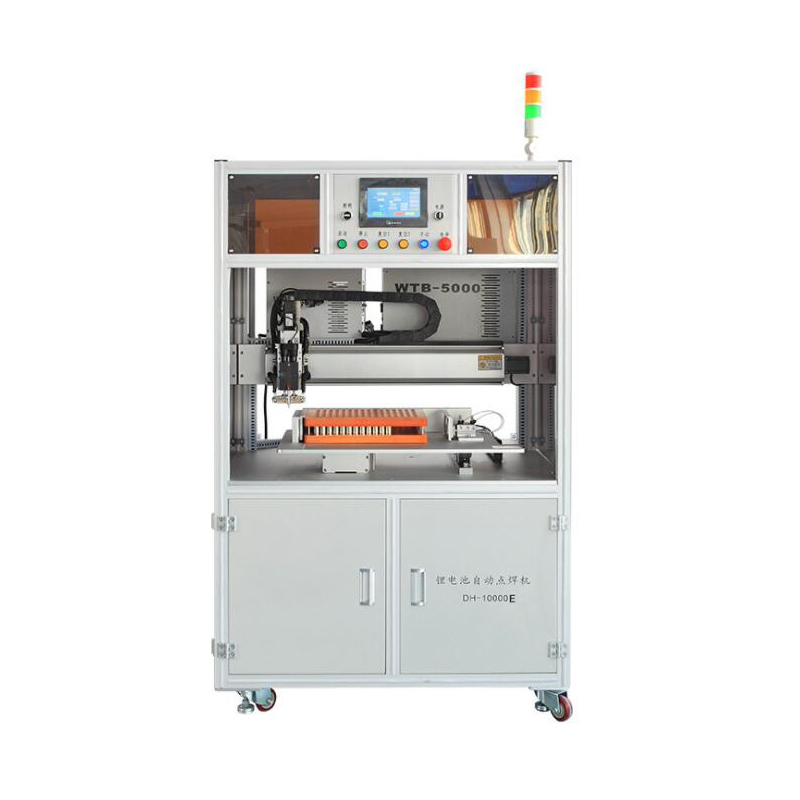

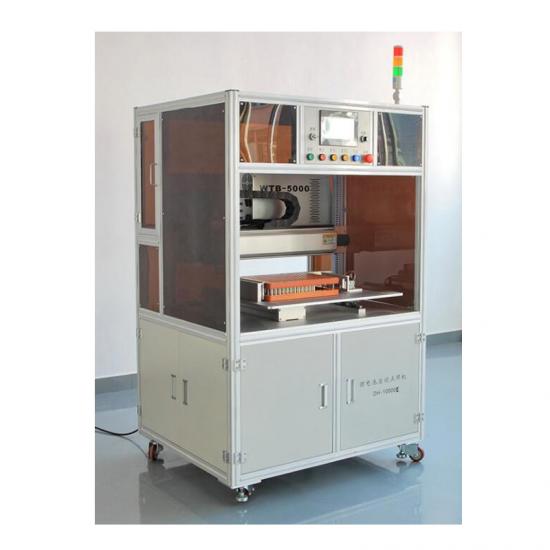

CNC Automatic Spot Welding Machine for Cylindrical Battery Pack

This automatic spot welder machine is used for cylindrical battery pack assembly, available for 18650, 26650, 32650
  • Item NO.:

    AOT-DH-10000E
  • Lead Time:

    15-30days
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen, China
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

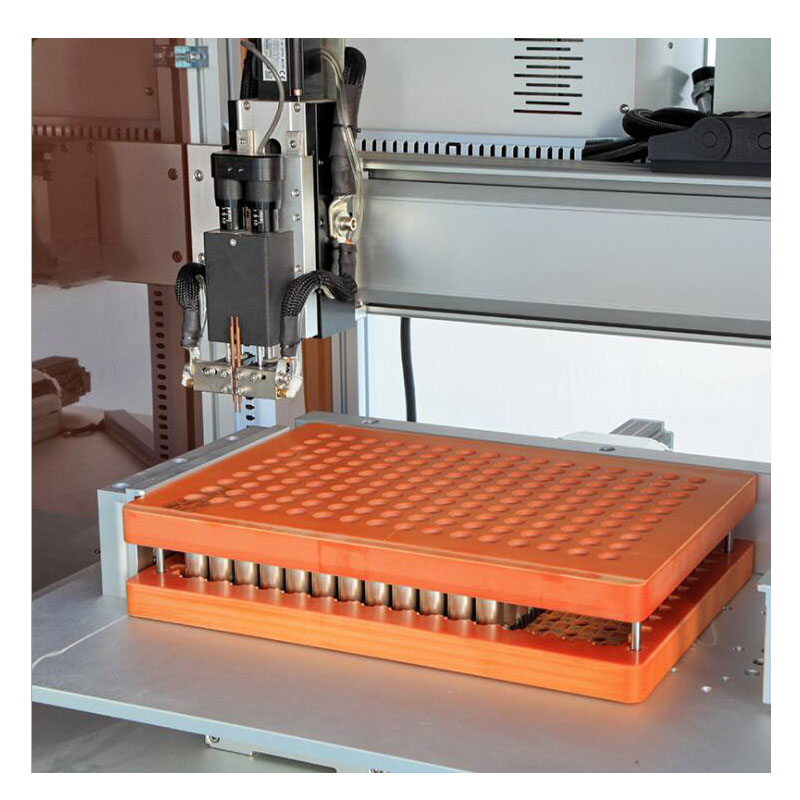

This machine can be used for 18650,21700, 26650,32650 cylinder battery pack single-side automatic spot welding.


Features:

1.Support breakpoint start, support automatic start and manual start mode conversion.

2.It has a false spot welding and out of spot welding alarm function.

3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4.Welding needle replacement forecast reminder.

5.Own welding current monitoring system, real-time monitoring of welding current.


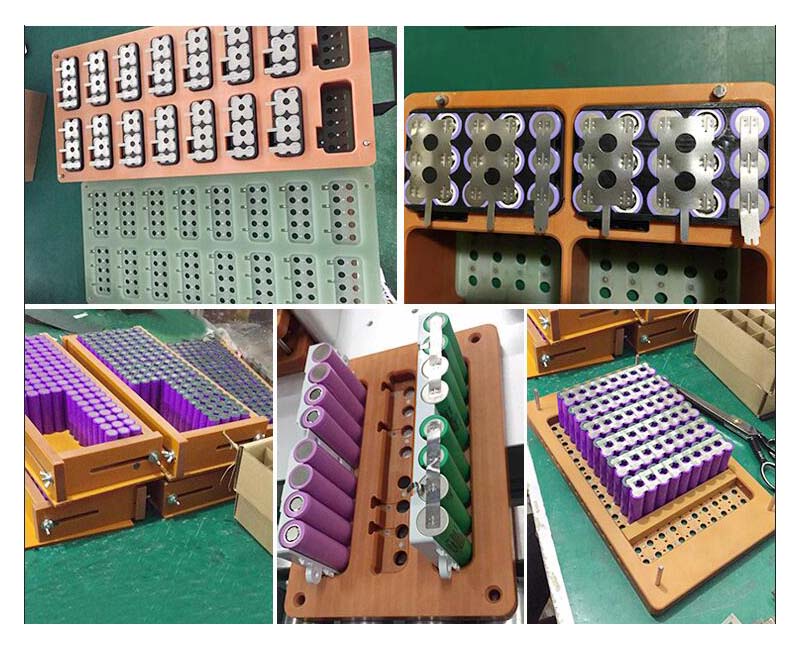

Application:

Power Storage Battery

Power Module Battery

Electric Tool Battery

Photovoltaic Energy Storage Battery


Specifications:

Model

AOT-DH-10000 Single-side Automatic Spot Welding Machine

X-axis travel

540mm (Customized)

Y-axis travel

380mm (Customized)

Welding thickness

0.12mm-0.3mm (Welding power optional)

Spot welding speed

0.7s / point; 1500pcs / h

Welding head spring pressure range

1.0-0.5kg

Maximum speed of motor drive

1000mm/s

The maximum number of batteries loaded

300pcs (standard 18650 lithium battery)

Number of groups for storing files

99 groups

Operating system

Embedded control system + man-machine interface

Transmission

Stepper + imported precision linear guide (optional servo + screw)

Power supply

Single-phase 220V±10% / 50Hz±10%

Power

<1000w

Air supply

0.3 ~ 0.4Mpa

Application

Storage Battery Pack, Electric Bicycle Battery; Power Battery Welding

Weight

200KG

Dimensions

About 1000mm*1000mm*1800mm


Equipment configuration:

Item

Spare parts

Brand

1

Servo motor

PANASONIC / FUJI

2

Stepping motor

LEADSHINE / HUICHUAN

3

Solenoid valve

AIR TAC

4

Support base

NSK

5

Linear guide rail

HIWIN

6

Power Supply

MINGWEI

7

Sensor

OMRON/CHEVEN

8

Button & Indication light

GONCON

9

Electric relay

DELIXI
