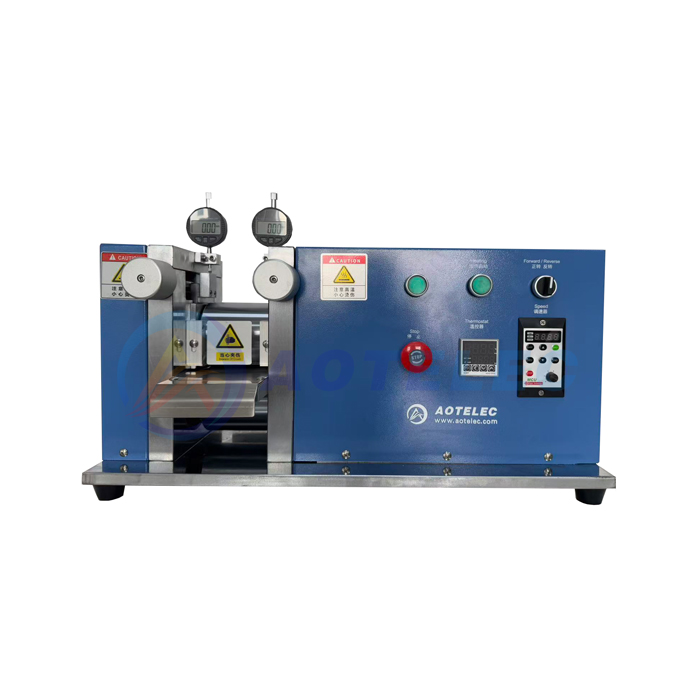

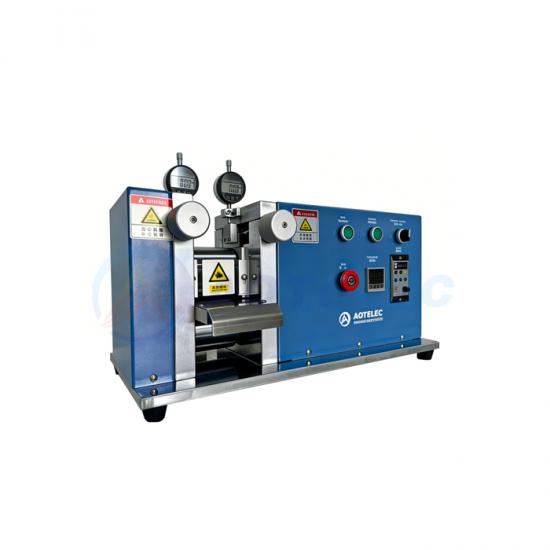

The battery thermal roll press is a key equipment for forming lithium battery electrode sheets, mainly used in the roll pressing process of positive and negative electrode sheets. Through precise temperature control and pressure application, it enhances the density and bonding strength of the electrode sheets, shortens the lithium-ion transmission path, and reduces the thickness rebound by approximately 50%. It is suitable for both laboratory research and mass production scenarios, and can significantly optimize the battery's energy density, cycle life, and fast charging performance. It is an indispensable core equipment in lithium battery manufacturing.
Characteristics
The core features of the battery hot roll press machine are precise control, strong adaptability and high efficiency and reliability. The heating system can precisely regulate the temperature between 80-200℃, ensuring the processing accuracy of the electrode sheets. It can flexibly adapt to positive and negative electrode sheets and different active materials, taking into account both laboratory research and mass production needs. The pressure is uniform and stable, which can increase the compaction density and bonding strength of the electrode sheets, reduce thickness rebound, and at the same time help optimize key performance indicators such as battery energy density and cycle life. The operation is efficient and the running is stable.
Technical Parameters:
|
Item Name |
electric roller press for Battery Electrode Calendering |
|
Power |
1400W |
|
Voltage |
220V/50Hz (110V 60Hz can be customized) |
|
Rolling width |
200mm |
|

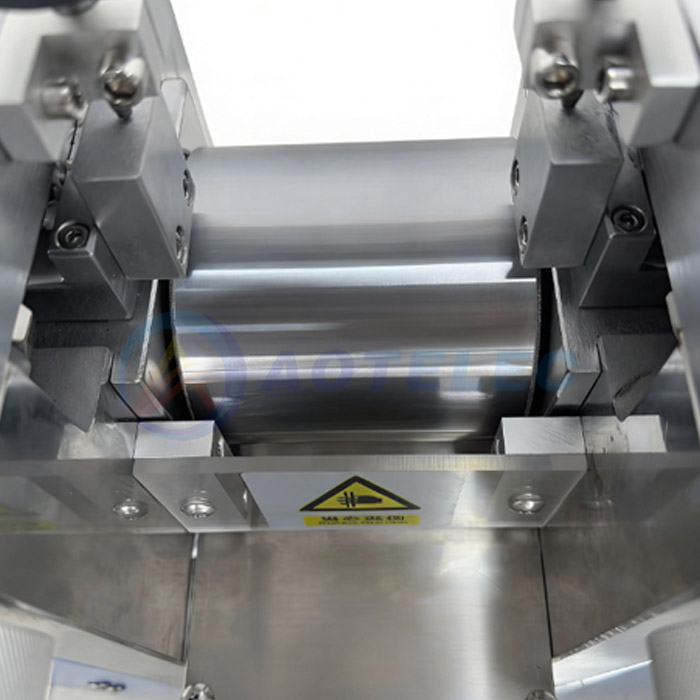

Roller diameter |
100mm |
|
Roller material |
Imported material 9CR2MO |
|
Surface hardness |
HRC62 |
|
Roll surface finish |
>0.8um, Hard chrome plating will never rust |
|
Pressing gap |
0-3mm adjusted |
|
Rolling speed |
0~8m/min, adjusted |
|
Max heating temp |
130℃ |
|
Dimension |
L800mm*W320mm*H320mm |
|
Weight |
110KG |
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
