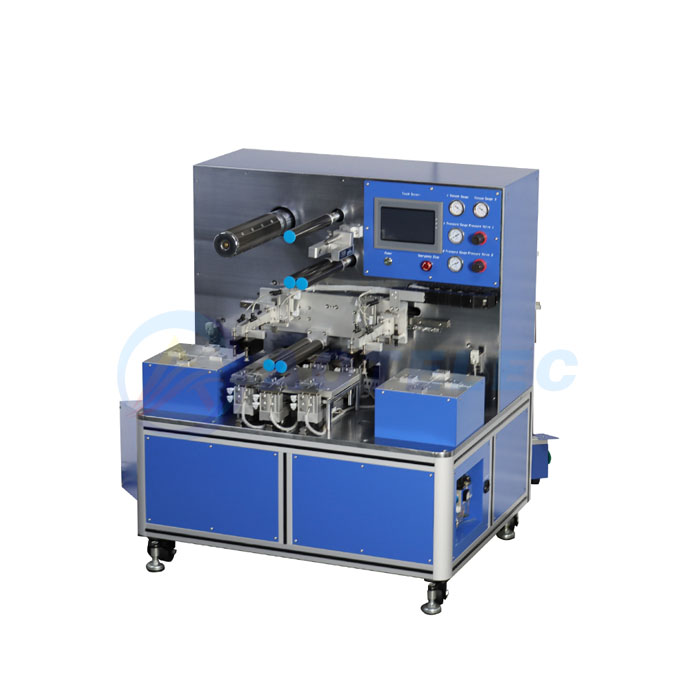

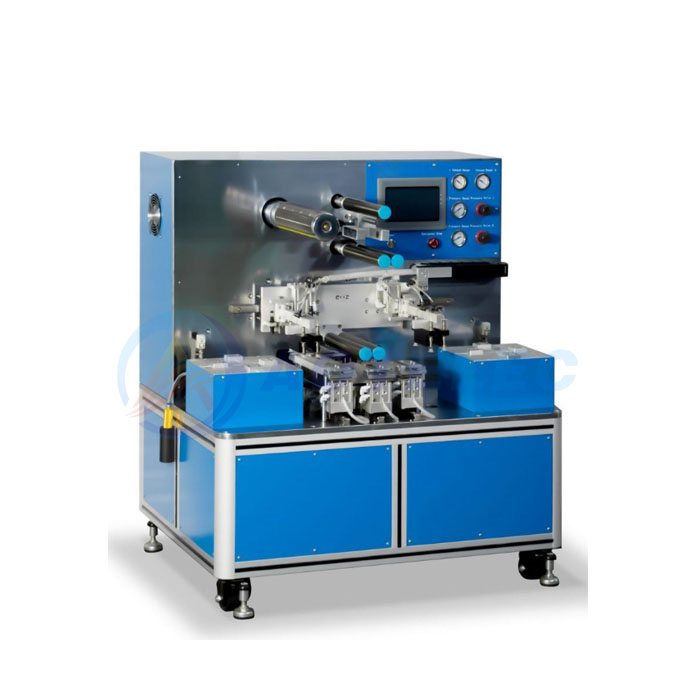

Mainly used for lithium cell positive, negative electrode and separator Z-shaped stacking assembly. The position correction and stacking process of human fixture and subsequent pole film are fully automatic, with high stacking efficiency and high stacking accuracy. Different sizes can be achieved by adjusting the fixture, which is very suitable for the development and sample production of stacking lithium-ion batteries. The equipment adopts single cantilever structure design, coil separator automatic constant tension control, automatic correction control.
Product features
The adjustment, operation and maintenance of the machine are simple and easy.
The applicable range of electrode cell lamination dimensions is wide.
Semi-automatic laminating, tension balancing control system;
Automatic counting and reset function;
Power outage and automatic restoration to the last-used parameter settings after disuse function;
The battery size range applicable to the entire machine is wide.
The cylinder movement is controlled by a foot-operated switch.
The adjustment, operation and maintenance of the machine are simple and easy.
High working efficiency, equipped with a digital timer;
|
Product model |
AOT-BDP200-C |
|
Stacking precision |
The degree of alignment is better than ±0.5mm. |
|
Sheet thickness(Including the length of the end plates) |
Minimum: 44mm × 44mm (Smaller sizes require replacement of the die) Maximum size: 200mm × 150mm (the tab is on the long side) |
|
Sheet thickness |
Maximum 12mm (If thicker, a new adjustment plate is required) |
|
Diaphragm diameter |
Max. 220mm |
|
Installation dimensions |
1000×800×1240mm |
|
Power supply |
Single-phase voltage: 220VAC ± 10% (customizable to 110VAC), frequency: 50Hz/60Hz, power: 200W |
|
Operating environment |
It is recommended that the environmental temperature be maintained at 25 ± 3℃, with humidity ranging from 30% to 90%. There should be no vibration or electromagnetic interference. |
|
Air source |
0.4 to 0.6 MPa compressed air |
