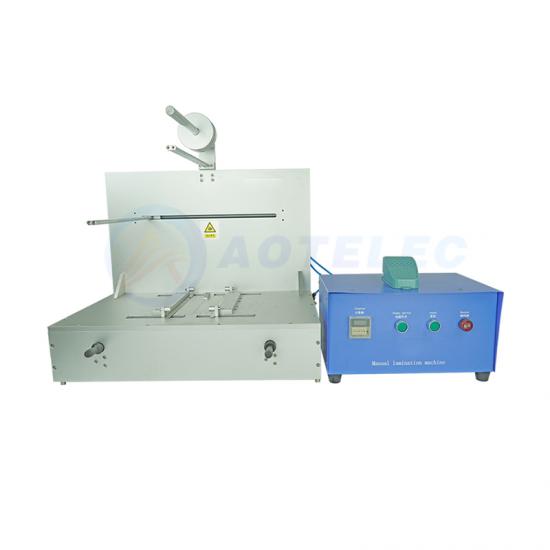

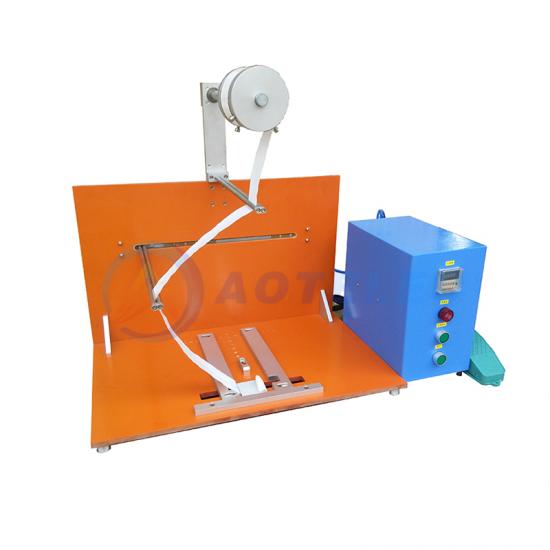

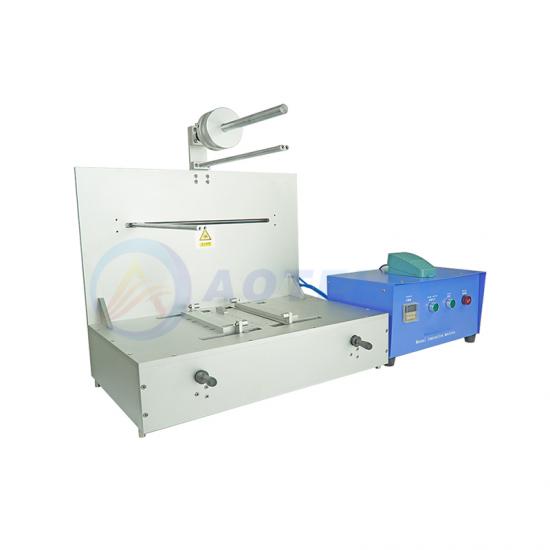

Pouh Cell Stacking Machine AOT-DP200 is a semi-automatic laminating machine.
It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell battery.
This is used for lithium battery stacking process, put the cathode, anode electrode and battery separator Z shaped lamination.
Features:
1.Desktop, easy to operate.
2.Exquisite appearance, sheet metal using three-dimensional geometric design, concise and beautiful.
3. Large size range of electrode lamination.
4. High efficiency, with digital display counter.
Specifications：
|
Product Name |
Pouh Cell Stacking Machine AOT-DP200 |
|
Working Voltage |
110/220V ± 10%, 50/60 Hz |
|
Max. Power Consumption |
200 W |
|
Stacking Layer Length |
L(0-200)mm, W(0-200)mm |
|
Max Separator Feeding Diameter |
Φ200 mm |
|
Swing Roll Moving Stroke |
300 mm |
|
Air Pressure Requirement |
0.4 - 0.7 MPa (Air Compressor is not included.) |
|
Machine Dimensions |
650mm (L) x 400mm (W) x 700 mm(H) |
|
Controller Dimension |
200mm (L) x 300mm (W) x 380 mm(H) |
|
Weight |
30 kg |
|
Warranty |
One year limited warranty with lifetime support |
