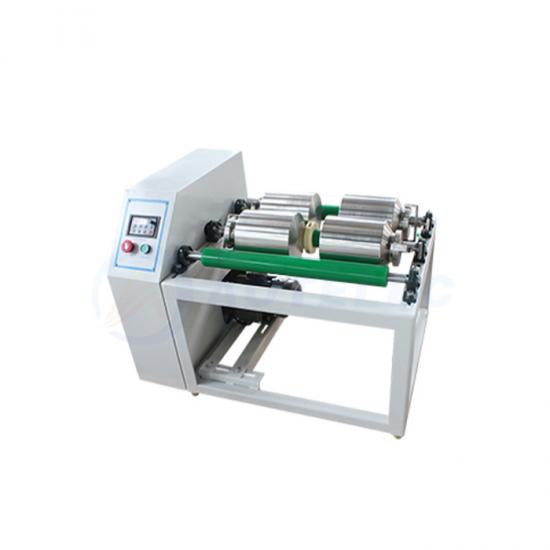

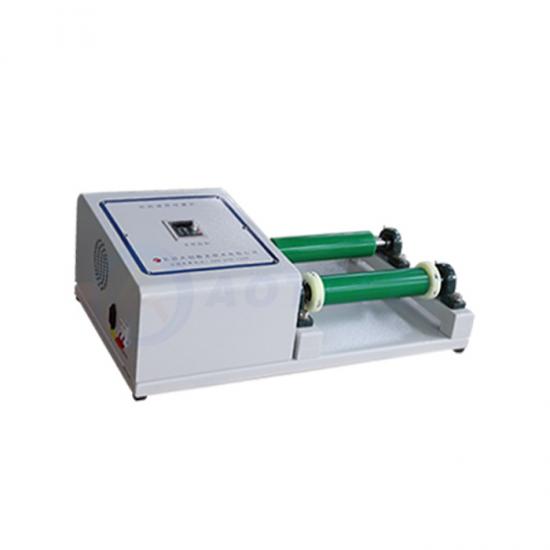

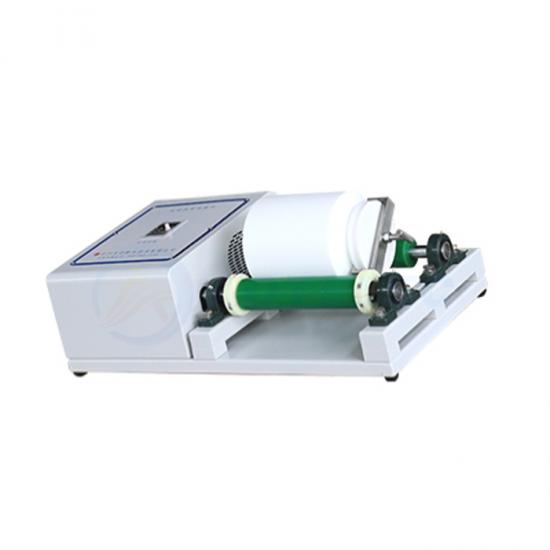

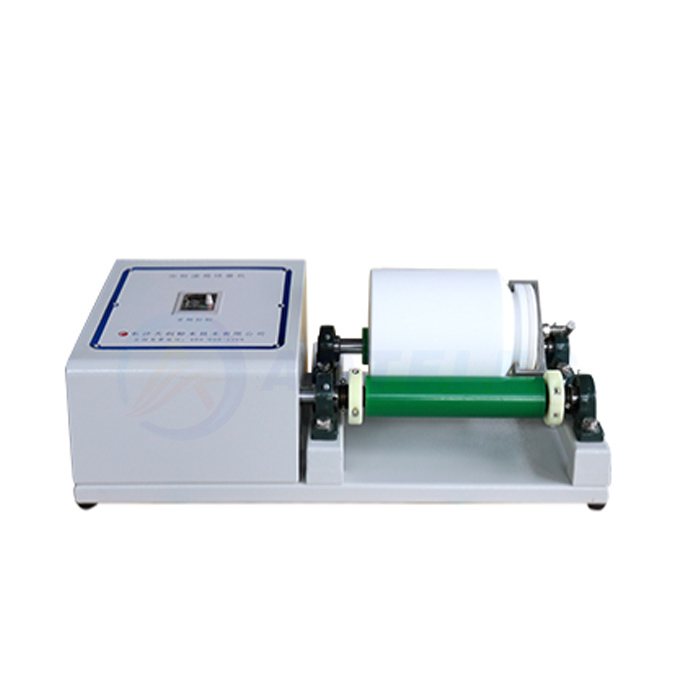

Introduction to Laboratory Tumbling ball mill：
When the laboratory drum ball mill is operating, the grinding media and the materials inside the cylinder rotate together with the cylinder and rise to a certain height. Due to the force of gravity, they separate from the cylinder wall and fall along a parabolic path. The materials are crushed under the impact of the grinding media and the friction and shear effects produced by the rolling and sliding of the grinding media.
Characteristics of the drum ball mill：
1. This machine has a compact structure and is easy to operate.
2. It has high efficiency and uniform grinding particle size.
3. By adjusting the driven rubber roller, it can be used with ball milling tanks of different outer diameters within a certain range.
4. It is convenient to change the tank, and it can be used for both dry and wet grinding.
|
Model |
AOT-QM - 5L |
AOT-QM - 15L |
|
Dimensions / Weight |
730X415X260/32KG |
845x435x270/43KG |
|
Motor model / Power |
YS7124 - 4B3/0.37KW |
YS8024 - 4B3/0.75KW |
|
Conventional power supply |
220V、50/60HZ |
220V、50/60HZ |
|
Main roller rotational speed (rpm) |
60~570±10 |
60~570±10 |
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
