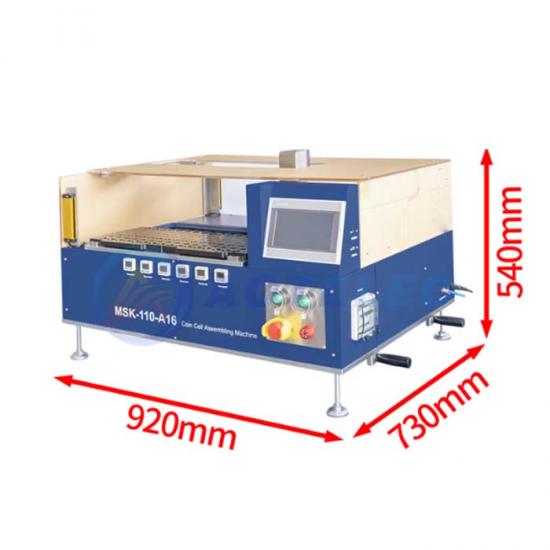

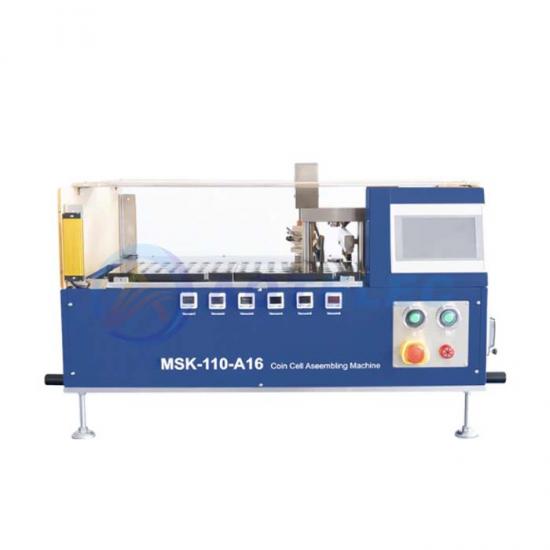

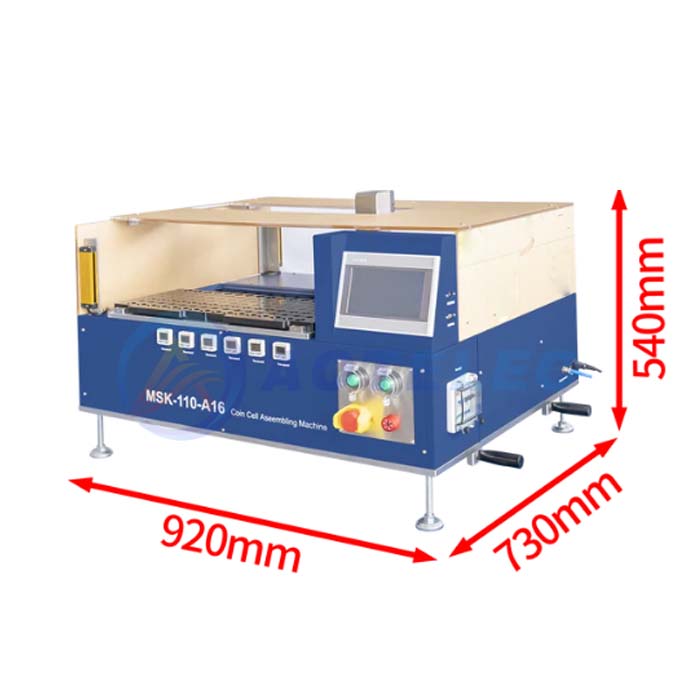

AOT-MSK-110-A16 is a bench-top high through 16 channels automatic assembling machine for CR20XX or other series coin cells with 20mm Dia.MSK-110-A16 is a bench-top high through 16 channels automatic assembling machine for CR20XX or other series coin cells with 20mm Dia.
|
Features |
· Easy touchscreen control · Automatic assembly: assemble in sequence, injection of electrolyte, and sealing of cells · Suitable for use in glove boxes and dry rooms ( Double-sided glove box is recommended) · The amount of electrolytes and the number of injections are settable · Equipped with a built-in vacuum pump · 16 coin cells are assembled in a sequence with high throughput
|
|
Power |
· Single Phase AC110V, or 220+10%V AC, 50/60 Hz, 200 W |
|
Assembling Sequence for Coin Cell |
· For CR2032 coin cells, there are two assembling sequences are available (the positive assembling sequence is regarded as the default mode since Jan 2025): . Positive Assembling Sequence: "cathode case, cathode disc, separator, anode disc, spacer, spring, and anode case". · Negative Assembling Sequence: "anode case, anode disc, separator, cathode disc, spacer, spring, and cathode case". · Other series of coin cells are available upon request, please contact MTI for more information. · Different assembling sequences can be customized upon request.
|
|
Consumable Sizes |
To get the desirable electrode and separator size, please consider the customized cutting die with MSK-T10. If customer prefers the Wave Spring, we can customize the vacuum manipulator to meet the requirement.
|
|
Assembling Efficiency |
· Approximately 90 seconds per cell · It can make 16 cells within 24 minutes
|
|
Loading Method |
· Pre-load material manually, then assemble coin cell automatically |
|
Positioning Accuracy |
· +0.1mm accuracy |
|
Assembling Accuracy |
· Better than ±0.5mm |
|
Sealing Pressure |
· Sealing pressure adjustable · For the CR20 series coin cell, 500-700KG sealing pressure is recommended
|
|
Injection Pump |

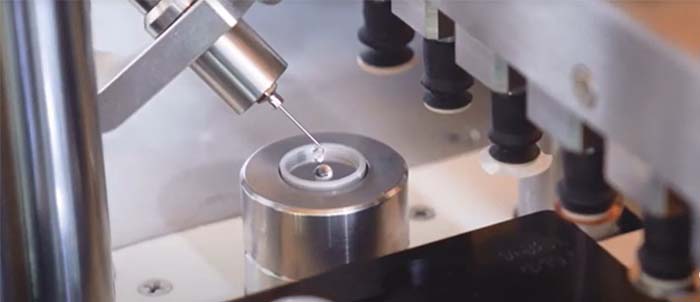

· Equipped with a peristaltic pump with adjustable Injection volume |
|
Electrolyte Jar |
· One glass-made electrolyte jar is included · Capacity: 100ml Max.
|
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
