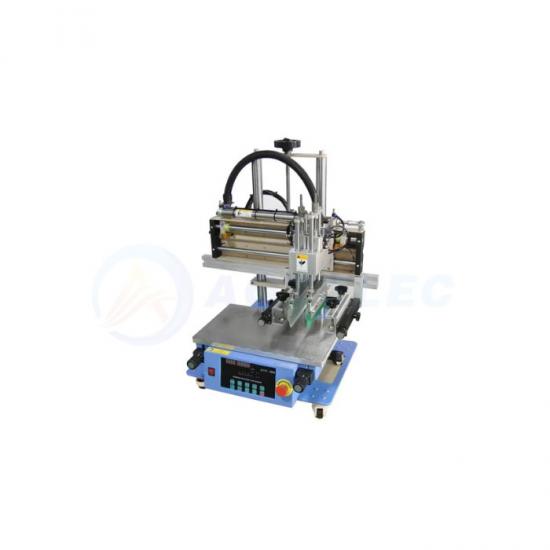

AOT-EQ-SPC-3050 is a benchtop precision screen printing machine driven by compressed gas with a coating area of 300 mm x 500 mm. It is a cost-effective tool for making various film coating with patterns and can be used for making flexible rechargeable battery electrodes, OLED, or thermoelectric devices.
|
Product Model |
AOT-EQ-SPC-3050 |
|
Features |
Two types of operation mode: foot pedal and automatic Digital display to count printing number Vacuum chuck for holding the printing sheet faster and easier The printing knife is driven b compressed gas with constant pressure to ensure repeatable quality printing Printing length, width, and blade angle are adjustable for quality printing |
|
Working Voltage |
208 - 240V Single Phase, 50/60Hz For 110V, a 100W Transformer can be purchased separately |
|
Substrate Holder |

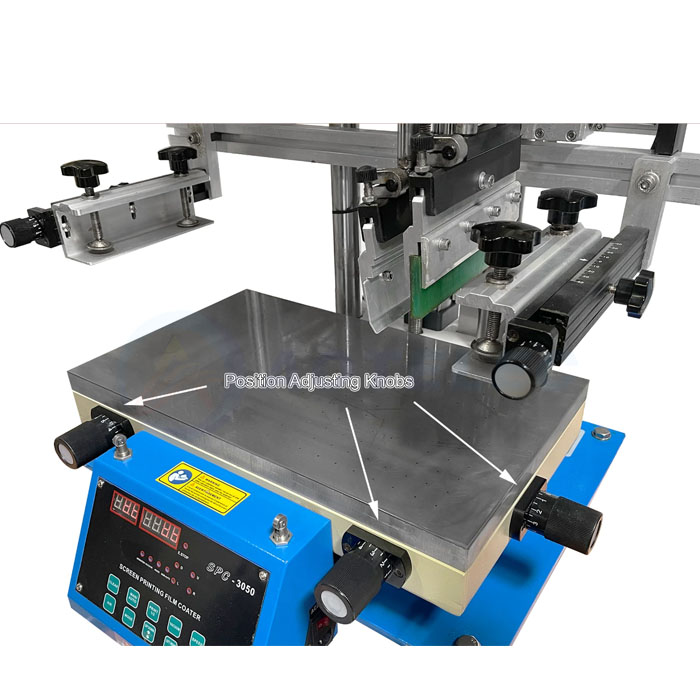

A substrate is held by the vacuum chuck with an area of 300 x 500 mm The vacuum pump is built into the bottom of the machine Effective printing area: 280 x 350 mm Max. Substrate thickness: 0 - 80 mm adjustable The position of the vacuum chuck can be fine adjusted with the knobs. Position adjusting range: X-axis: 10mm to the left and 10mm to the right, total of 20mm Y-axis: 8mm to the front and 8mm to the back, total of 16mm |
|

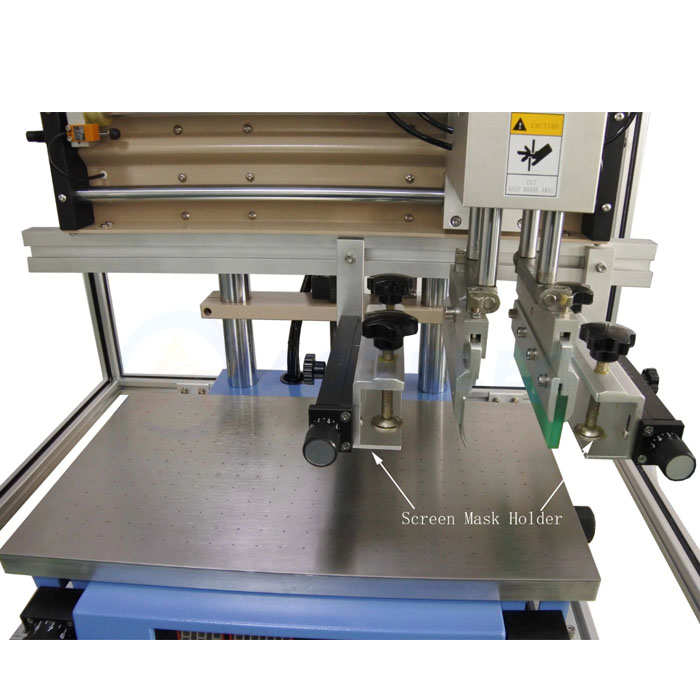

Screen Mask Holder |
Holds Screen Mask within the below range: Length: 300 - 600mm Width: 200 - 350mm The Y-axis position is adjustable via a lead screw. Adjustable range: 30mm inward and 30mm outward, a total of 60mm. |
|
Coating Blade |
Two Squeegee Holders are included with a coating width of 170mm and 250mm. Two Squeegee with a width of 170mm and 250mm are also included for immediate use. The backing blade is used for returning the printing material to achieve automatic continuous printing. |
|
Dimension |

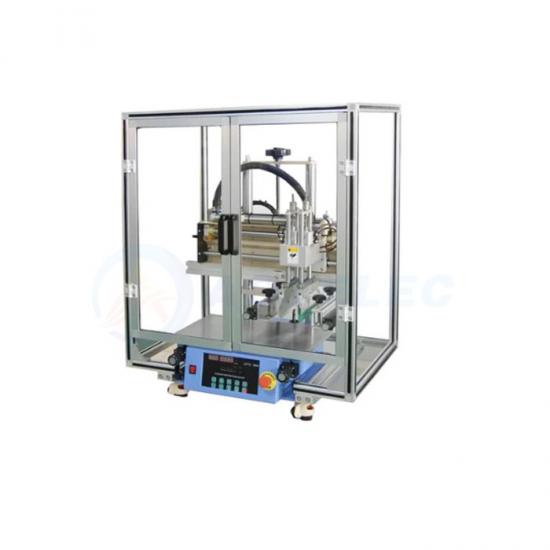

With Protective Shield: 840L × 600W × 1070H (mm) Without Protective Shield: 750L × 500W × 900H (mm) |
|
Net Weight |
90 kg |
