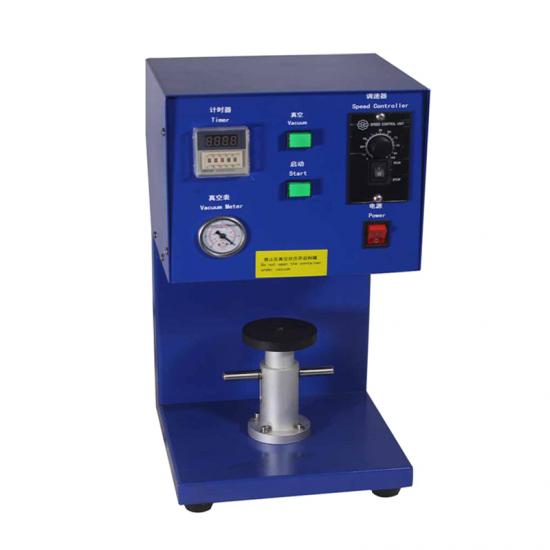

Lab Small Vacuum Mixing Machine for Lithium Battery Raw Materials

This vacuum mixer machine is built in vacuum pump, with high dispersion efficient equipment. It is suitable for battery electrode paste and various ceramic materials mixing.
  • Item NO.:

    AOT-VM-150
  • Lead Time:

    5-15days
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen, China
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

Lab Small Vacuum Mixing Machine for Lithium Battery Raw Materials


This vacuum mixer is built in vacuum pump,with high dispersion efficient equipment. It is suitable for battery electrode paste and various ceramic materials mixing, due to complete the process in vacuum station, fully implemented without air bubbles, improve the filling material and density

Mainly feature:

1.Use soft sealing process, good sealing effect

2.Mixing motor adopts gearbox frequency adjustment, can adjust vacuum speed according to materials feature.

3.Double blade design,make rapid mixing paste.

4.Small overall dimensions, to save space,delicate appearance, simple.

Specifications

Model

Lab Vacuum mixer machine AOT-VM-150

Voltage Input

AC220V / AC110V

Power

150W

Stirring speed

0 ~ 320 RPM; the inverter speed control

Vacuum

≤-90~-95Kpa

Accessories volume

150 ml stainless steel vacuum drum, can be customized

Mixing time

0 ~ 9999 minutes (can be set)

Oscillation mode

Infinitely adjustable-speed

Dimensions(L*W*H)

About 330*310*510mm

Weight

About 20kg

Warranty

One year limited with lifetime support

Compact Vacuum Mixer for Lithium Battery Lab Research

Lab Compact Vacuum-Mixer with 150ml Mixing Tank

Lab Vacuum Mixer Machine for Lithium Battery Paste Materials
