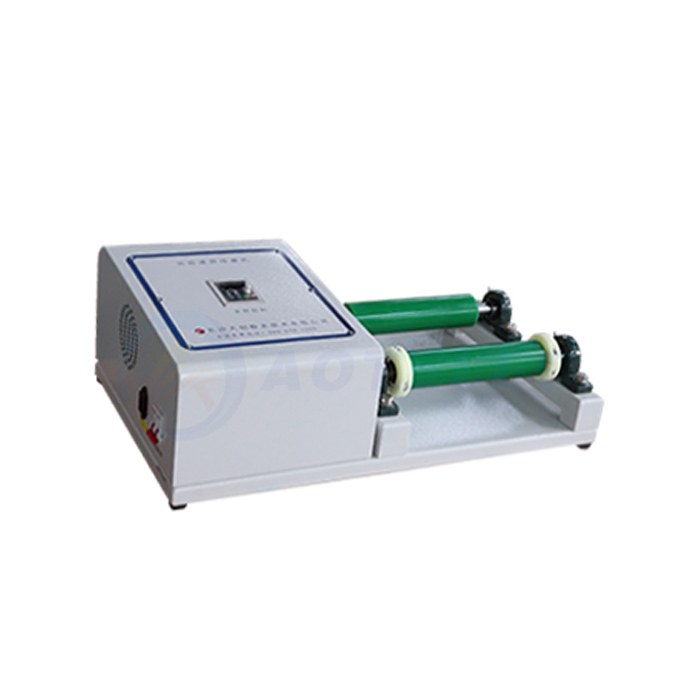

Lab Roll Ball Mill (drum ball mill) is a laboratory, small batch production of ultrafine grinding, mixing equipment. This machine is beautiful and novel, compact structure, easy to operate, high efficiency, uniform grinding particle size, is the scientific research, teaching, testing, production of the preferred equipment. It can be widely used in electronic materials, magnetic materials, biomedicine, ceramic glaze slurry, non-metallic ore, new materials and other industries. This machine has novel appearance, advanced structure and easy to use. The machine tank speed optimization design, the tank is supported by the rubber roller to do the best rotation, can make the grinding of the medium ball in the tank to form a tilting flow motion dispersion material, the best grinding effect, can quickly grind the material to micron level. Can mill (rolling machine) machine adopts digital display time controller control, according to the need can set the working time at any time, and has the suspension, cumulative timing control function, the operation saves time and labor, easy and convenient.

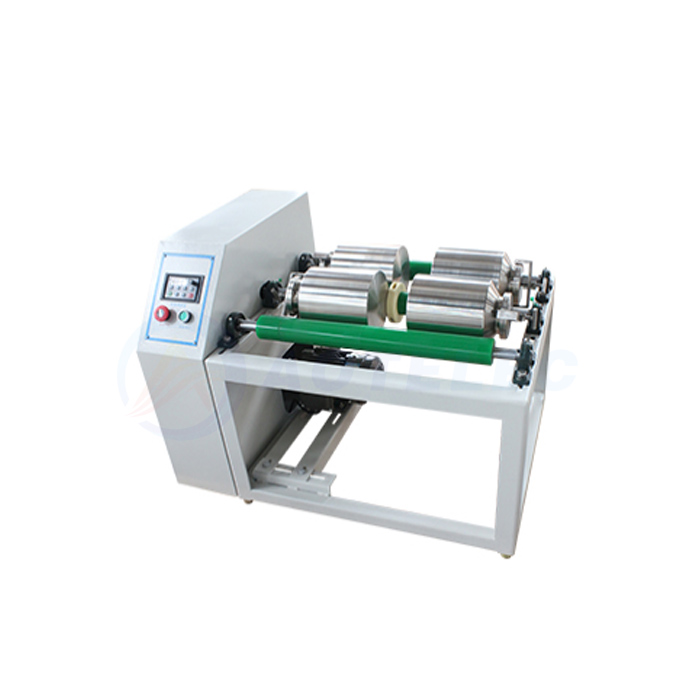

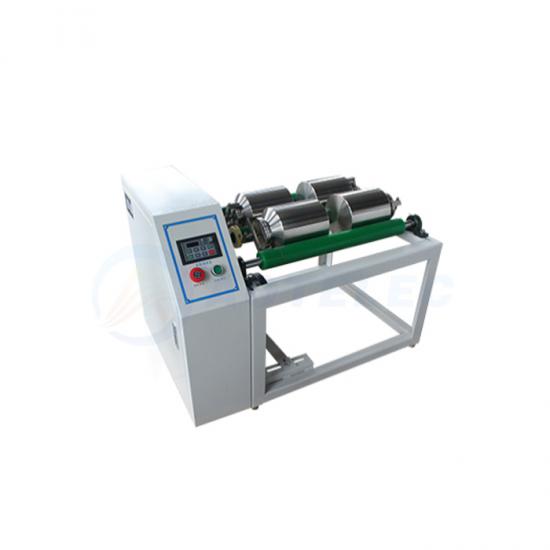

Key features of Tianchuang Powder Four-Position Tank Grinding Machine
1. It can grind 4 samples simultaneously;
2. It can operate intermittently or continuously;
3. It can be set to operate at a certain time interval as per requirements;
4. It is suitable for fine grinding of materials, with high crushing efficiency;
5. The bearing rollers of the tank body are made of special materials and are durable.
|
Model |
AOT-GQM-4-5 |
AOT-GQM-4-5 (Double-layer) |
AOT-GQM-4-15 |
AOT-GQM-4-20 |
|
Overall Dimensions/Weight |
950X660X690/70KG |
950X480X870/(92KG) |
1130X800X690/95KG |
1350X820X690/122KG |
|
Motor Model/Power |
YE2-80M2-4B3 /0.75KW |
YE2-80M2-4B3 /0.75KW |
YE2-90L-4B3 /1.5KW |
YE2-100L1-4B3 /2.2KW |
|
Normal Power Supply |
220V, 50/60HZ |
220V, 50/60HZ |
220V, 50/60HZ |
380V, 50/60HZ |
|
Main Roller Speed (rpm) |
50 - 410±10 |
50 - 410±10 |
40 - 365±10 |
40 - 340±10 |
|
Hand Crank Dev |
Optional |
Optional |
Optional |
Optional |
|
Protective Cover |
Optional |
Optional |
Optional |
Optional |
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
