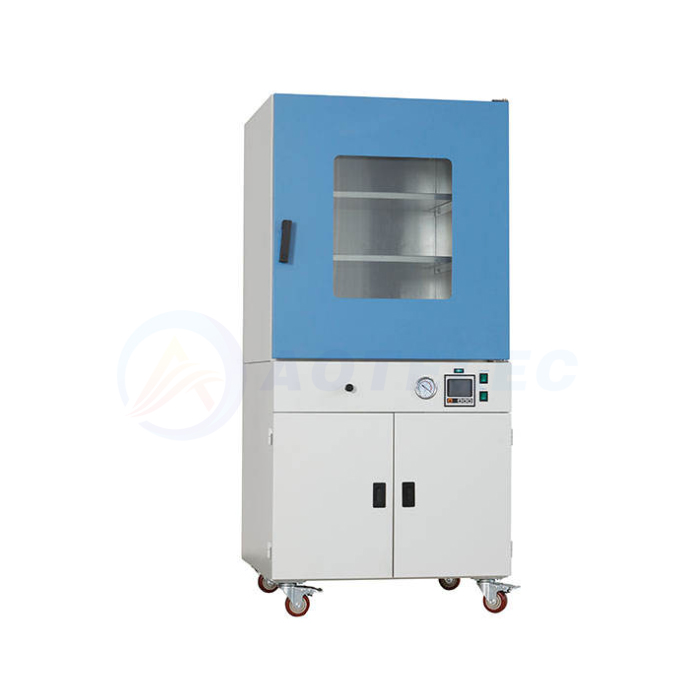

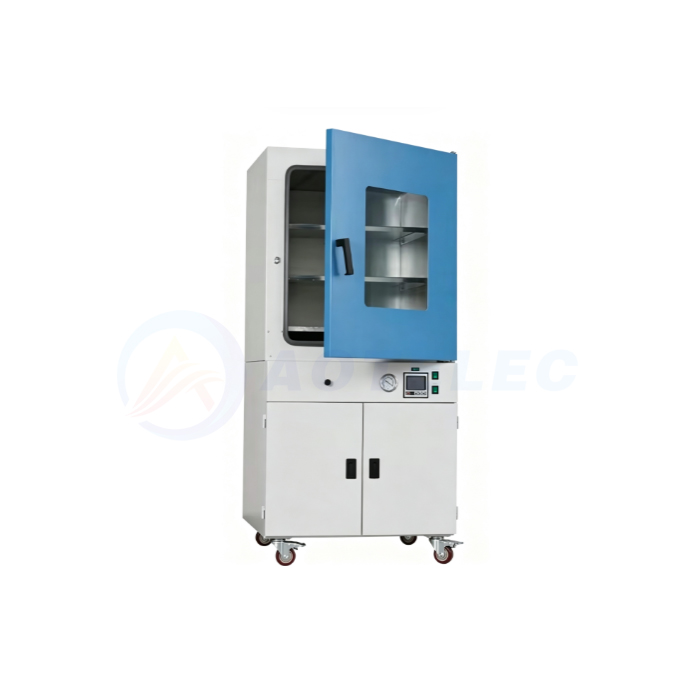

1.Product Description
Thec'cis specifically designed for drying heat-sensitive, easily decomposable, and oxidizable substances. It can be filled with inert gas (optional), allowing for rapid drying of items with complex compositions. It is suitable for industrial and mining enterprises, medical schools and hospitals, and scientific research institutions to perform drying and heat treatment under vacuum conditions.
2.Main features
Adopting a streamlined domestic arc design, the casing is made of cold-rolled steel plates with a surface treated by electrostatic spraying;
The temperature control system of this machine adopts a microcomputer single-chip design, featuring temperature control, timing, and overtemperature alarm functions;
Adopting dual-screen high-brightness digital display, it provides accurate and intuitive readings, demonstrating superior performance;
Touch-sensitive buttons for setting and adjusting parameters, with timing and clock functions;
The inner liner is made of stainless steel, with a semi-circular design featuring four corners for easier cleaning;
The tightness of the door of this machine can be adjusted by the user as desired, and the integrally formed silicone rubber door seal ensures high vacuum inside the box;
The working chamber of this machine is designed as a rectangular structure to maximize the effective volume. The door is made of tempered and bullet-proof double-layer glass, allowing users to observe the contents of the working chamber at a glance.
3.Technical Specifications
|
Capacity |
210L |
|
Temperature range |
room temperature +10~250℃ |
|
Temperature fluctuation |
0.5℃ |
|
Temperature resolution |
0.1℃ |
|
Vacuum degree |
< 133Pa
|
|
Timing range |
1-9999 minutes |
|
Inner liner size |
560*640*600mm |
|
Inner tank material |
High-quality SUS304 stainless steel is used |
|
Overall dimensions |
720*805*1680mm |
|
Outer box material |
cold-rolled sheet with plastic spraying |
|
Insulation layer |
70mm thick ultra-fine glass wool |
|
Number of partitions |
3 |
|
Temperature control instrument |
LCD display |
|
Analog vacuum gauge |
1 piece |
|
Vacuum pump |
4L/S (rapidly evacuates the interior of the box to vacuum within less than 10 minutes), available for purchase
|
|
Sealing |
The sealing ring is made of anti-aging silicone rubber, ensuring excellent sealing performance Accessory materials: The vacuum tube is a corrosion-resistant hose (not stainless steel), and the heating tube is a nickel-chromium alloy heating tube
|

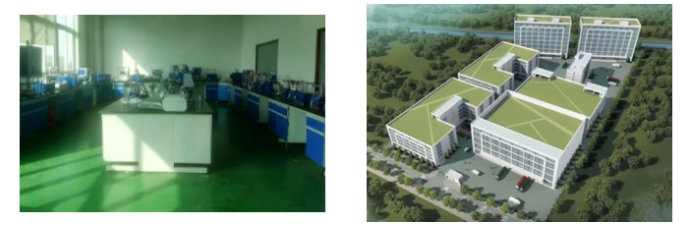

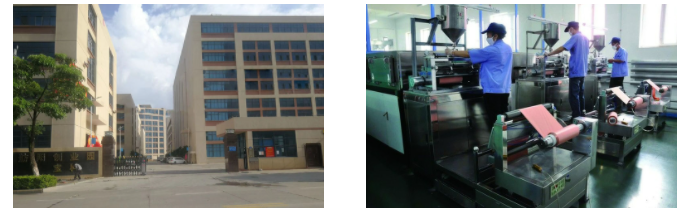

Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market bettery and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
