*Product Overview

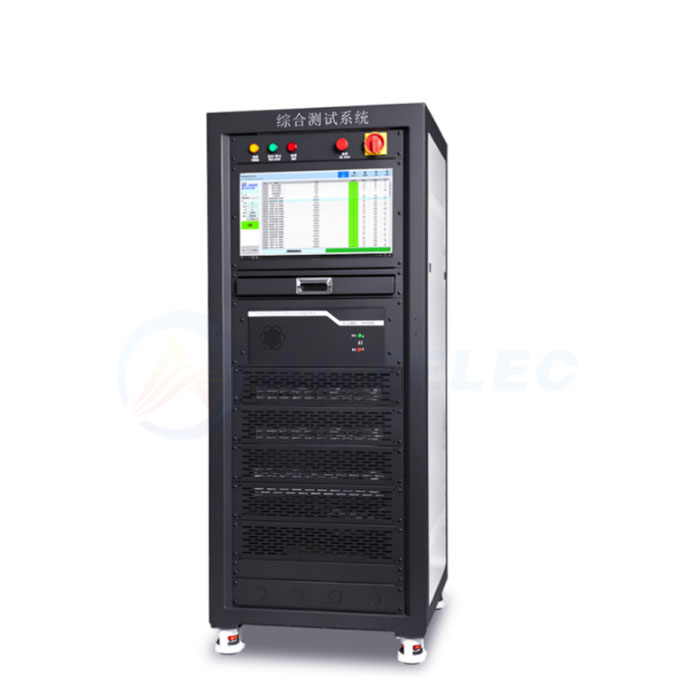

The battery comprehensive testing system, also known as the battery comprehensive performance testing system or battery comprehensive tester, is a device used to test the comprehensive performance of finished and semi-finished battery packs. After manual wiring, the system automatically tests and determines whether it is qualified, and records data automatically. The upper computer developed based on the ASP.NET platform has powerful data processing capabilities, is stable and reliable, and can save test data in real-time to the database and upload it to the MES system.
*Product Features
Modular design of the whole machine, strong stability and reliability, easy maintenance and upgrading;
It has the functions of charge discharge reverse connection protection and reverse connection prompt;
The main control chip adopts high-performance ARM, ensuring smooth and stable device operation;
Using a 24 bit ADC, it has higher precision in voltage and current testing than the industry;
The upper computer software operation interface is concise and clear, the sequence of testing steps can be edited, and the testing parameters can be adjusted;
The voltage and current are sampled using a four wire system, which has high voltage sampling accuracy and good long-term stability;
Support one-dimensional code and two-dimensional code, support scanning code start/foot pedal start;
Test data can be automatically saved, with a powerful database for easy quality traceability.
*Parameters
|
Model |
AOT-DC-20V50C1000D |
|
Power |
Charging power: 1KW Discharging power: 20KW |
|
Communication input interface |
1.Input single-phase AC220V ± 10% 2. Input current: maximum 7A 3. Frequency 50Hz |
|
Voltage test range |
±20V |
|
Charging voltage range |
0~20V |
|
Discharging voltage range |
5~20V |
|
Charging current range |
0.1~50A |
|
Charging overcurrent protection current range |
0.1~50A |
|
Discharging current range |
0.1~1000A |
|
Discharging overcurrent protection current range |
0.1~1000A |
|
Voltage accuracy |
±0.05% of F.S±0.05% of F.D |
|
Charging current accuracy |
±0.2% of F.S±0.5% of F.D |
|
Discharging current accuracy |
±0.2% of F.S±0.2% of F.D |
|
Charging and discharging time |
0~20S |
|
Overcurrent delay time |
0~20S |
|
Accuracy of discharge overcurrent test |
±1A |
|
Accuracy of charging overcurrent test |
±1A |
|
Voltage resolution |
1mV |
|
Current resolution |
1mA |
|
Voltage and current detection sampling |
Four wire connection |
|
Data save mode |
Save data in CSV file format |
|
AC impedance （ACR） |
1~20000mΩ |
|
DC impedance （DCIR） |
1~20000mΩ(Customizable discharge current and time) |
|
Short circuit protection test time |
1~5000us |
|
Minimum short-circuit internal resistance test for short-circuit protection |
15mΩ |
|
Communication method |
RS232 serial port (computer and device) |
|
Cooling method |
Forced air cooling |
|
Dimension（W*D*H） |
680*850*1710mm |
|
Temperature |
-20℃~50℃ |
|
Humidity |
10-90%RH |
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer
