1.Overview:

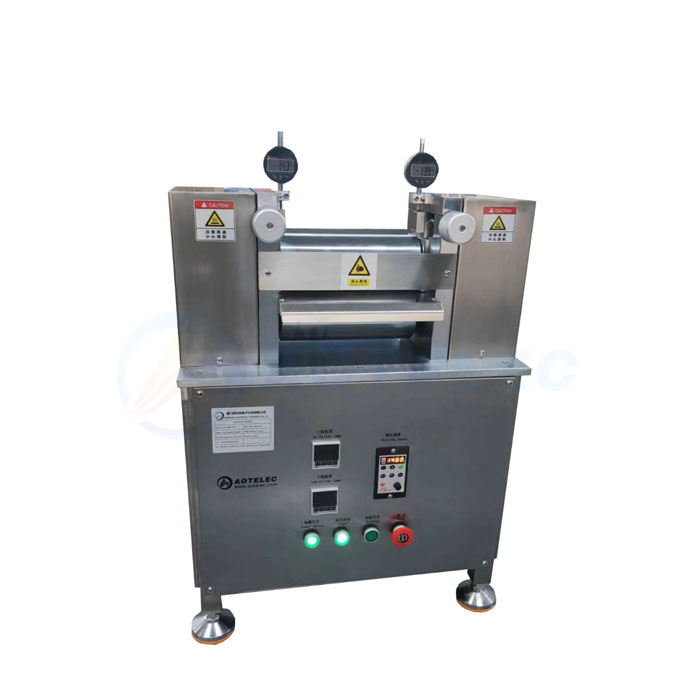

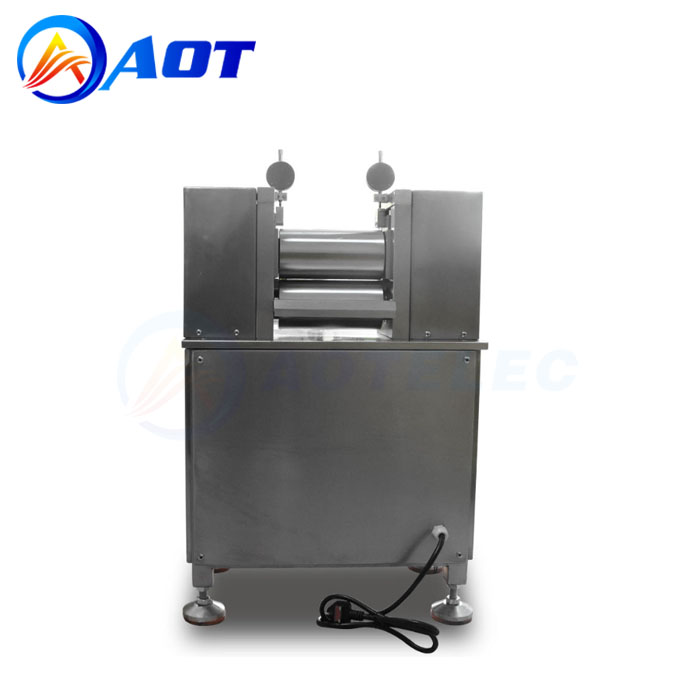

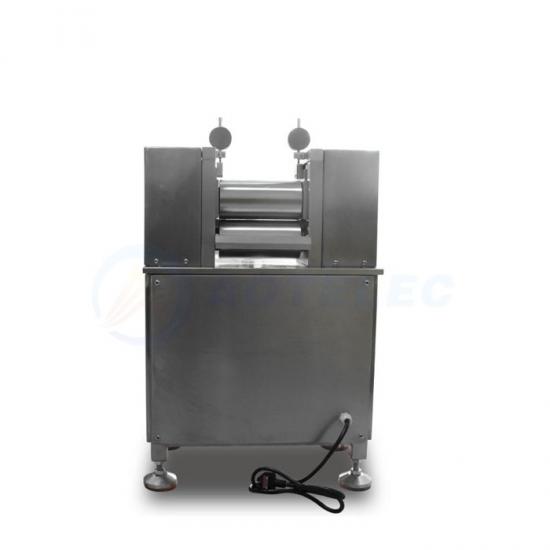

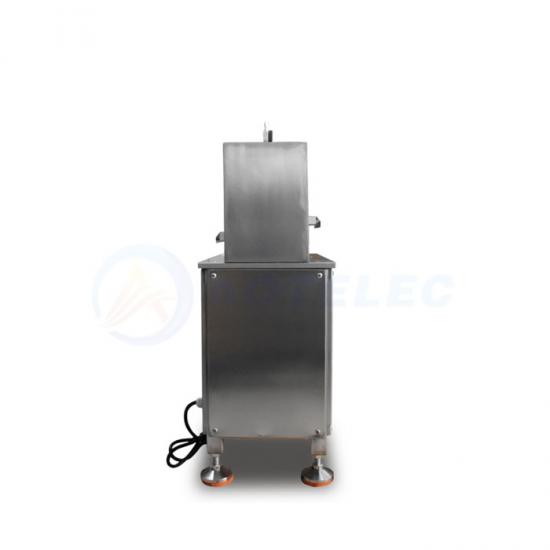

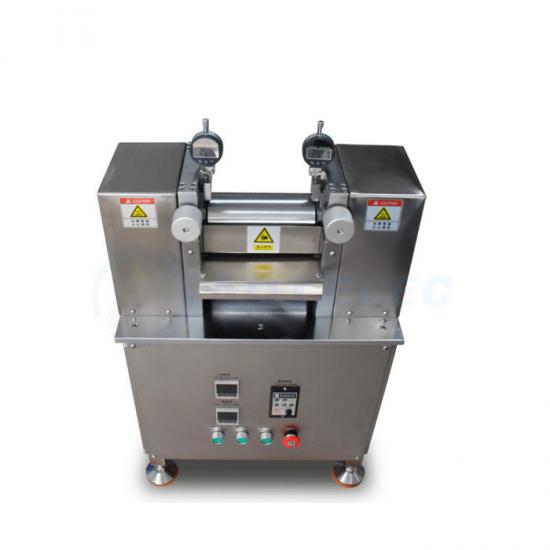

This type of roller press is dedicated to small lithium electrode sheet rolling process, using a single 220V power supply, suitable for colleges and universities and enterprise test line use. Heated roll rolling mill designed for materials researchers, suitable for battery materials in the laboratory, a small amount of gold and silver and other precious metal materials, copper and aluminium and other non-ferrous materials hand-rolled, rolling thickness adjustable, easy to operate. Especially suitable for clean energy materials lithium battery plate thinning and increase density.
2.The working principle:
This equipment is driven by a speed reducer motor to drive the high hardness pressure roller, and mechanically adjust the gap of the pressure roller, so as to make the pole plate be pressed and shaped, and increase the density of the pole plate.
3.Technical Parameters:
|
Product Model |
AOT-HRP-300C |
|
Power |
220V、3.5KW |
|
Temperature of rollers |
about 200°C |
|
Size of pressure roller |
Φ100mm×400mm |
|
Roll surface hardness |
HRC62 |
|
Roll cylindricity |
≤±2μm |
|
effective gap |
0-3mm adjustable |
|
working speed |
stepless variable speed, line speed 0-4.0 m / min adjustable |
|
Working width |
maximum 400mm |
|
Roll surface quenching depth |
5mm |
|
Maximum pressure |
5T |
|
Dimensions |
900*400*850mm |
|
Weight about |
160kg |
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
