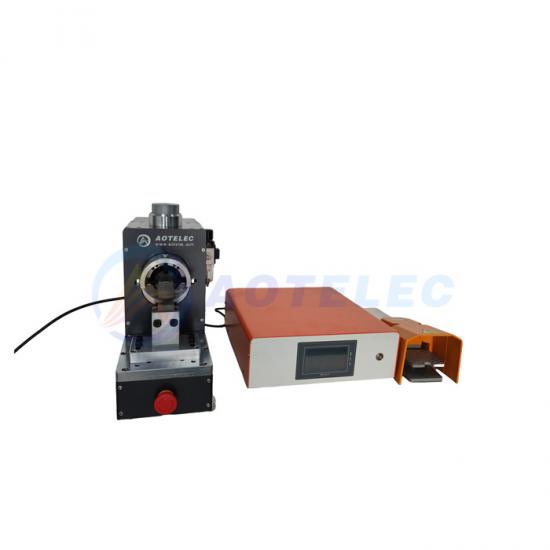

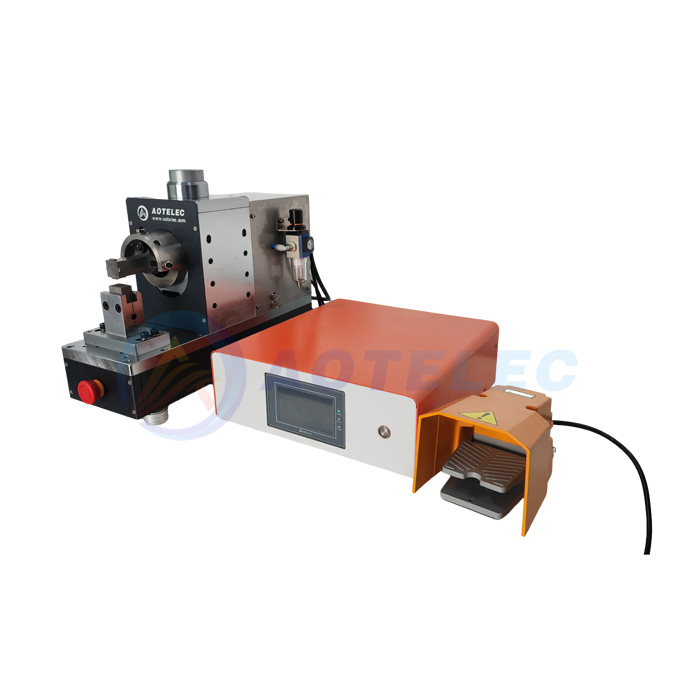

2000W 20KHz Ultrasonic Spot Welder Machine for Pouch Cell Tab Welding

This 2000W ultrasonic spot welding machine is mainly used for pouch cell 10-30 layers battery tab welding.
  • Item NO.:

    AOT-USW-2000W
  • Lead Time:

    10-15days
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen, China
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

2000W Ultrasonic Metal Spot Welding Machine for Pouch Cell Tab



Features:

1. Generator: It adopts automatic tracking constant current technology with stable performance and intelligent control mode.

2. Machine head: mechanically precise and stable, equipped with integrated cooling system.

3. Transducer system: German Tektronix chip is adopted, and the power output is strong and stable.

4. Ultrasonic upper and lower welding head, using German steel raw materials, using superb processing technology, product durability, long life, smooth point.

5. Welding materials: aluminum foil, aluminum foil, copper foil, copper foil, nickel foil



Specifications

Equipment Model

Ultrasonic Spot Welding Machine AOT-USW-2000W

Input Voltage

AC220V (+5%-10%),50/60Hz

Air Pressure

0.2-0.6Mpa

Max output power

2000W

Frequency

20KHz

Power regulating range

Automatic frequency tracking, power adjustable0~100%

Automatic frequency tracking accuracy

±5HZ

Power stability

≤ 5%

Remote terminal dynamic response time

≤10ms

Overcurrent protection current

10A

Overcurrent protection time

100ms

Overheat protection temperature

85℃

Working Temperature

+5℃~ +50℃

Dimension

Power box:420mm*380mm*200 mm

Welding machine:510mm*280mm*400 mm

Net Weight

Power box:10kg, welding machine:45kg

Warranty

Welding head 6 month, machine is 1 year

2000W Ultrasonic Spot Welder for Pouch Cell


Company Profile


Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.


Exhibition


AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.


Certificate


Cooperative


FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).


Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.


Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.


Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
