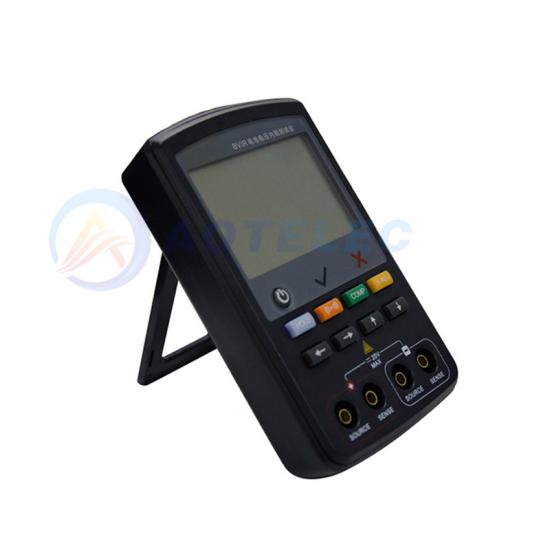

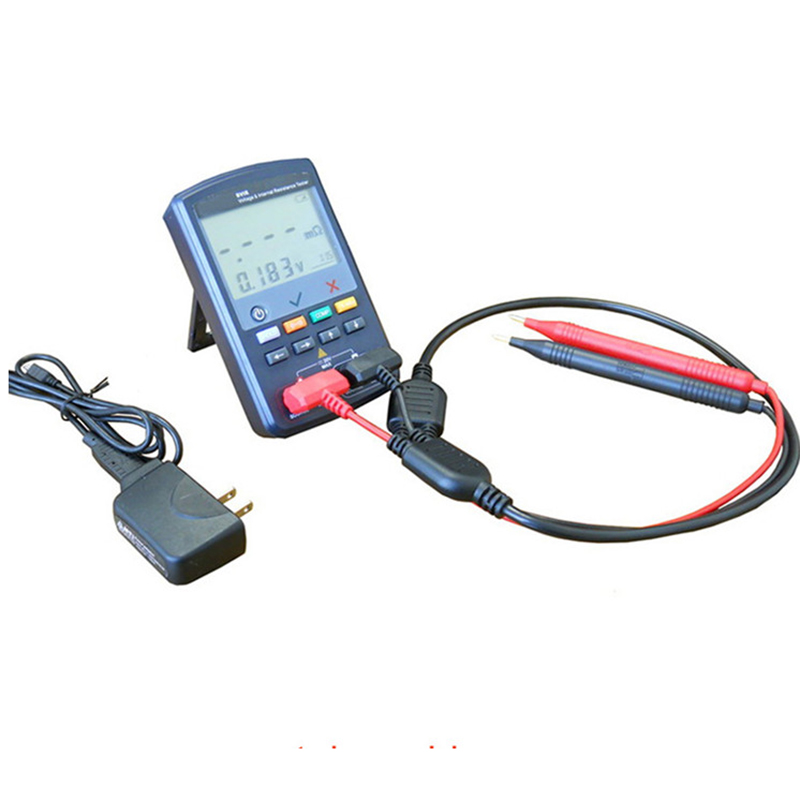

Portable Internal Resistance and Voltage Tester
AOT-BVIR Battery internal resistance tester can be used for measuring the Internal Resistance and Open Circuit.
such as Secondary battery, Lead acid battery, Nickle cadmium, Nickle-metal Hydride and Li-ion battery.
Product Name |
Battery Internal Resistance Tester AOT-BVIR |
||
Tester Method |
AC 4 terminals |
||
Voltage |
Voltage Measurement |
0~20V |
|
Precision |
0.1% |
||
Resistance |
Resistance Measurement |
20mΩ\200mΩ\2000mΩ Auto/Manual Switch |
|
Precision |
0~200mΩ |
1% |
|
201mΩ~2000mΩ |
3% |
||
A/D |
12 Digits SAR Comparing |
||
Testing |
Sampling Frequency |
1KHz |
|
Sampling Rate |
1000 times/S |
||
Current |
< AC 20mA |
||
Response |
Refresh 5 times/S |
||
Comparator |
On/Off (Manual) |
||
Number of Comparator |
10Sets |
||
Data Storage |
100,000 Entries |
||
Calibration |
A 100 mOhm Resistor in Standard Package for Calibration |
||
Dimension |
W120*D75*H25(mm) |
||
Weight |
200g |
||
Suggested Environment |
10℃~ 40℃ in temperature and 30% ~ 80% RH in Humidity |
