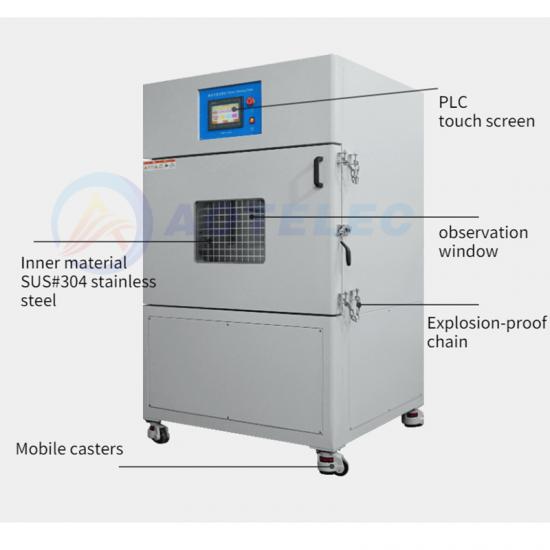

Battery Washing Test Machine For Lithium Battery
The battery cleaner can be used for the following cells and battery packs:
Lithium-ion battery packs for handheld electronic products;
Lithium-ion battery packs for portable electronics that can be carried or used in a pocket;
Other portable electronic products with battery packs that can be carried in a pocket;
|
Product Name |
Lithium Battery Washing Test Machine |
|
Control method |
PLC touch screen control |
|
Drive mode |
Servo motor drive |
|
Solution temperature range |
normal temperature~80℃ (adjustable), common temperature is 45±2℃; |
|
The outer diameter of the test turntable |
Dia500±10mm; |
|
Diameter of test inner barrel |
650mm |
|
Depth of test inner barrel |
600mm |
|
Turntable speed |
1-999r/min adjustable |
|
Inner box material |
SUS304 stainless steel; |
|
Outer box material |
cold-rolled steel plate paint treatment; |
|
Test time |
0-9999H/M/S adjustable; |
|
Temperature control method |
P.I.D control; |
|
. Washing solution |
configure a solution with a pH of 11.0±0.1 (a NaOH solution with a mass fraction of 0.004% can be used), and heat the solution to |
|
Immersion |
Fix the sample on the rotating device (washing paddle), then place the sample in the solution (the height of the battery center |
|
Inner box size |
W900xD900xH645mm |
|
Dimensions |
W1200xD1150xH1880mm |
|
Equipment weight |
230KG |
|
Power |
6KW |
