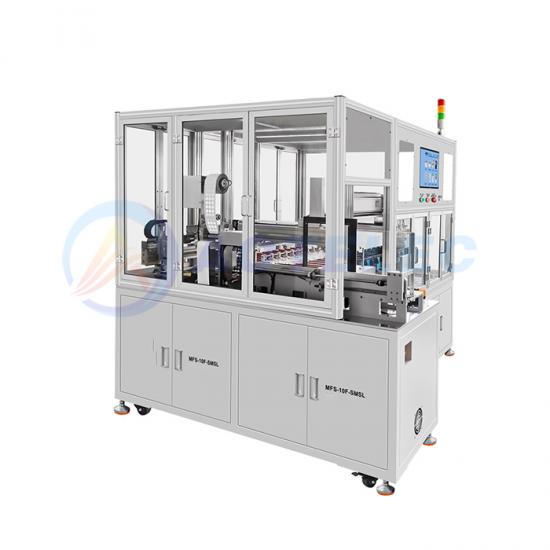

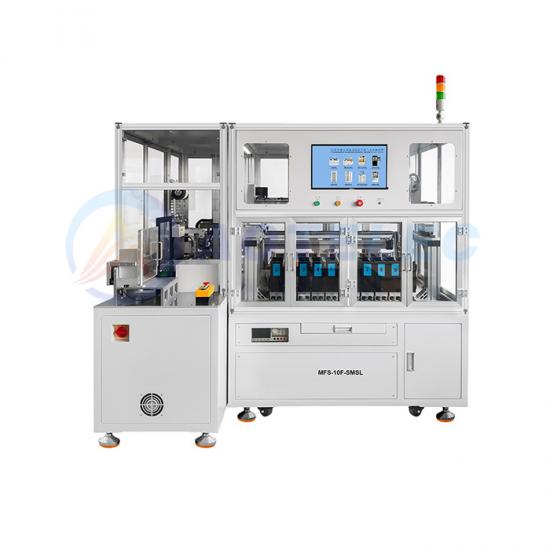

This equipment is an integrated automatic processing device for barley paper of cylindrical lithium batteries,Battery Sticker, sorting and material collection. It adopts high-precision positioning and intelligent detection technology to achieve precise adhesion of barley paper, rapid sorting of battery parameters and orderly material collection, with fully automatic operation throughout. It effectively reduces manual intervention, improves labeling accuracy and sorting efficiency, reduces losses, and is suitable for the production needs of various specifications of cylindrical lithium batteries, helping to enhance the quality and efficiency of the battery manufacturing process and promote intelligent upgrading.
Product features
1、The knife mold is not sticky, and the highland barley paper fits firmly and uniformly, which does not affect the following process.
2、With high precision internal resistance, voltage, automatic test system. According to the set internal resistance voltage value, the cell can be accurately sent to the specified gear.
3、Automatic sticker machine and 10 channel sorter are integrated, double position whole box feeding, high efficiency and labor saving.
4、The test data is stored in batches, with its own saving function. The bar code corresponds to the test voltage internal resistance data, and the data is permanently saved and can be downloaded and extracted.
5、The scanner is equipped with an inductive switch, which automatically scans the bar code on each cell when it senses the cell.
6、The automatic receiving function can automatically put the cell into different receiving boxes, with full material alarm function to improve work efficiency.
|
Product name |
Lithium battery sticker & sorter& receiving integrated machine |
|
Model |
AOT-10F-SMSL |
|
Control system
|
PC + industrial control
|
|
Input voltage |
AC 220V+10% 50Hz |
|
Feeding mode |
Double position whole box feeding |
|
Equipment air pressure |
0.6~0.8Mpa |
|
Work efficiency |
4200pcs- 4500pcs 1H |
|
Sorting speed |
80-100PPM |
|
Scope of application
|
Cylindrical lithium battery (model can be customized) |
|
Size(LxWxH) |
1450x1 100x 1650mm |
|
Receiving channel
|
10 sorting group channels, including one unqualified channel |
|
Voltage measurement accuracy
|
Range 0-20V, basic accuracy +0.01 %rdg, resolution 0.1mV |
|
Internal resistance detection accuracy |
Range 0-30mQ accuracy 士0.5%rdg, resolution 0.1mQ |
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
