200mm Hot Rolling Press Machine for Battery Electrode Calendering

Lab roller press machine with heat function suitable for increasing active material density of the battery electrode.
  • Item NO.:

    AOT-HRP-H150-200
  • Lead Time:

    15-25days
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen, China
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

Hot Rolling Press Machine With 200mm Heatable Steel Rollers For Battery Electrode

Description

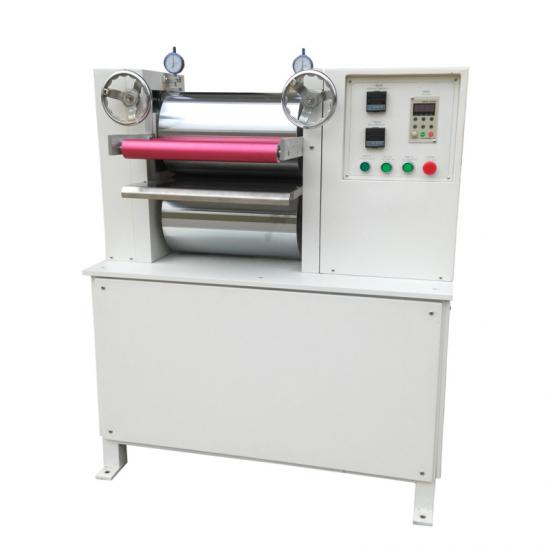

1 AOT-ERP-H150-200 Roll Press Machine is a compact precision Roll Heat Press Machine . It has dual rollers of 150mm diameter and 200mm width with dual dialgauge. This lab roll press machine is an ideal Hot rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

2 This model Electric Calender is mainly used for small electrodes in the rolling process, suitable for use by universities and enterprises experiment line, make the battery electrode compression molding, increased density.

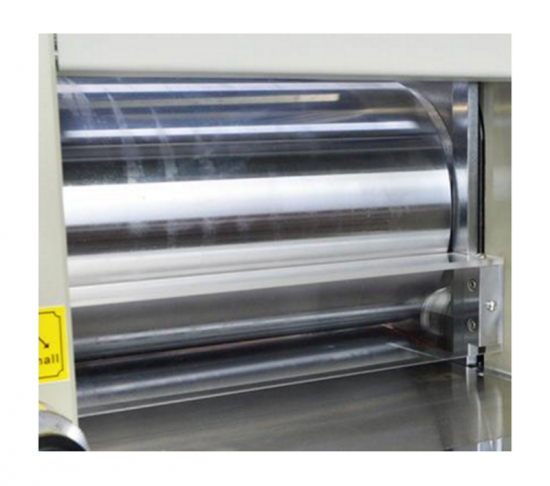

3 It has a pair of 200mm width steel rollers. The roller can be heated up to 120℃.

Specifications

Model

200mm Heat Roller Press Machine AOT-HRP-H150-200

Working Voltage

110V / 220V AC single phase selectable

Power

6000W Total

Warranty

Two years limited warranty with lifetime support

Roller Dimension

150mm(Dia.) x 200mm(W)

Roller surface hardness

>HRC62

Rolling press accuracy

≤±0.005

Roller surface finish

0.8

Roller surface hardening depth

5mm

Rolling press thickness

0-3 mm adjusted with Dial gauge

Rolling press width

Max 200mm, Customized

Rolling press speed

0-6.5 m/min adjustable

Heating temperature

RT-120℃, can customized to 200C

Application Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.

1 Must use acetone to clean and dry rollers surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet is depend on the physical property of the materials.
