Product Overview

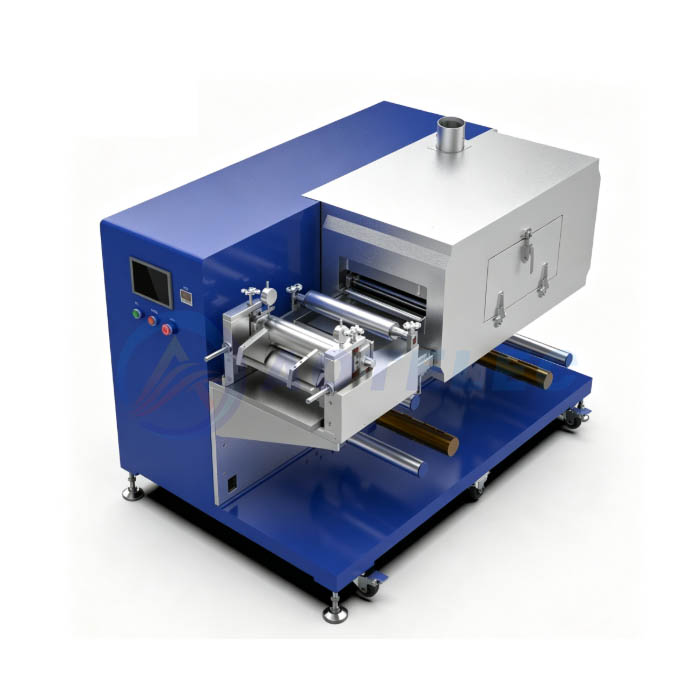

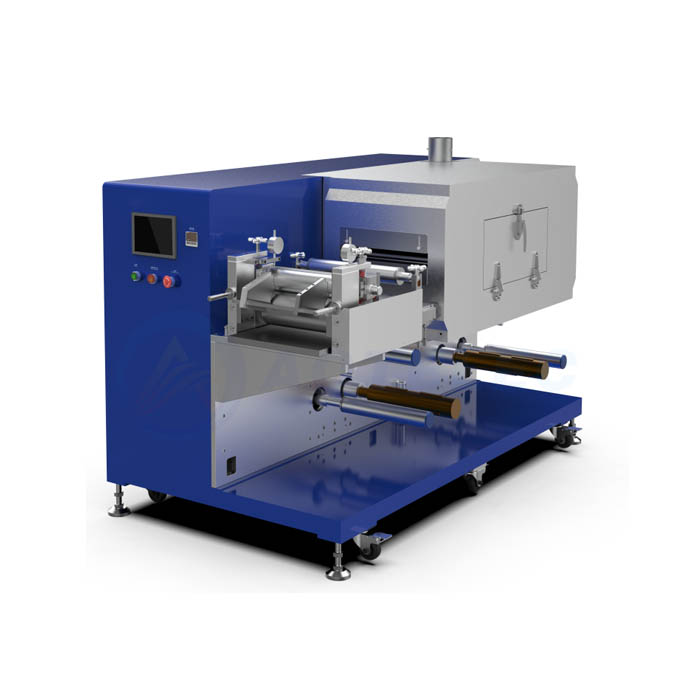

The intermittent experimental coating machine is a 3-roll transfer coating equipment supporting both continuous and intermittent coating modes. It is designed for surface coating processes on various substrates. Widely used in the lithium-ion battery industry, this unit is engineered to facilitate researchers while delivering coating precision and consistency comparable to mass-production equipment, paired with excellent drying performance. It serves as an ideal R&D and pilot-scale tool for lithium-ion batteries, supercapacitors, nickel batteries and other secondary batteries.
Key Features
l Freely switch between continuous and intermittent coating modes
l Substrate tension control for stable web travel, equipped with web guiding deviation correction system
l Hot air drying oven with dual-sided top & bottom air blowing for superior drying effect
l 3-roll transfer coating design with a wide process window
l Comma blade metering paired with precision adjustment mechanism for high coating accuracy
l PLC control with touchscreen operation for user-friendly handling
l Optional solvent recovery treatment unit
Technical Parameters & Main Equipment Configuration
1. Main Equipment Components
|
Component |
Origin |
|
PLC |
OMRON / Panasonic (Japan) |
|
Touchscreen |
Weinview (Taiwan, China) |
|
Intermediate Relay |
Yijia |
|
Servo Motor |
Yaskawa / Panasonic (Japan) |
|
Temperature Controller |
OMRON (Japan) |
|
Automatic Web Guiding Deviation Corrector |
Photoelectric deviation correction type |
|
Automatic Tension Controller |
Servo-controlled |
|
Main Unwinding/Winding Servo Motor |
Panasonic (Japan) |
|
Deep Groove Ball Bearings (Coating Head) |
NSK / NTN |
|
Coating Roller |
Hard chrome plated |
|
Back-up Roller |
Imported EPDM rubber cladding |
|
Guide Roller |
Aluminum alloy with anodized surface treatment |
|
Air Blower |
Fangyuan Industrial (Guangzhou) |

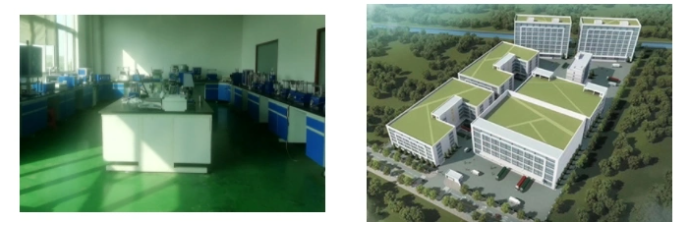

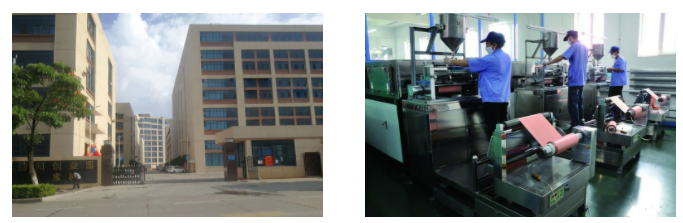

Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
