* Technical specifications
*Equipment operating environment conditions
Air and dust: free from salt containing gases, toxic and corrosive gases; There should be no conductive dust.
Magnetic field and vibration: There is no magnetic field that affects the use of the device and no impact or vibration.
Temperature and humidity: 10℃~35℃/humidity: 10~55RH
Power supply: 380/220ACV ± 10% 50/60Hz;
Compressed air: 0.5~0.7Mpa;
Noise: ≤ 80% dB (measured 1 meter away from the wall)
*Equipment parameters
Whole line production efficiency: 8PPM;
Equipment electrical: AC380V/50Hz;
Total power consumption of the equipment: 22KW;
Compressed air: 0.5~0.7Mpa;
Equipment appearance color: The upper and lower frames are made of aluminum profiles and brown matte finish;
Equipment operation utilization rate ≥ 95%, yield rate ≥ 99%;
Laser welding electrode cleaning

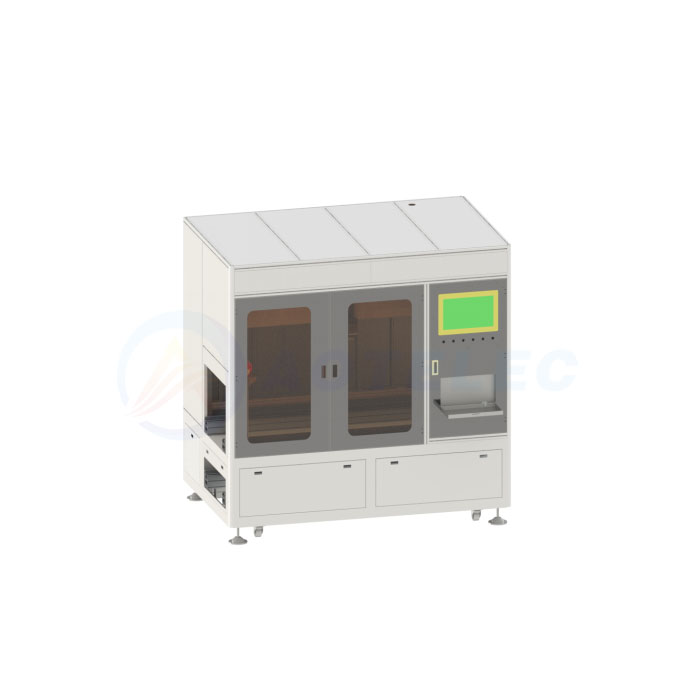

3D Partial Organization Reference Diagram (for reference only, subject to physical object)
*Function description and configuration list:
1. After the mechanism is lifted and positioned, the CCD addressing system performs secondary positioning of the pole position, and then completes automatic cleaning of the pole.
2. Cleaning position accuracy: ≤ 0.2mm.
3. Cleaning coverage area: greater than 80%.
4. Cleaning trajectory: The trajectory can be adjusted arbitrarily, and the power segmentation can be adjusted arbitrarily.
5. Two electrodes/poles can be cleaned at once while meeting the rhythm.
6. Automatic laser cleaning of equipment.
Main configuration list
|
Section |
Spec |
Qty |
|
|
Laser cleaning |
Movement system |
1200*700*300mm |
1 |
|
Mechanical assembly |
Customized |
1 |
|
|
Control system |
HMI |
1 |
|
|
CCD vision system |
Camera: Hikvision |
1 |
|
|
Servo motor |
400 |
4 |
|
|
Industrial control computer |
Customized |
1 |
|
|
Laser device |
200W |
1 |
|
|
Smoke Purifier |
/ |
1 |
|
Laser Welding
3D Partial Organization Reference Diagram (for reference only, subject to physical object)
*Function description and configuration list:
1. The CCD addressing system performs secondary positioning of the pole position, the pressure head component presses down on the connecting piece, automatically measures the height, and then completes automatic welding.
2. Welding position accuracy: ≤ 0.1mm, with a height difference of about 2mm between the battery cell connection pieces.
3. Welding trajectory: The trajectory can be adjusted arbitrarily, and the power can be segmented and adjusted arbitrarily.
4. Adopting a single pressure head, pressing down one aluminum row at a time.
5. Laser ranging is required during welding, with a resolution of ≤ 0.05mm and a detection repeatability accuracy of ≤ 0.08mm.
Main configuration list
|
Section |
Spec |
Qty |
|
|
Flexible intelligent welding station |
Movement system |
1200*700*300mm |
1 |
|
Mechanical assembly |
Customized |
1 |
|
|
Pressing device |
Customized |
1 |
|
|
Control system |
HMI |
1 |
|
|
Laser system |
Fiber laser |
3000W Continuous |
1 |
|
Galvo Scanning Head |
G320 |
1 |
|
|
|
CCD visual ranging system |
Camera: Hikvision |
1 |
|
Cooling system |
Water cooler |
Dual temperature and dual control |
1 |
|
|
Servo motor |
400 |
4 |
|
|
Industrial control computer |
Customized |
1 |
|
|
Smoke Purifier |
/ |
1 |
