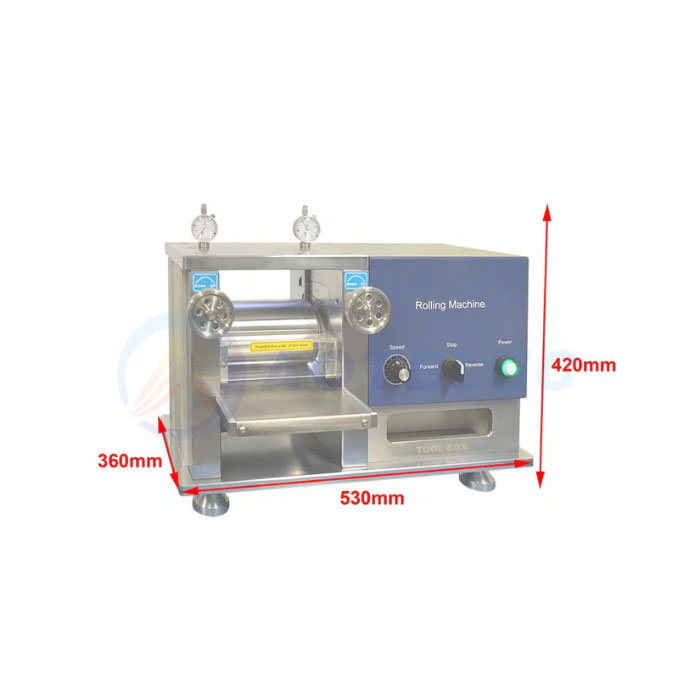

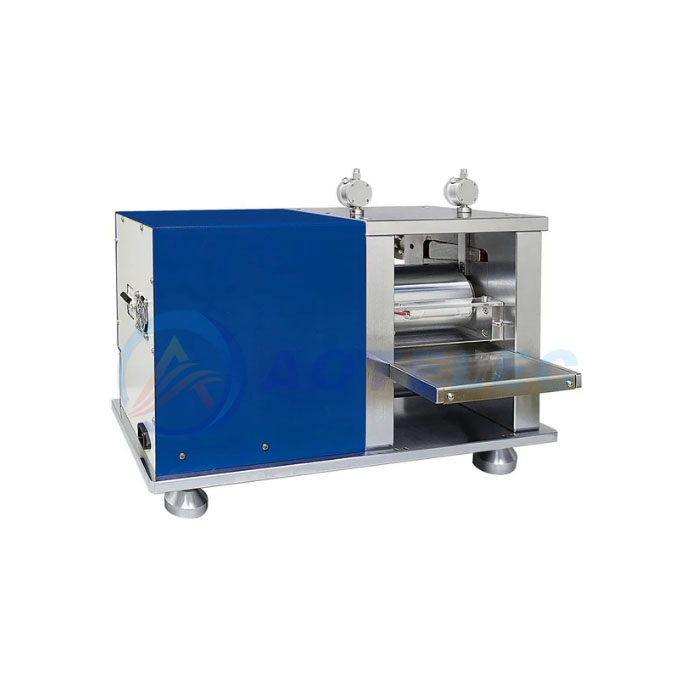

AOT-MSK-2150-DC is a 150mm width (6") precision electric Rolling Speed Adjustable press with a 94 mm diameter roller. It is an ideal rolling press for adjusting the thickness calendaring the material density of the electrodes in Li-Ion batteries research after coating and drying. This calendar machine can be used in AR glove box.
|
Product model |
AOT-MSK-2150-DC |
|
|

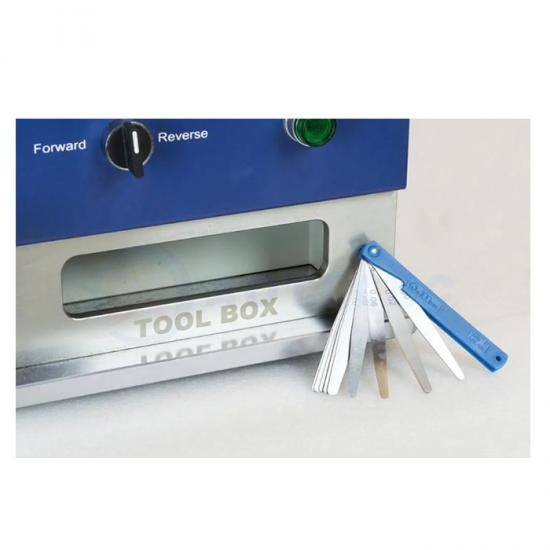

Rolling Speed Adjustable (0 - 25 mm/ second) Heavy-duty steel frame, gears, and handle Roller size: 150mm width x 94mm Dia (dual rollers), made of hardened steel (RC > 60) with Cr electroplated coating Dual micrometer for accurate thickness adjustment in the range 0 - 3 mm. (Pic. 1) Built-in toolbox for easy operation & safety barricades (front and behind rollers) (Pic. 2) The lighting on the back of the roller for sample observation. (Pic. 3)
|
|
Rolling Gap |
0 mm ~ 1.0mm |
|
Rolling Speed |
Max. 50 mm/ second (Rolling Speed Adjustable) Forward, Stop and backward switchable |
|
Torque Capability |
850N |
|
Surface Hardness of Rollers |
HRC 60-62 Never roll materials with hardness > 50HRC Note: The benchtop rolling press is not suitable for calendering thick metals. For applications with such needs, please consult with MTI engineers. |
|
Digital Micrometer |
Range: 0 - 10mm Resolution: 0.01mm (or 0.001in) Unit interchangable (mm / in) Zeroing Power supply: CR2032 3V Li-ion battery Operating temperature: 0 ~ 40°C |
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
