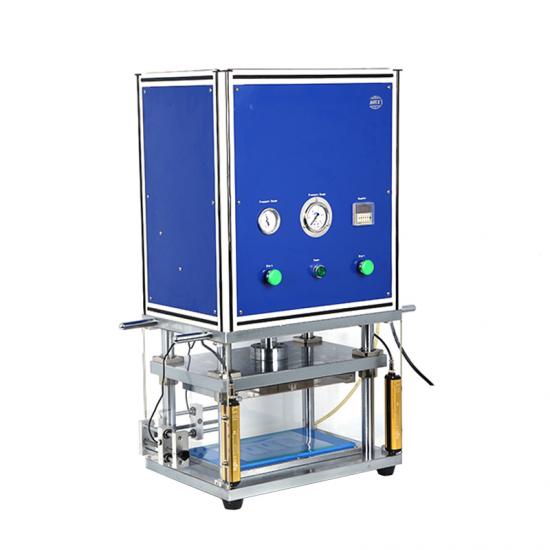

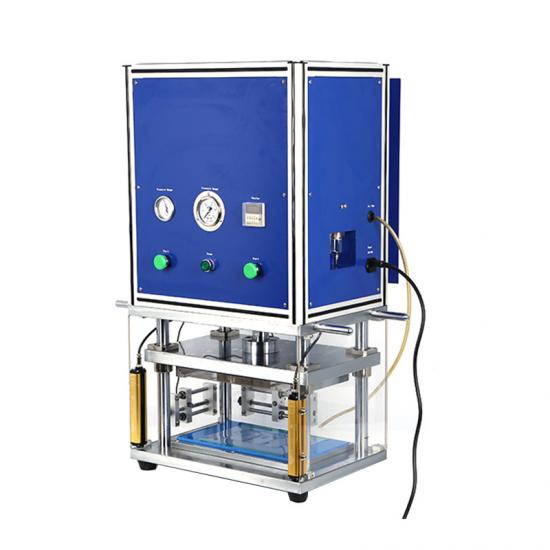

Li-ion Battery Die Cutting Machine for Pouch Cell Electrode Punching

This battery electrode die cutter machine is mainly used for pouch cell electrode sheet cutting for stacking pouch cell battery.
  • Item NO.:

    AOT-DC-300
  • Lead Time:

    5-15days
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen, China
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

Li-ion Battery Die Cutting Machine for Pouch Cell Electrode Punching

Introduction:

This Semi-automatic electrode die cutter machine is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

It adopts Safety curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front. High speed, high accuracy, long lifetime to make ready electrode without burr, to get a good consistency.

Features:

1. Replacement of die cutter is convenient, quick, consumable (die cutter is life about 30000 times).

2. Manual and continuous feeding, automatic discharging, and can automatically separate waste;

3. No quality defects such as burrs, off powder, indentation;

4. Between manual and automatic, high efficiency, 800-2000 / per hour.

5. Simple operation, safe and reliable, beautiful appearance, small size.

Specifications:

Model

Battery Electrode Die Cutter Machine AOT-DC-300

Work voltage

AC110V/220V, 50/60HZ

Power

100W

Warranty

One year limited warranty with lifetime support

Max cutter die size

300mm(L) * 200mm(W)

Die Set Dimensions

One set of standard electrode die is included.within the dimensions:

200mm(L) *300mm(W) Customized size die is available upon request

Safety Protection

Built in Safety Curtain to protect against hand injures during electrode feeding

Double start press button

Cutting Accuracy

±0.1mm

Air Cylinder

3 tons Max. pressure

Tensile Cylinder

0.15 tons pressure

Cutting stroke

250mm

Feeding

Manually

Production Yield

800 - 2000 pieces of electrodes per hour

Air Pressure

0.5-0.8Mpa

Dimension

(L*W*H)

650*550* 900mm

Net Weight

160kg

Electrode Die Cutting Machine

Lithium Battery Die Cutting Machine for Electrode Punching

Battery Electrode Die Cutter Machine for Pouch Cell
