Battery Slurry Resistance Analyzer Tester
Product Name
Battery Slurry Resistance Tester
Model
AOT-BSR2300
Resistivity measurement range
2.5Ω*cm-50mΩ*cm
Resistivity measurement resolution
0.01μS/cm
Resistivity measurement accuracy
±0.5%
Voltage
220-240V
Voltage variation tolerance
±10%
Power
＜80W
Environmental temperature
0-40℃
Environmental humidity
＜80%RH
Net wet
5kg
Dimension
W210*D300*H120 mm
AOT-BSR2300 use the upper, middle and lower three pairs of electrodes to test the resistivity of the slurry at different vertical heights, evaluate the conductivity of different formulations of slurry and the settlement performance with the standing time.
Mainly used for material evaluation, formulation evaluation, and sedimentation performance evaluation of positive and negative electrode slurries and conductive agent slurries for lithium (sodium) batteries.
Test steps: Putting a certain volume of slurry (~80mL) into the measuring glass, inserting a clean electrode pen, start the software, start to test the changes in the slurry resistivity at the three pairs of electrodes over time and save it in the file.
Test parameters: Resistivity, Temperature, Time

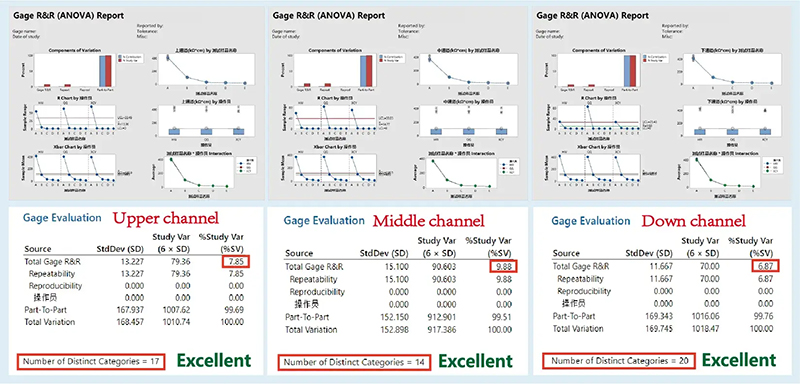

Test program: Three operators, five parallelsamples, and random testing
Test method: Sonicating the electrode pen withdeionized water for 30 seconds,and drying it with the dust-freepaper. Then five parallel sampleswas tested, and the fifth set of datawas taken for the GRR analysis.
