The theoretical capacity of lithium iron manganese phosphate is 170mAh/g, which is the same as that of lithium iron phosphate, but its electrode potential relative to Li+/Li is 4.1V, which is much higher than the 3.4V of lithium iron phosphate, and it is located in the stable electricity of the organic electrolyte system. Chemistry window. The high potential of 4.1V gives lithium iron manganese phosphate the potential advantage of high energy density, which is the biggest advantage over lithium iron phosphate. In addition, the raw material cost of lithium iron manganese phosphate is low, environmentally friendly, and the material has a broad market prospect.
Item
Specification
Typical Value
Unit
Testing Method
Appearance

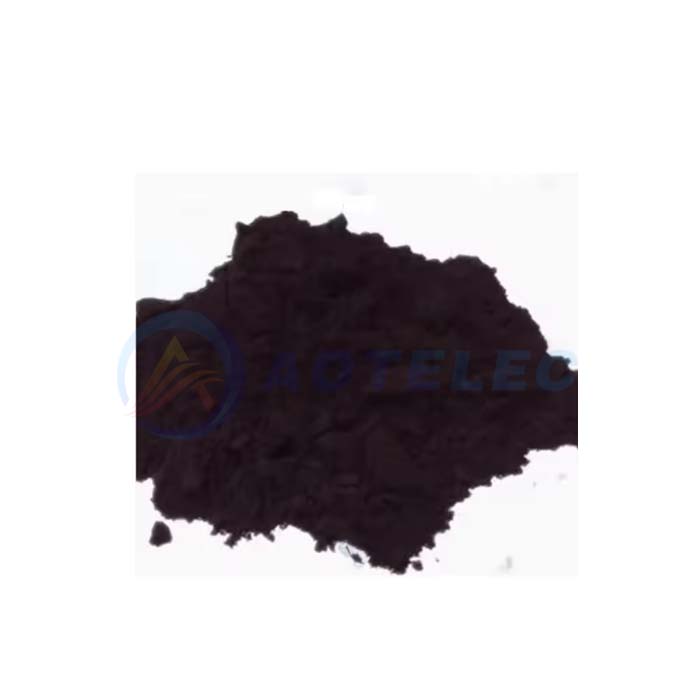

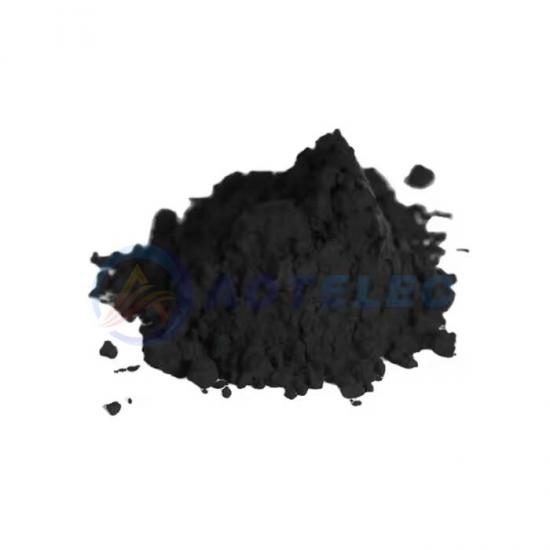

Gray - black powder, uniform color, no agglomeration
Initial Discharge Capacity
≥150
153
mAh/g
Half - cell, 0.2C, voltage range 2.5V - 4.5V
Initial Efficiency
≥90
93
%
Particle Size Distribution
D10
≥0.08
0.14
um
Laser Particle Size Analyzer
D50
0.4~ 1.5
1.15
um
D90
< 15.0
4.85
um
Tapped Density
≥0.4
0.55
g/m3
Tapped Density Meter
Carbon Content
1.6~2.2
2.0
%
Infrared High - Frequency Carbon - Sulfur Analyzer
Specific Surface Area
14.0~ 18.0
16.7
m2/g
Specific Surface Area Analyzer
Moisture
< 1000
780
ppm
Karl Fischer Moisture Meter
Magnetic Substances
≤1
0.086
ppm
ICP Test
Lithium Content
4.3±0.5
4.1
%
ICP (Reference Value)
Iron Content
13.5±1.5
13.3
%
Manganese Content
20.0±2.0
19.7
%
Phosphorus Content
19.5±1.5
18.9
%
Manganese: Iron
6：4
Storage and Shelf Life
Sealed and dry storage (-35° dew point standard), shelf life 12 months
