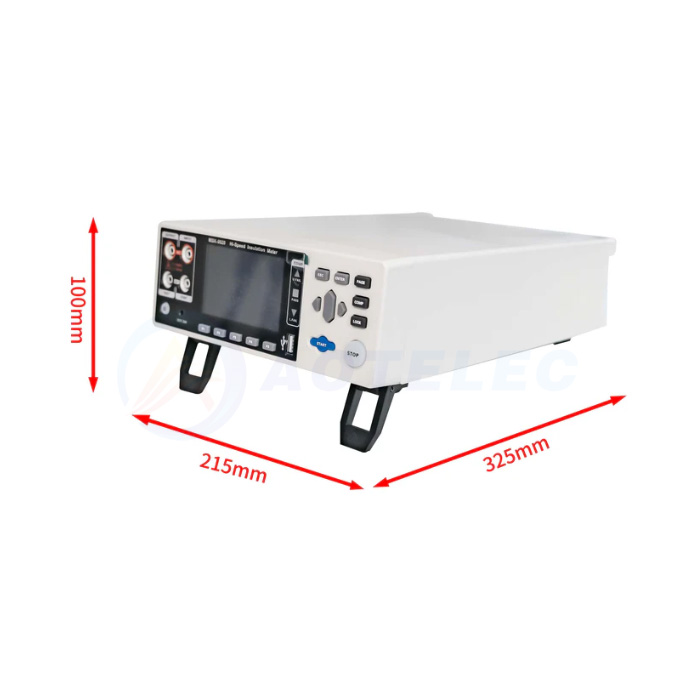

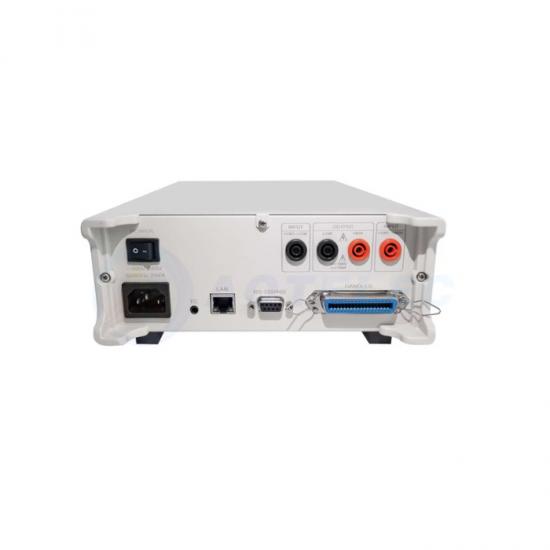

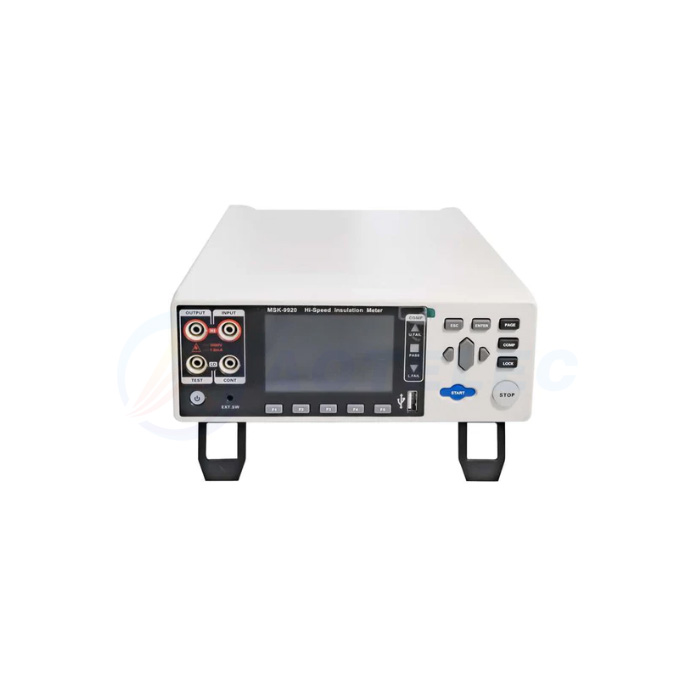

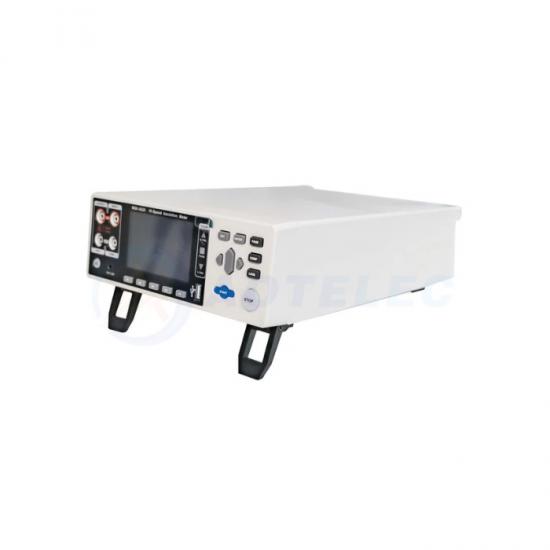

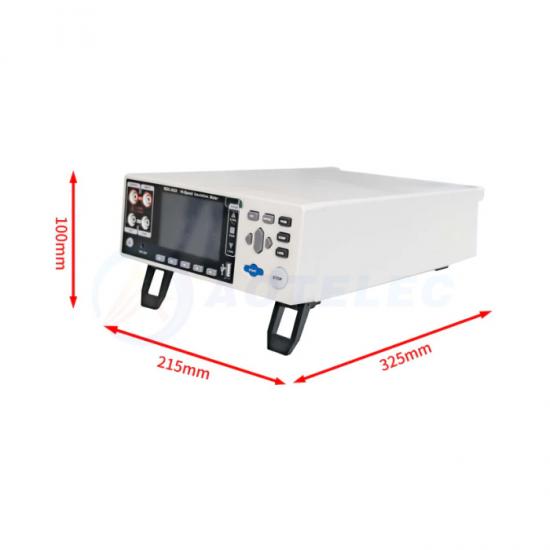

AOT-MSK-9920 is a high-performance insulation resistance tester used to test the insulation resistance of components and devices. It has contact fault detection and short circuit fault test functions. The fastest test time is up to 50 milliseconds.
|
Features |
·35-inch high-resolution TFT screen for simple operation · Maximum constant current output: 1.8mA · Minimum test cycle: 50 milliseconds · Able to detect test line or contact abnormalities · Effectively detect short circuit conditions · Automatically discharge after the test · NPN or PNP interface can be configured |
|
Voltage |
· AC 110-230V, 50/60Hz |
|
Power |
· 15W |
|
Testing Voltage |
· DC 10 ~ 1000 V |
|
Testing Range |
· 0 ~ 4000 MΩ (Total 5 scales) |
|
Maximum Output Current |
· 1.8 mA |
|
Maximum Discharge Current |
· 1.2 mA (Constant current discharge) |
|
Trigger |
· IO trigger, manual trigger, bus trigger |
|
Testing Speed |
· High Speed: 50 ms · Low Speed: 500 ms |
|
Data Saving |
· 10 sets of data can be recorded |
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
