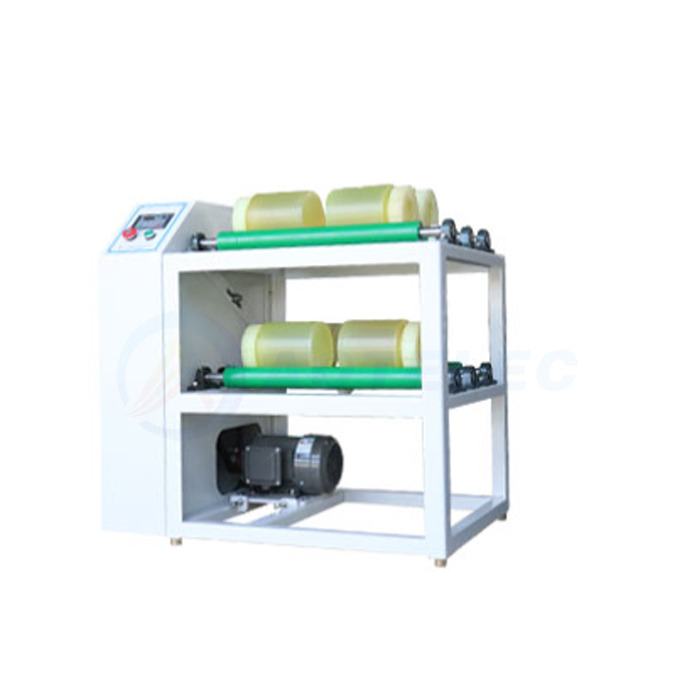

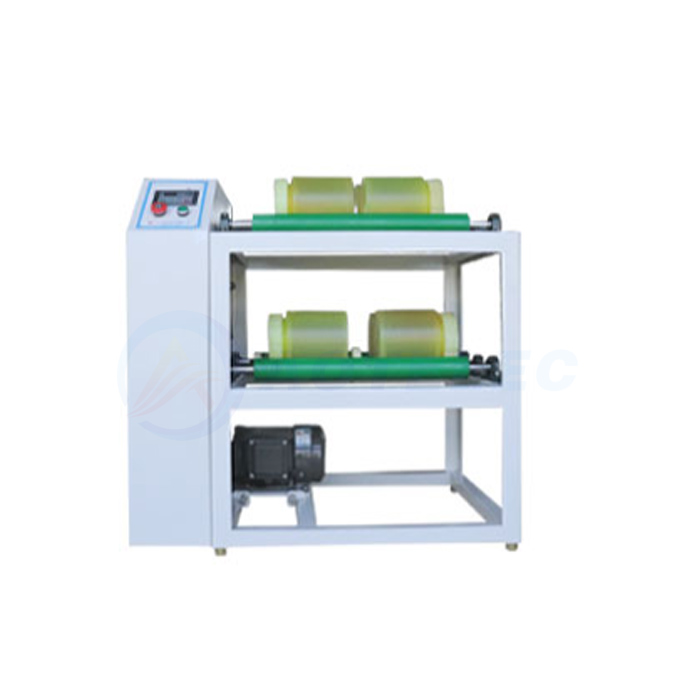

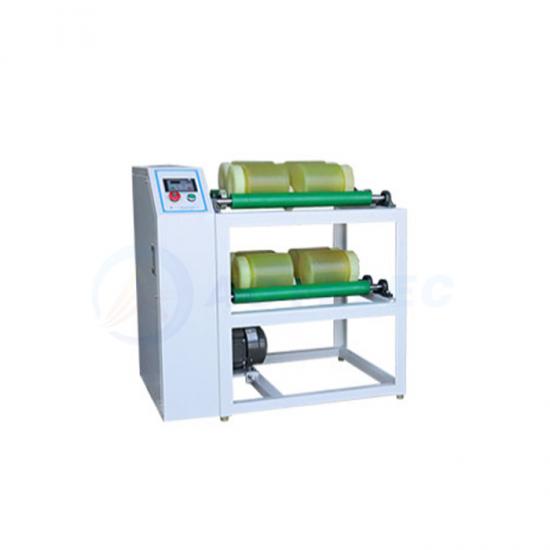

2- 8 Workstation Lab Jar Ball Mill Machine for Ultra-fine Grinding and Mixing

Lab jar mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling mill with more than two working positions.

Item NO.:
AOT-GQM-8-5
Lead Time:
15-20
Product Orgin:
china
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

Lab jar mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling mill with more than two working positions. The machine is preferred equipment for scientific research, education, experiment and production due to its advantage such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic materials, magnetic materials, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc. Optimal design of rotating speed is adopted in the machine. Mill jar is dragged to rotate by rubber roller and balls inside the jar make incline flow movement and disperse materials. Thus it obtains best effects of grinding. As a result, materials are ground to micro powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, so that you may set working time according to requirement at any time. It not only saves time and labor, but is easy for operation.

1.Parameters of the two-position tank grinder

Model	AOT-GQM-2-5	AOT-GQM-2-15	AOT-GQM-2-20
Overall Dimensions/Weight	950X480X685/59KG	1130X550X690/80KG	1350X650X690/92KG
Motor Model/Power	YE2-80M2-4B3 / 0.75KW	YE2-90S-4B3 / 1.1KW	YE2-90L-4B3 / 1.5KW
Normal Power Supply	220V, 50/60HZ	220V, 50/60HZ	220V, 50/60HZ
Main Roller Speed (rpm)	50 - 410±10	40 - 365±10	40 - 340±10
Hand Crank Device	Optional	Optional	Optional
Protective Cover	Optional	Optional	Optional

2.Parameters of the four-position drum grinder

Model	AOT-GQM-4-5	AOT-GQM-4-5 (Double - layer)	AOT-GQM-4-15	AOT-GQM-4-20
Overall Dimensions/Weight	950X660X690/70KG	950X480X870/(92KG)	1130X800X690/95KG	1350X820X690/122KG
Motor Model/Power	YE2-80M2-4B3 / 0.75KW	YE2-80M2-4B3 / 0.75KW	YE2-90L-4B3 / 1.5KW	YE2-100L1-4B3 / 2.2KW
Normal Power Supply	220V, 50/60HZ	220V, 50/60HZ	220V, 50/60HZ	380V, 50/60HZ
Main Roller Speed (rpm)	50 - 410±10	50 - 410±10	40 - 365±10	40 - 340±10
Hand - operated Device	Optional	Optional	Optional	Optional
Protective Cover	Optional	Optional	Optional	Optional

3.Parameters of the eight-position drum grinder

Model	AOT-GQM-8-5	AOT-GQM-8-15
Overall Dimensions/Weight	950X660X960/106KG	1130X800X960/152KG
Motor Model/Power	YE2-90L-4B3 / 1.5KW	YE2-100L1-4B3 / 2.2KW
Normal Power Supply	220V, 50/60HZ	380V, 50/60HZ
Main Roller Speed (rpm)	50 - 410±10	40 - 365±10
Hand - operated Device	Optional	/
Protective Cover	Optional	/

ball Mill Jar

rolling Ball Mil
