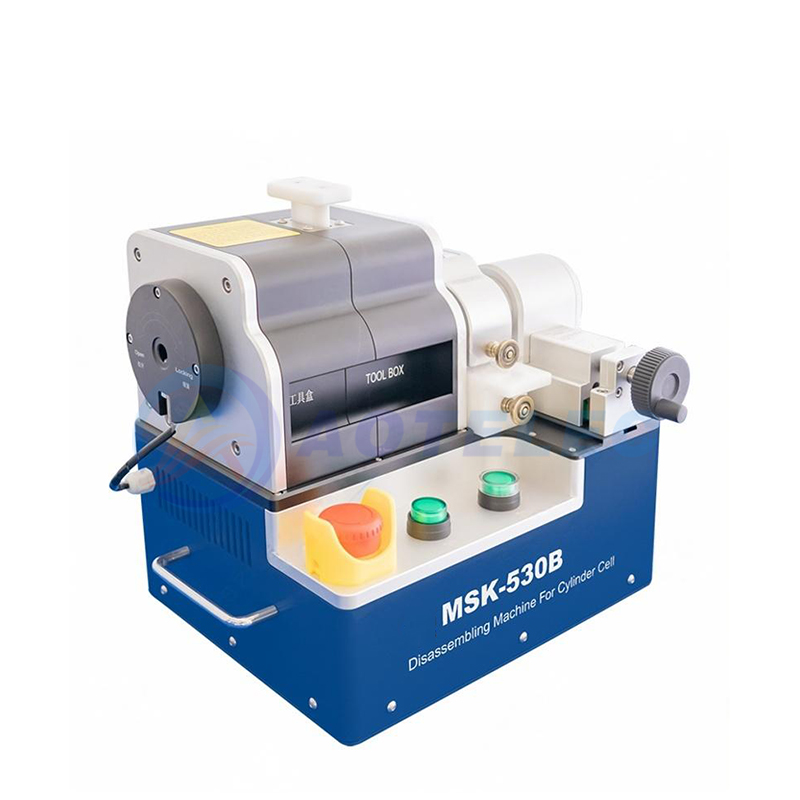

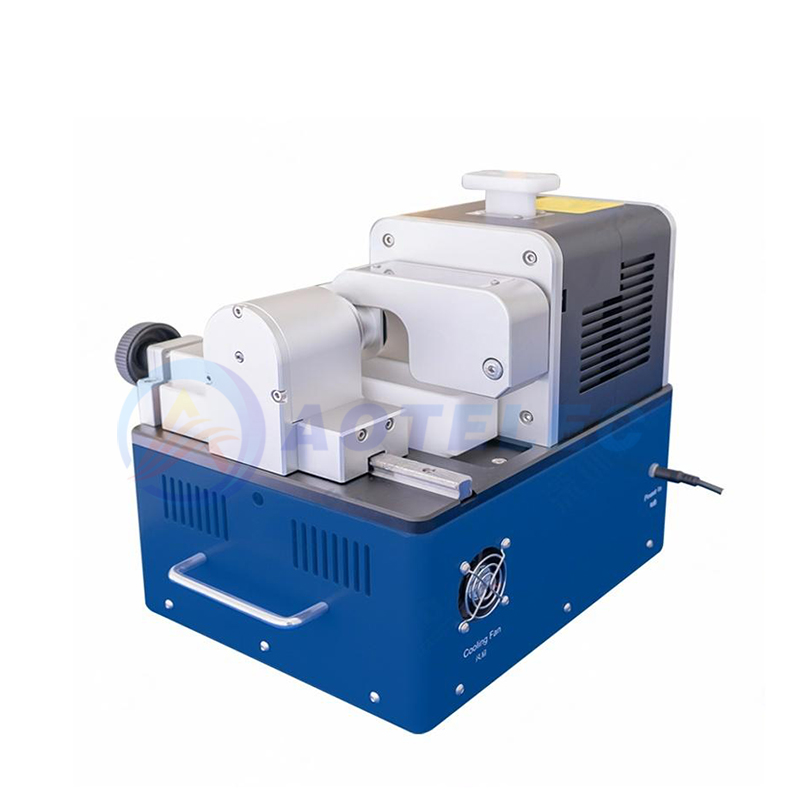

MSK-530B cylindrical battery disassembling machine is a specialized machine designed for laboratory analysis of the internal state of cylindrical batteries. Different specifications of molds can be selected to disassemble cylindrical batteries of different models. Max: Diameter 50mm x Length 100mm; Min: Diameter 5mm x Length 40mm; This device uses a tungsten steel saw blade to cut the battery case and remove the battery cells; The burr on the cutting position is less than 0.1mm.
Advantage:
Anatomy of saw blade rotation method, smooth cutting edge, stable cutting, and small burrs;
The disassembly and replacement of cylindrical batteries of different models with corresponding molds is convenient and fast;
Compact and lightweight, suitable for use in argon gas environments;
The whole machine is flexible and convenient to use, with a protective cover designed for safe and reliable operation;
It can be used inside a glove box transition compartment with a diameter of ≥ 390mm.
Technical Parameter:
|
Product Name |
Battery Disassembling Cutter |
|
Model |
MSK-530B |
|
Power Supply |
Single-phase AC110-20V ± 10%, frequency 50/60Hz, power 120W |
|
Knife Speed |
750rpm |
|
Mold Speed: |
140rpm |
|
Shell Cutting Saw Blade Material |
Tungsten steel |
|
Specification |
D50 * d12.7 * T0.2mm/128 teeth |
|
Mold |
Standard 18650, customizable: Max: diameter 50mm x length 100mm; Min: diameter 5mm x length 40mm |
|

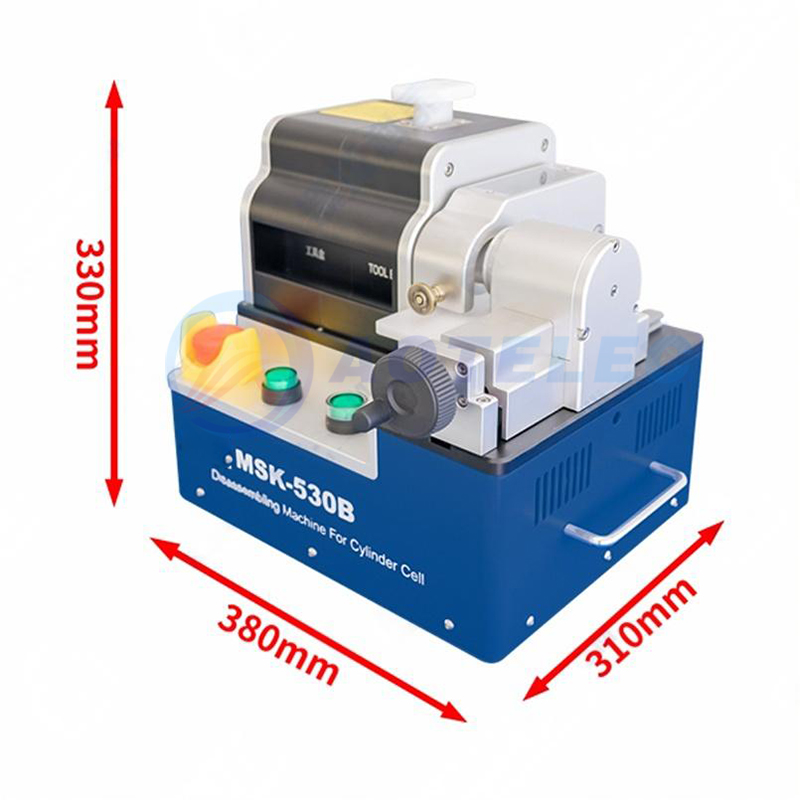

Equipment size |
L380 * W310 * H330mm |
|
Weight |
19kg |
